POWERTECH

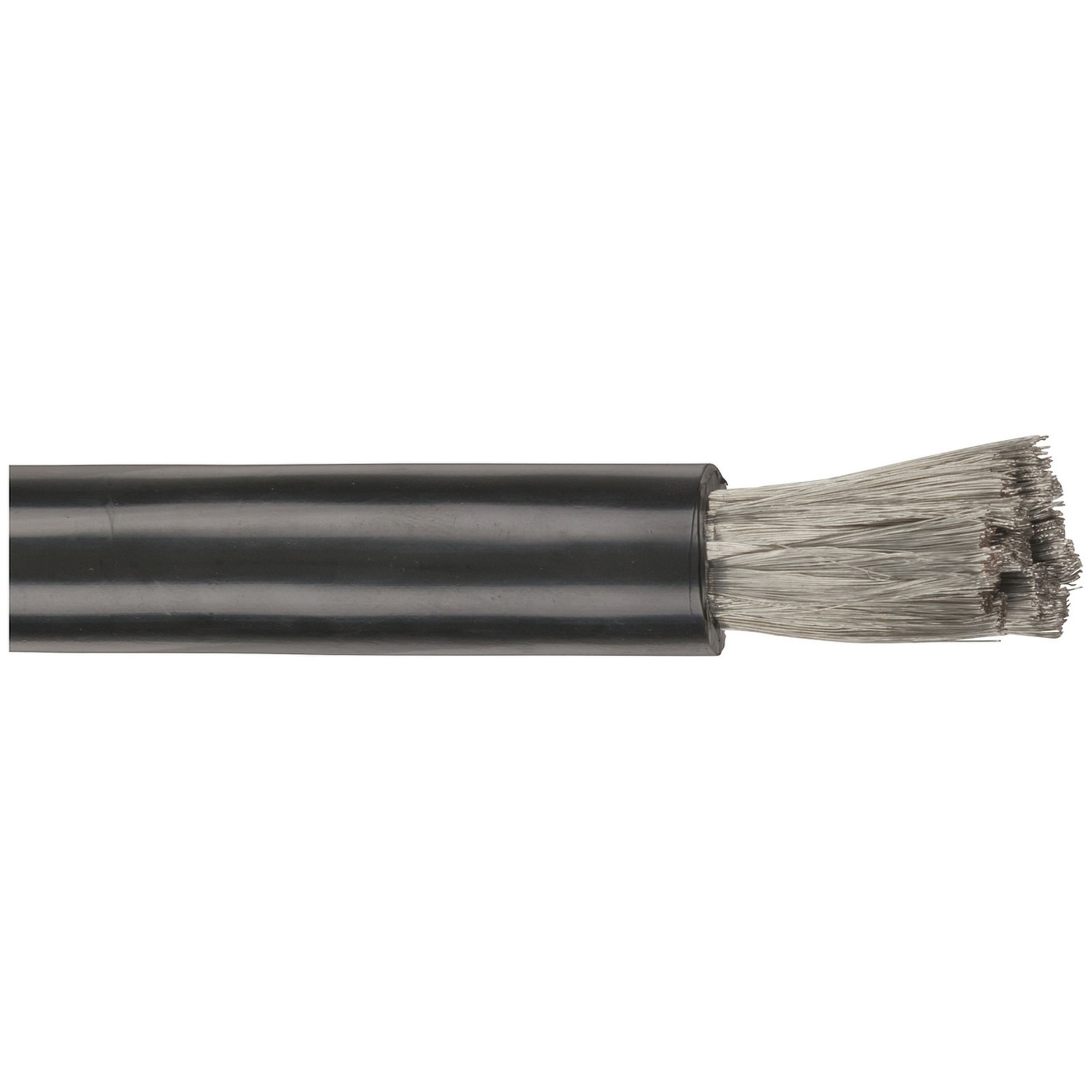

0 Gauge Mega High Current OFC Power Cable - Black - Sold as 25m roll
- Cat No:
- WH3094
Sold as:Roll (25 Metre)
In Stock$36.95
Description
Run from your battery to distribution blocks and then 2 AWG, 4 AWG or 8 AWG to your amplifiers or other power equipment for seriously high current applications.
• Conductor material: OFC
• Insulation material: PVC
Rated to 240A Peak, 200A Constant
Red AWG 0 cable Cat No. WH3092
Black AWG 0 cable Cat No. WH3094
Specifications
- Wire Category
- Hook up / power
- Retail Sales Unit
- Metre
- Roll Length
- 25.0m
- AWG
- 0.0
- Cross Sectional Area
- 44.9mm²
- Outer Diameter
- 15.0mm
- Conductor Overall Diameter
- 8.7mm
- Individual Conductor Strand Diameter
- 0.12mm
- Number of Conductor Strands
- 3.0pc
- Strand Weave Configuration
- 7 x 7 x 81
- Resistance per Linear Metre
- 0.35mΩ
- Core Material
- Tin Plated Copper
- Number of Conductor Cores
- 1.0pc
- Colour
- Black
- Operating Temperature
- -10.0°C-90.0°C
- DC current rating
- 195.0A
- Wire Category
- Mega High Power
- AWG
- 0.0
- Outer Diameter
- 15.0mm
- Conductor Overall Diameter
- 8.7mm
- Number of Conductor Strands
- 4655.0
- Core Material
- Tinned Copper
- Resistance per Linear Metre
- 0.35 mΩ
- Retail Sales Unit
- Metre
- Roll Length
- 25m
- Insulation Material
- PVC
- Cable length
- 25.0m
- Packaged Dimensions
- 100.0cm(Length) x 1.6cm(Width) x 1.6cm(Height)
