POWERTECH

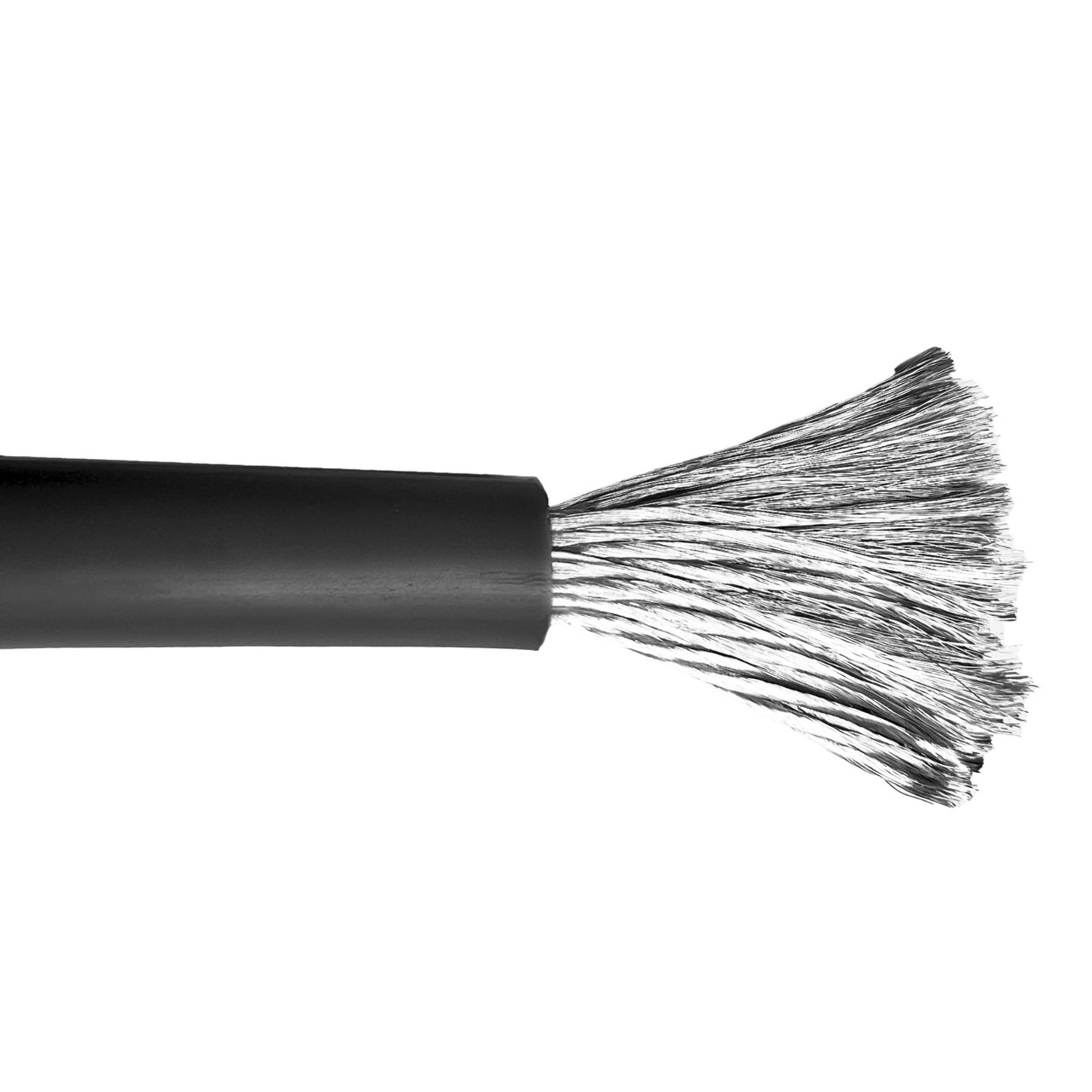

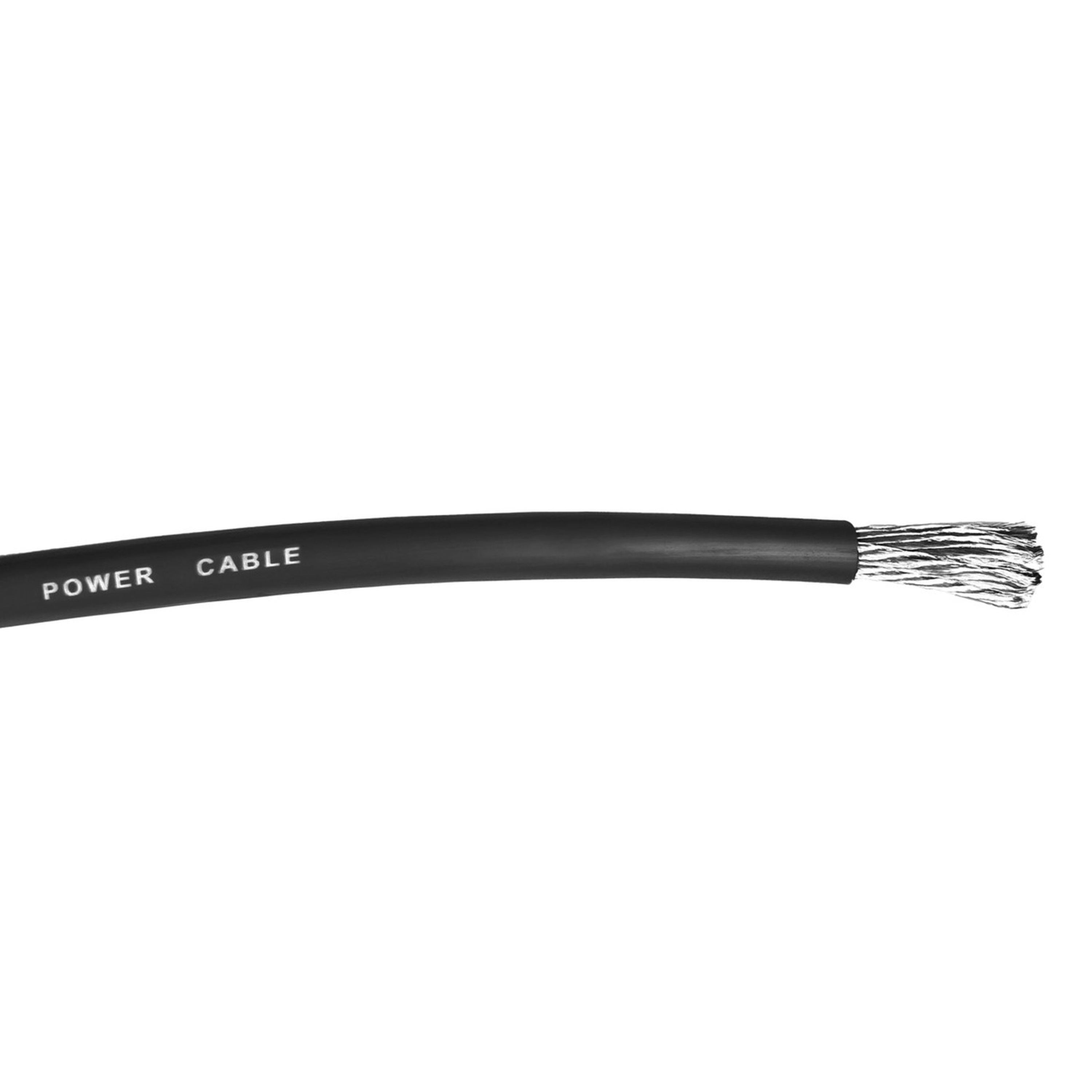

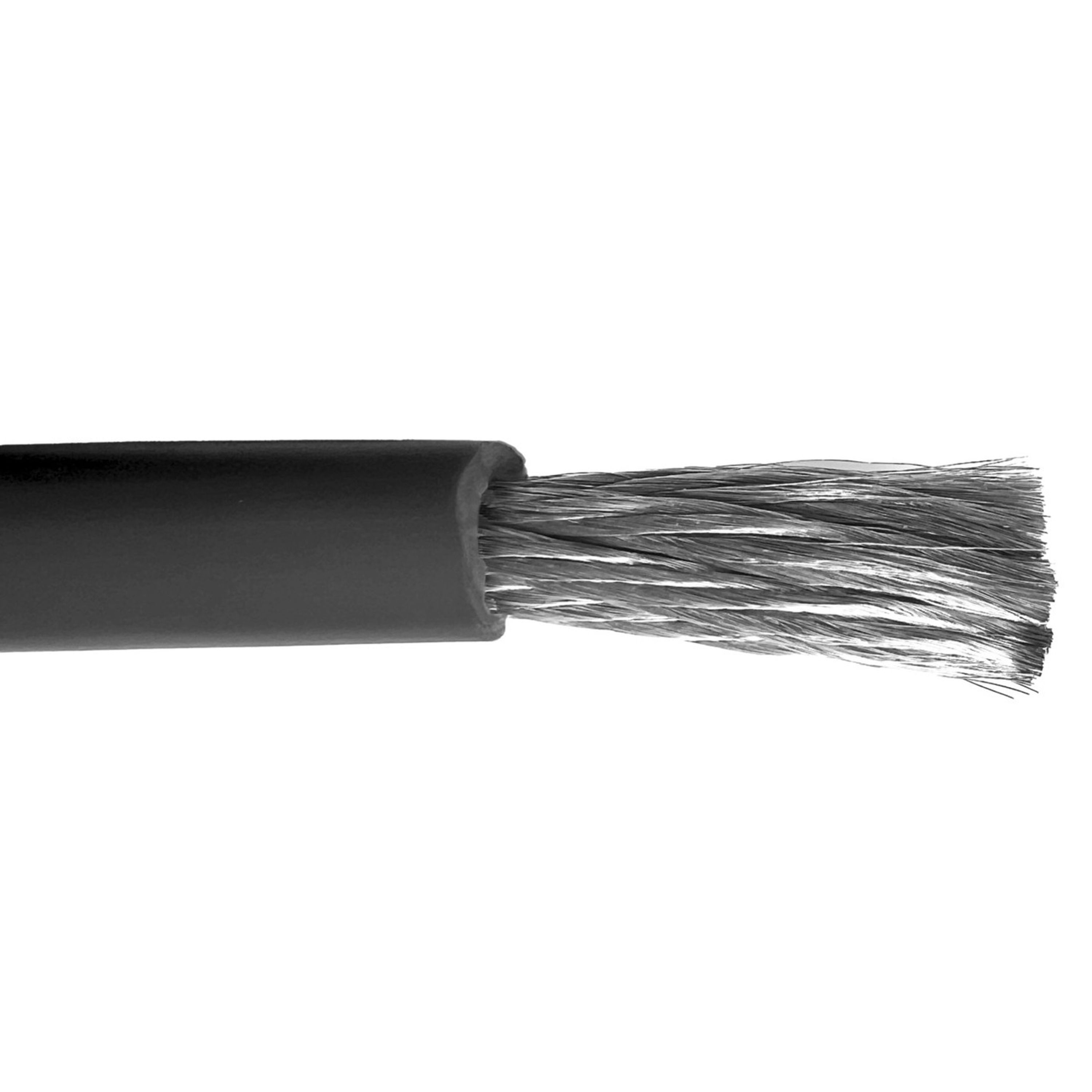

00 Gauge Ultra High Current OFC Power cable - Black - Sold as 20m roll
- Cat No:
- WH3098
Sold as:Roll (20 Metre)
In Stock$59.95
Description
The 2/0G OFC cable is designed for heavy-duty applications and is commonly used in automotive, industrial, and marine settings. Use it for inverters, RV systems, and larger solar panels where that high current draw is needed. Sold by the metre, comes in red or black.
Rated to DC 300A Peak, 260A Constant. 0.25 mΩ/M
Red AWG 2/0 OFC Cable: Cat No. WH3096
Black AWG 2/0 OFC Cable: Cat No. WH3098
Specifications
- Wire Category
- Hook up / power
- Retail Sales Unit
- Metre
- Roll Length
- 20.0m
- AWG
- 2/0
- Cross Sectional Area
- 59.8mm²
- Outer Diameter
- 16.5mm
- Conductor Overall Diameter
- 10.0mm
- Individual Conductor Strand Diameter
- 0.12mm
- Number of Conductor Strands
- 5.0pc
- Strand Weave Configuration
- 7x7x108
- Resistance per Linear Metre
- 0.25Ω
- Core Material
- Copper
- Number of Conductor Cores
- 1.0pc
- Operating Temperature
- -10.0°C-90.0°C
- DC current rating
- 260.0A
- Wire Category
- High Current OFC
- AWG
- 8.0
- Outer Diameter
- 6.5mm
- Conductor Overall Diameter
- 4.0mm
- Number of Conductor Strands
- 707.0
- Core Material
- Oxygen Free Copper
- Resistance per Linear Metre
- 2.4 mΩ
- Retail Sales Unit
- Metre
- Roll Length
- 50m
- Insulation Material
- PVC
- Cable length
- 20.0m
- Packaged Dimensions
- 2.0cm(Length) x 1.0cm(Width) x 1.0cm(Height)
