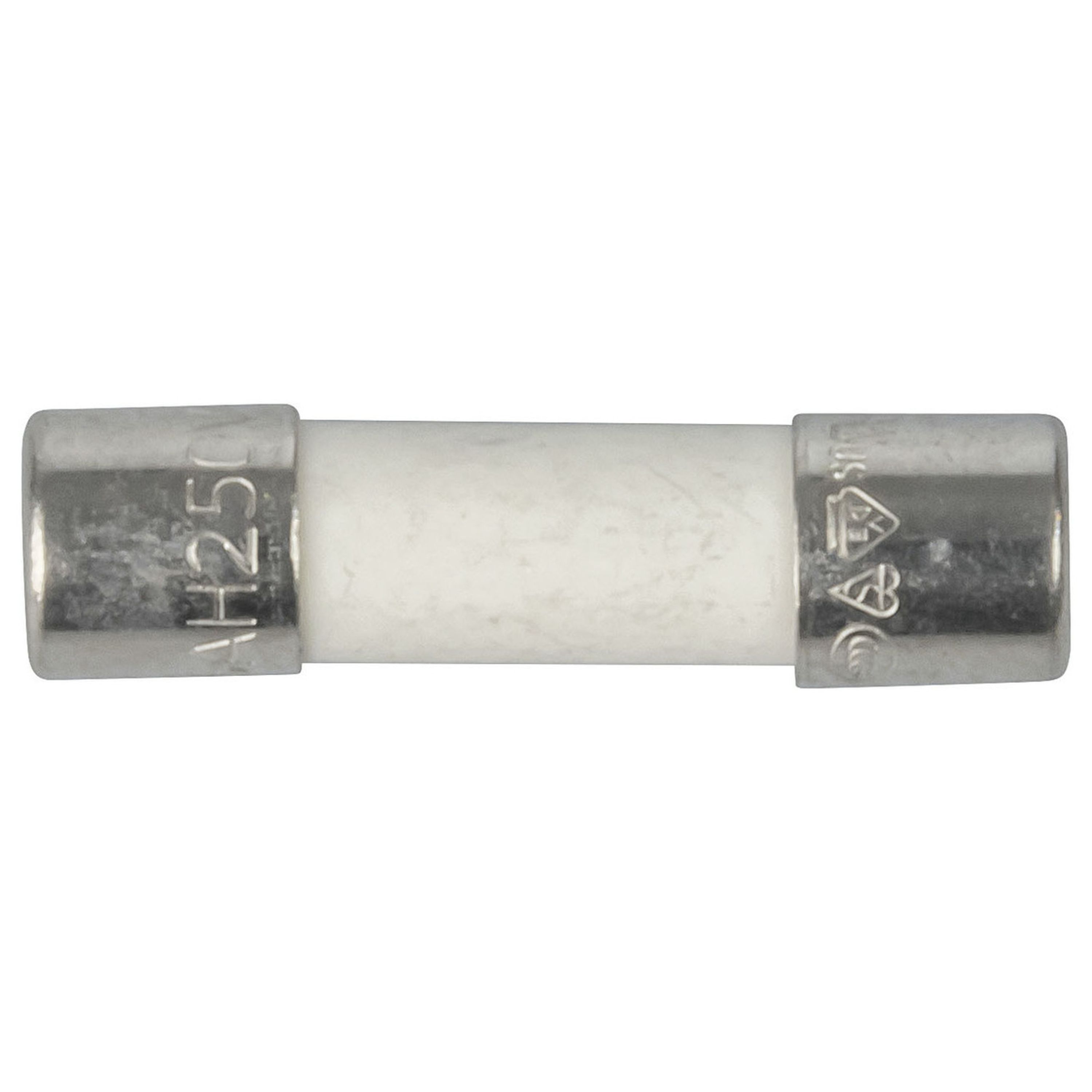

1.6A M205 Ceramic Slow Blow Fuse

Cat No:
SF2116
Sold as:1 Each
In Stock

$1.90

Description

A ceramic fuse offers better thermal and arc protection during a high current episode compared to a glass fuse with the same specifications. Sometimes marked with an S or T before the current rating (for example T3.15A), these delayed action fuses allow for a temporary current surge without going above the fuse's current rating. Because of this, time delay fuses are most commonly used in applications where a large momentary load is expected such as motors at start-up.

Specifications

Rated Current
1.6A
Fuse Type

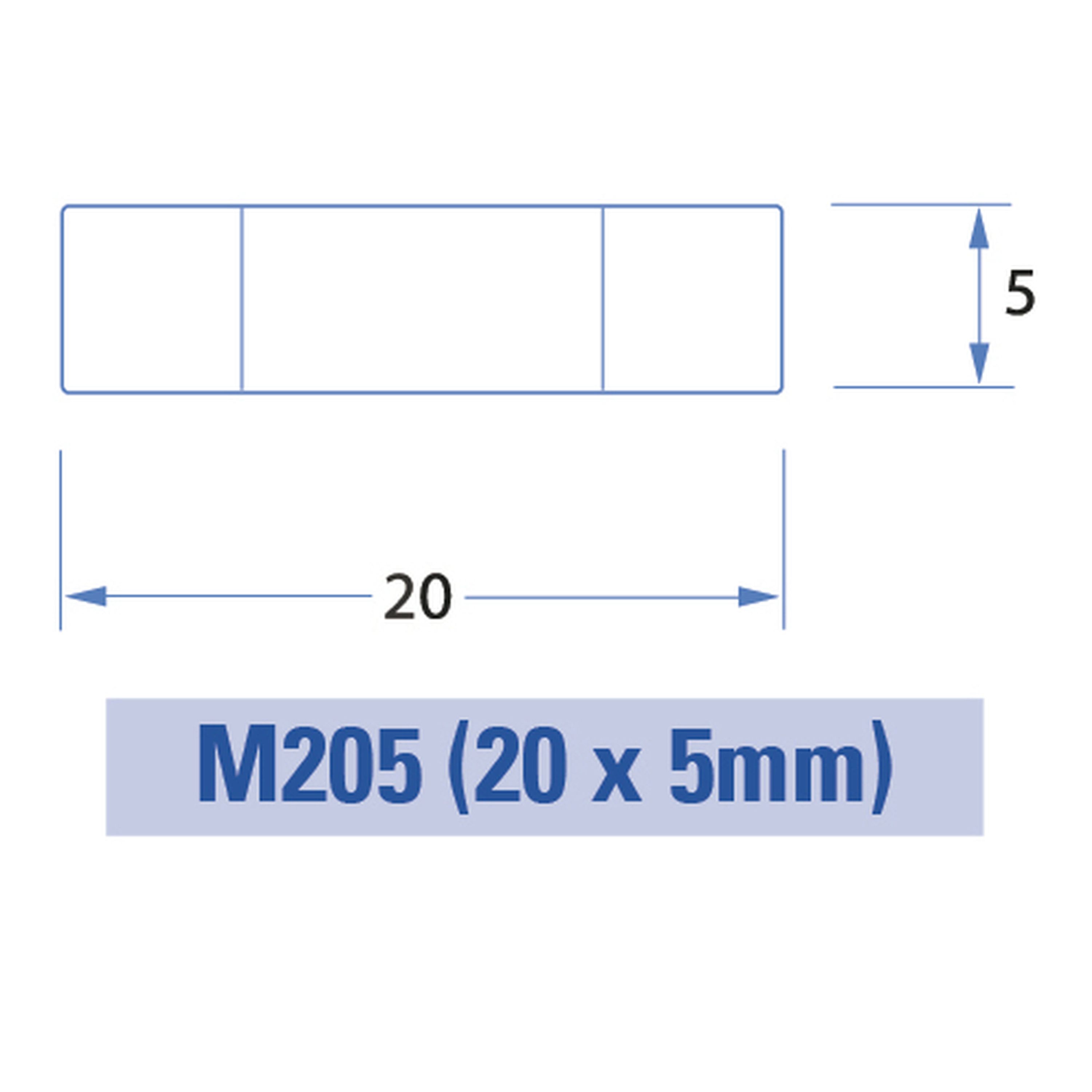

M205
Blow Speed
Slow blow
Case Material
Ceramic
Packaged Dimensions
0.5cm(Length) x 0.5cm(Width) x 2.0cm(Height)
