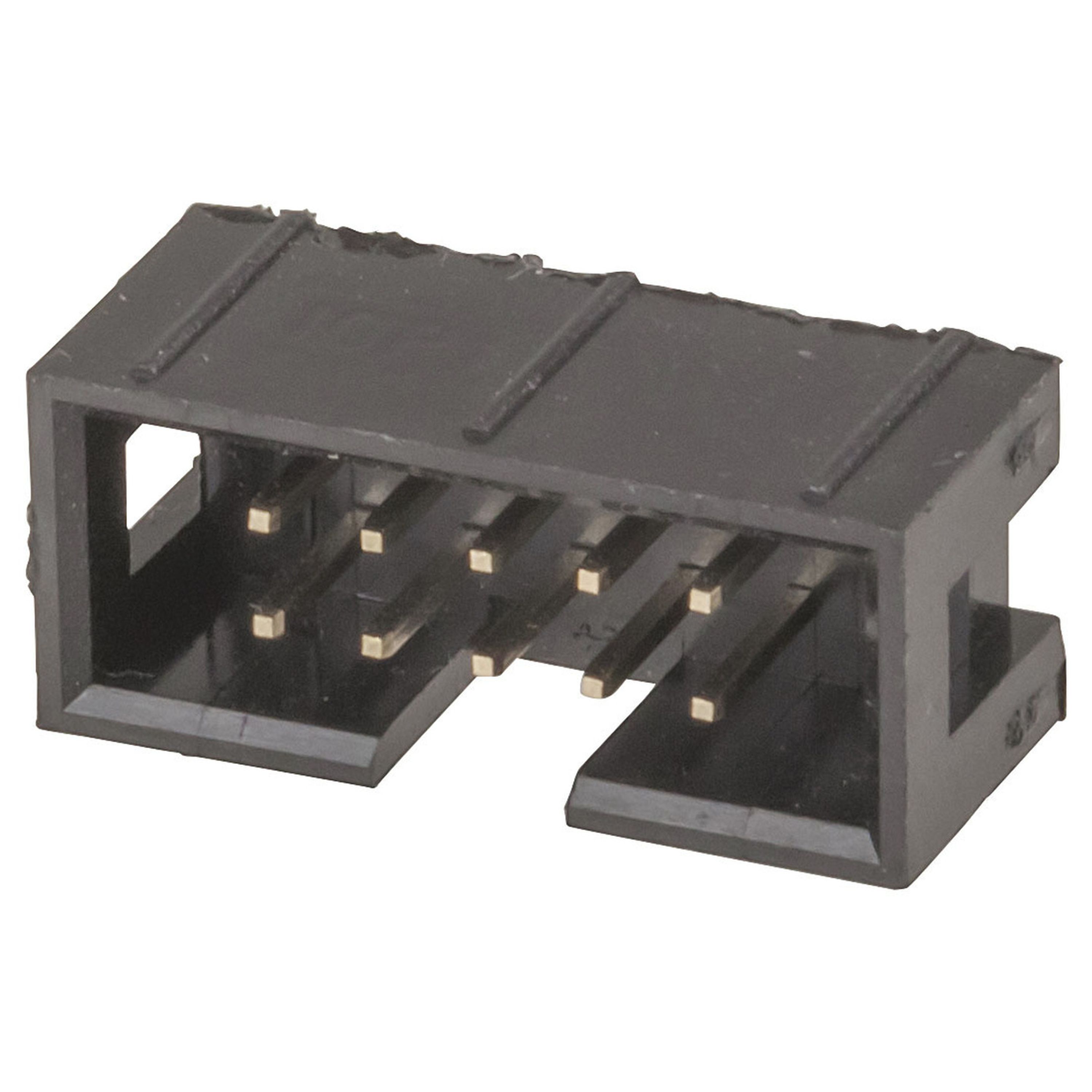

10 Pin IDC Vertical Header
- Cat No:
- PP1100
In Stock
$0.85
Description
Vertical PCB mounted 10 pin IDC plug.
Specifications
- Type
- Double Row Header
- Device
- Plug
- Attachment Method
- IDC
- Number of Pins
- 10.0pc
- Pin Spacing
- 2.54mm (0.1")
- Pin Material
- Gold Plated
- Type
- Double Row Header
- Pack Quantity
- 1 pc
- Number of Pins
- 10.0
- Pin Spacing
- 2.54mm
- Pin Size
- 0.64mm*
- Insulation Dielectic Voltage Rating
- 500V*
- Insulation Resistance
- 1000MΩ*
- Operating Temperature
- 105°C*
- Device
- Plug
- Attachment Method
- IDC
- Header Locking
- No
- Header Polarised
- Yes
- Mating Force
- 200g*

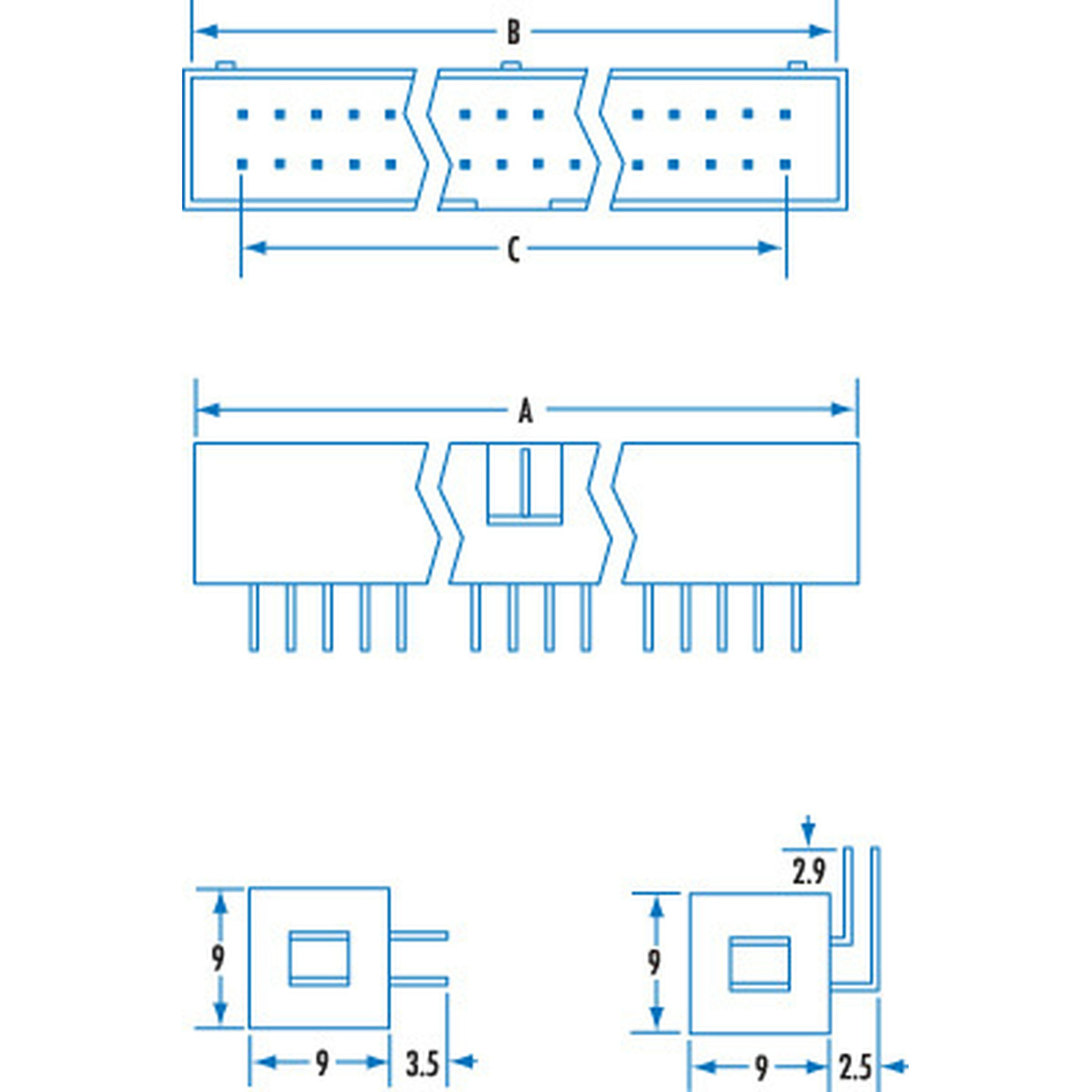

- Length
- 20.0mm
- Width
- 18.0mm
- Height
- 10.0mm
- Packaged Dimensions
- 1.2cm(Length) x 0.8cm(Width) x 2.0cm(Height)
