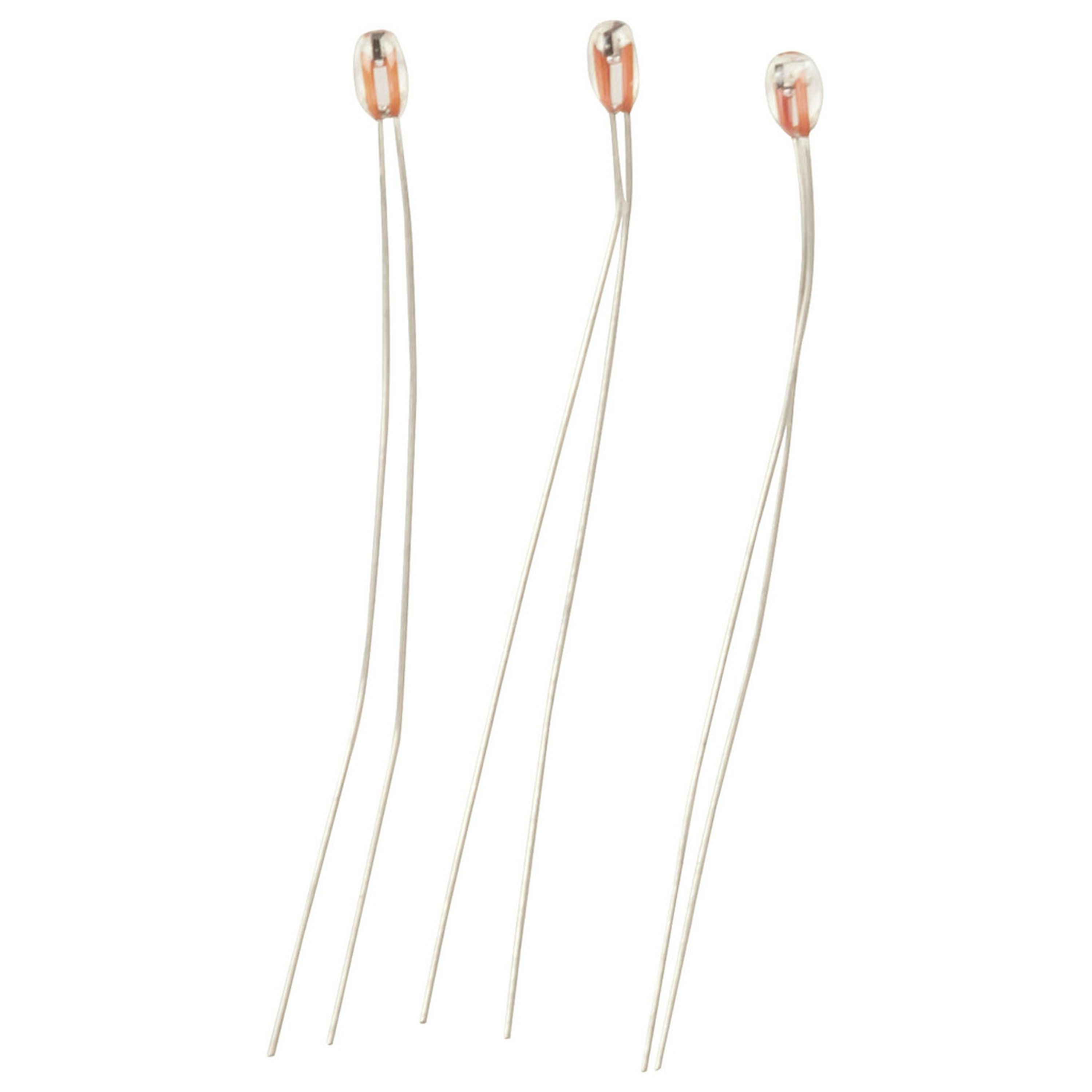

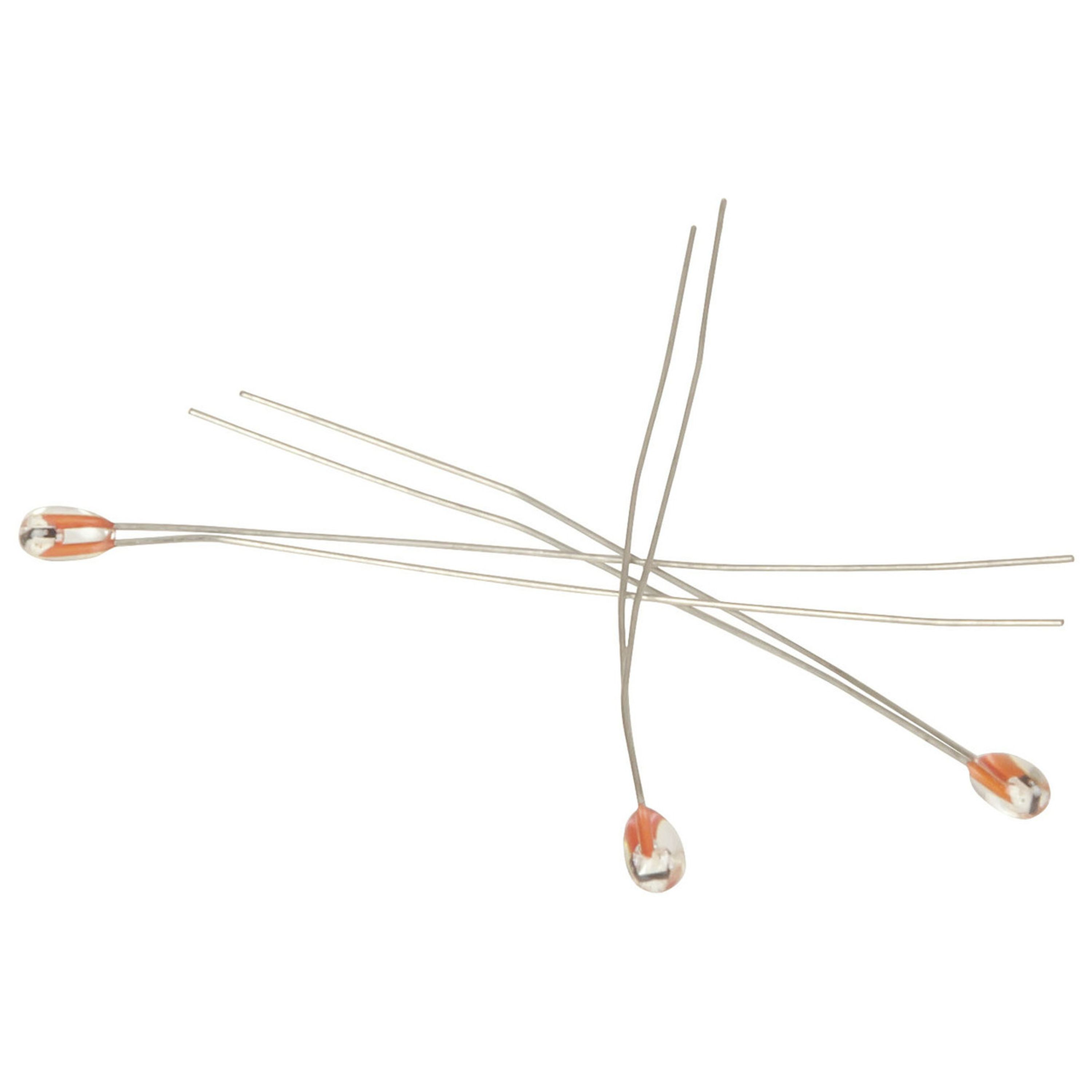

100kΩ Glass NTC Thermistor
- Cat No:
- RN3446
Sold as:1 Each
Out of Stock$4.95
Description
This high temperature NTC thermistor is suitable for operation up to 250 degrees, and is compatible with the hot-end thermistors used in many 3D printers.
Features:
Sealed glass body with small bead for fast response
Specifications
- Component Type
- Thermistor
- Pack Quantity
- 1.0pc
- Passive mount type
- Through Hole
- Passive connector type
- Solder Legs
- Passive number of legs
- 2.0 count
- Nominal Leg Length
- 30.0mm
- Temperature Coefficient
- Negative (NTC)
- Resistance
- 100.0kΩ
- Thermistor Temperature Range
- -40.0°C-250.0°C
- Thermal Dissipation Constant
- 1.0mW/°C
- Height
- 4.1mm
- Diameter
- 1.7mm
- Packaged Dimensions
- 3.0cm(Length) x 0.1cm(Width) x 0.1cm(Height)
