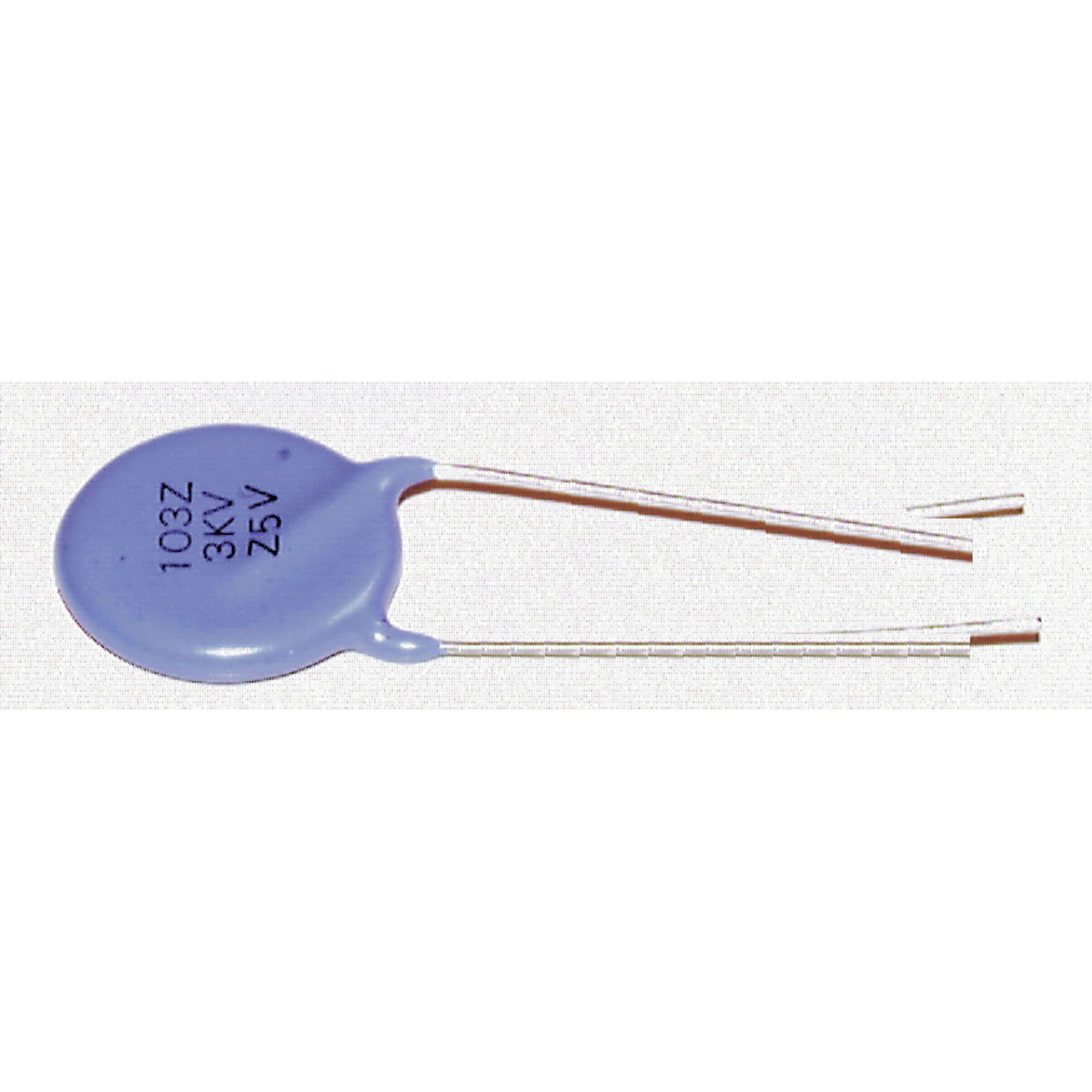

10nF 3kVDC Ceramic Capacitor
- Cat No:
- RC5380
- MPN:
- TS16-Y5V-10N
In Stock
$2.95
Description
A ceramic capactior is a fixed-value capactior in which ceramic material acts as the dielectric. It is constructed of two or more alternating layers of ceramic and a metal layer acting as the electrodes. The composition of the ceramic material defines the electrical behavior and therefore applications. Ceramic capacitors can be used as a general purpose capacitor, since they are not polarized and are available in a lare variety of capacitances, voltage ratings and sizes.
Specifications
- Capacitor type
- Ceramic
- Polarised Capacitor
- false
- Component Type
- Ceramic Capacitor
- Pack Quantity
- 1.0pc
- Passive mount type
- Through Hole
- Passive connector type
- Solder Legs
- Component package
- Disc
- Passive number of legs
- 2.0 count
- Passive marking code
- Number code
- DC Voltage
- 3.0kV
- Item capacitance
- 10.0nF
- Capacitance tolerance
- 5.0%
- Packaged Dimensions
- 1.2cm(Length) x 0.2cm(Width) x 3.9cm(Height)
