POWERTECH

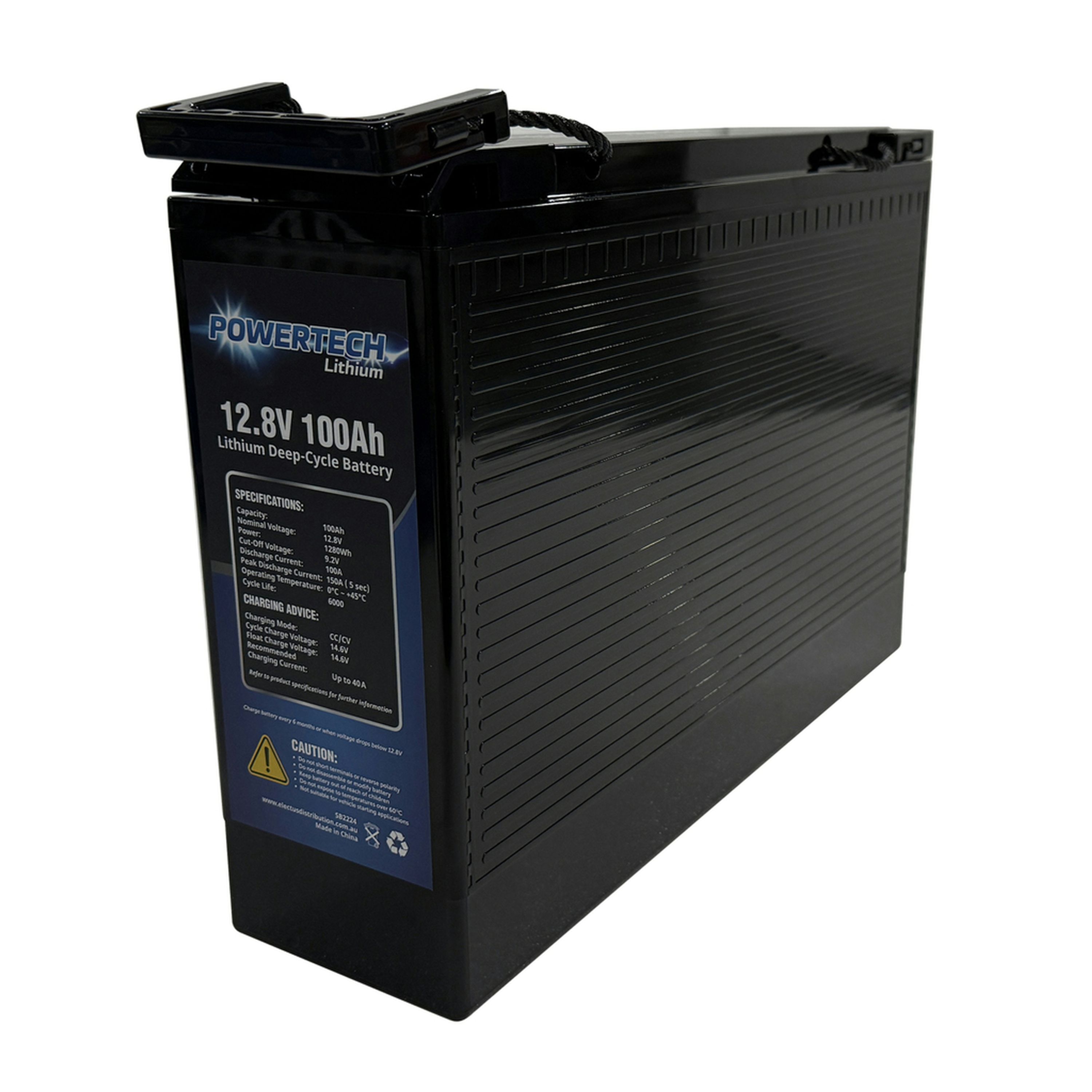

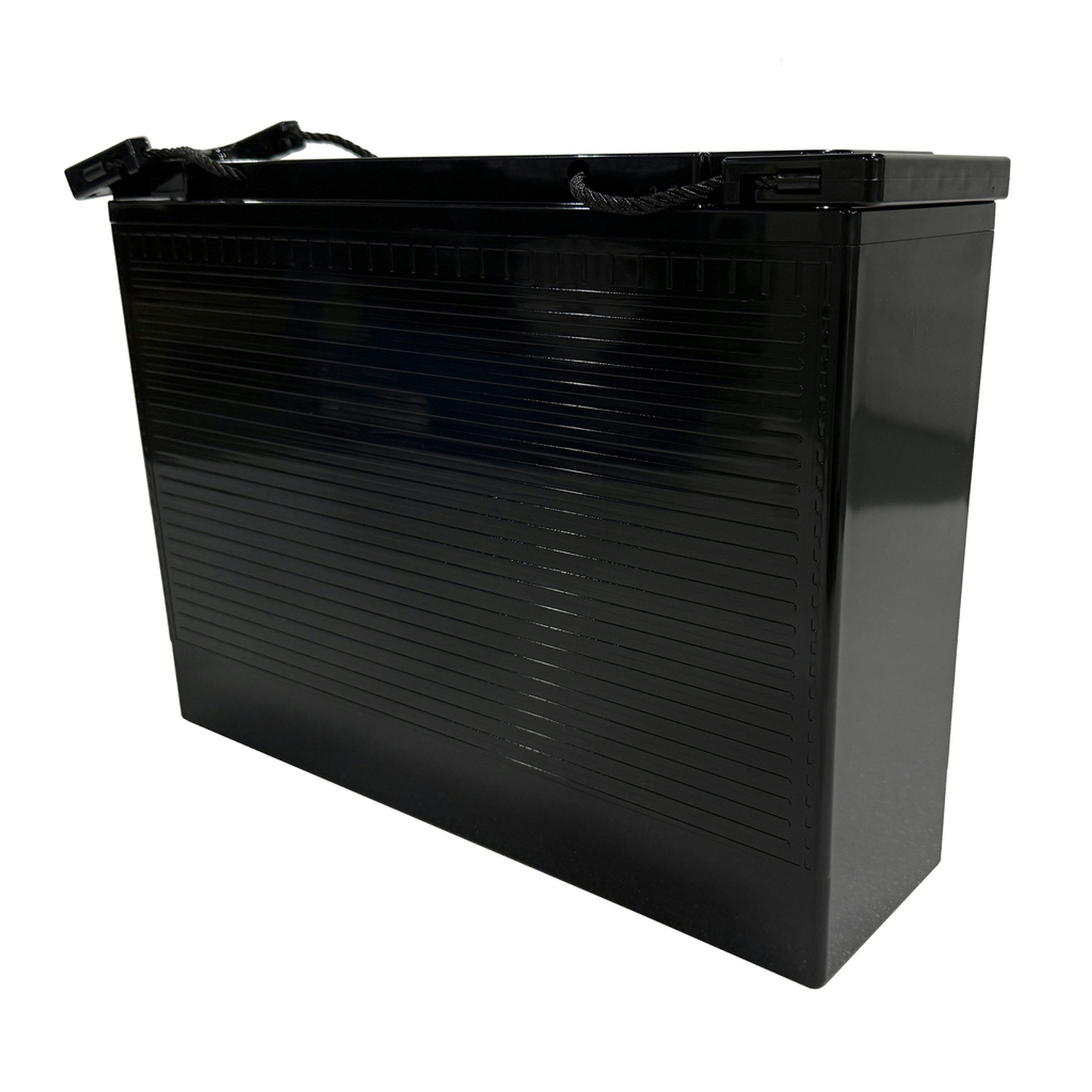

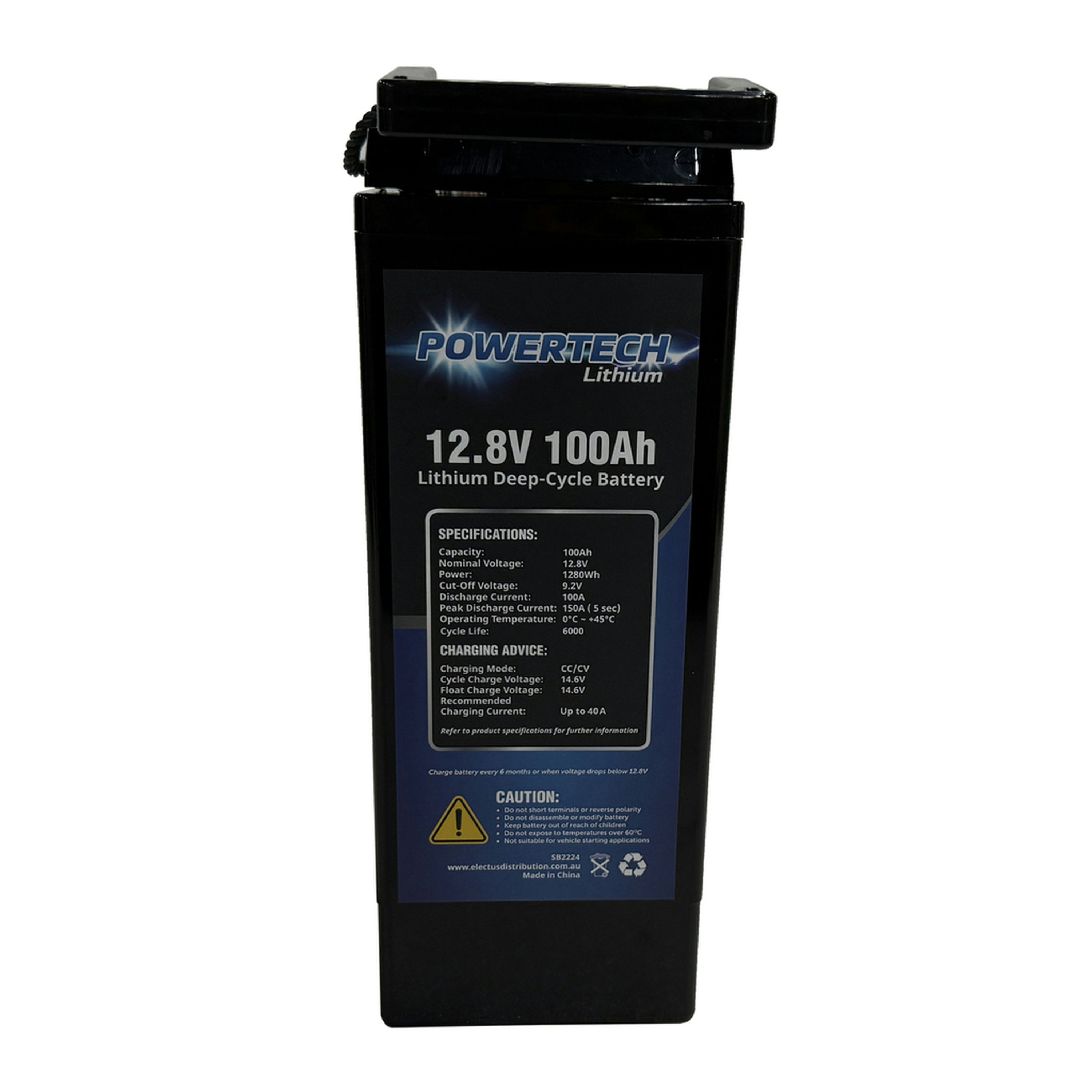

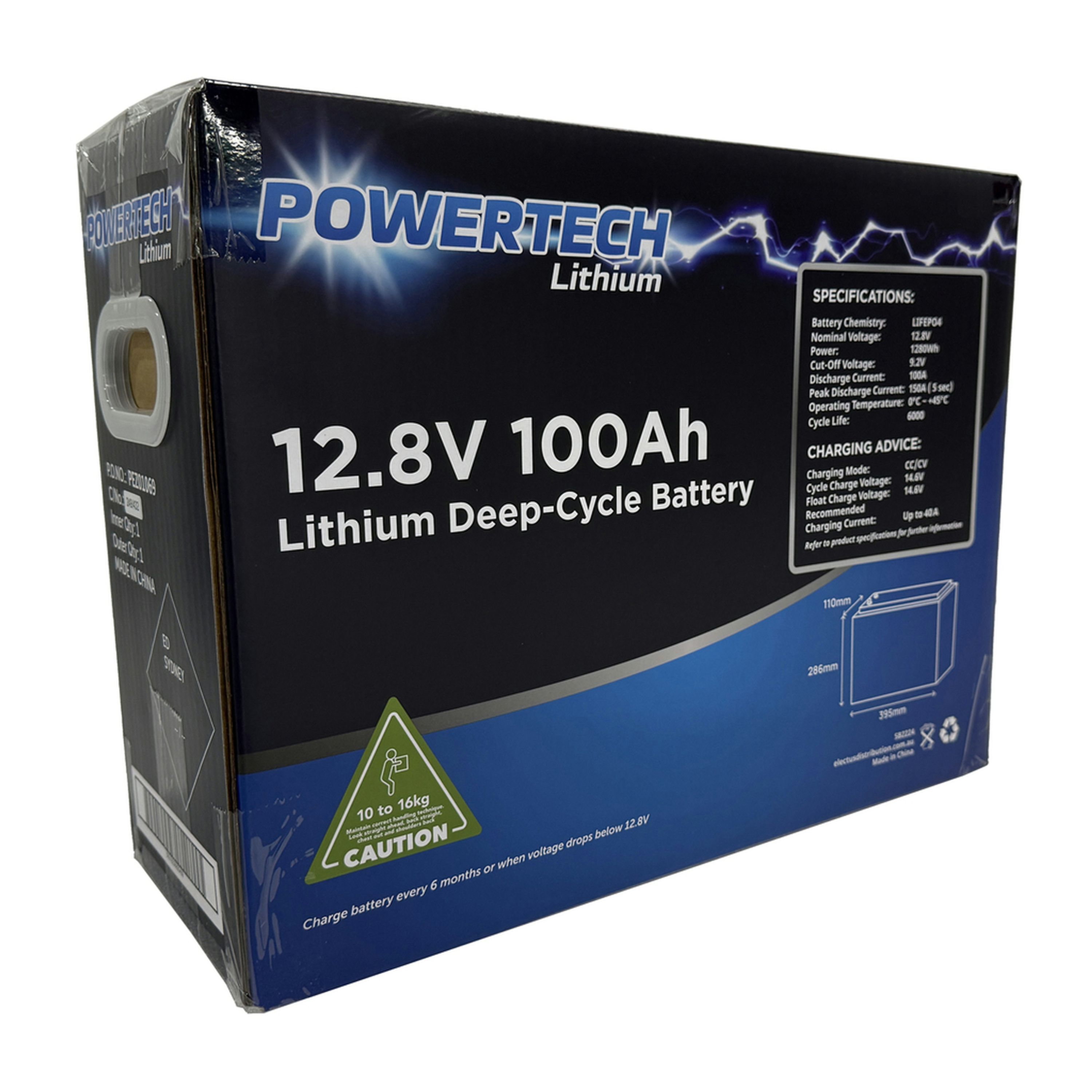

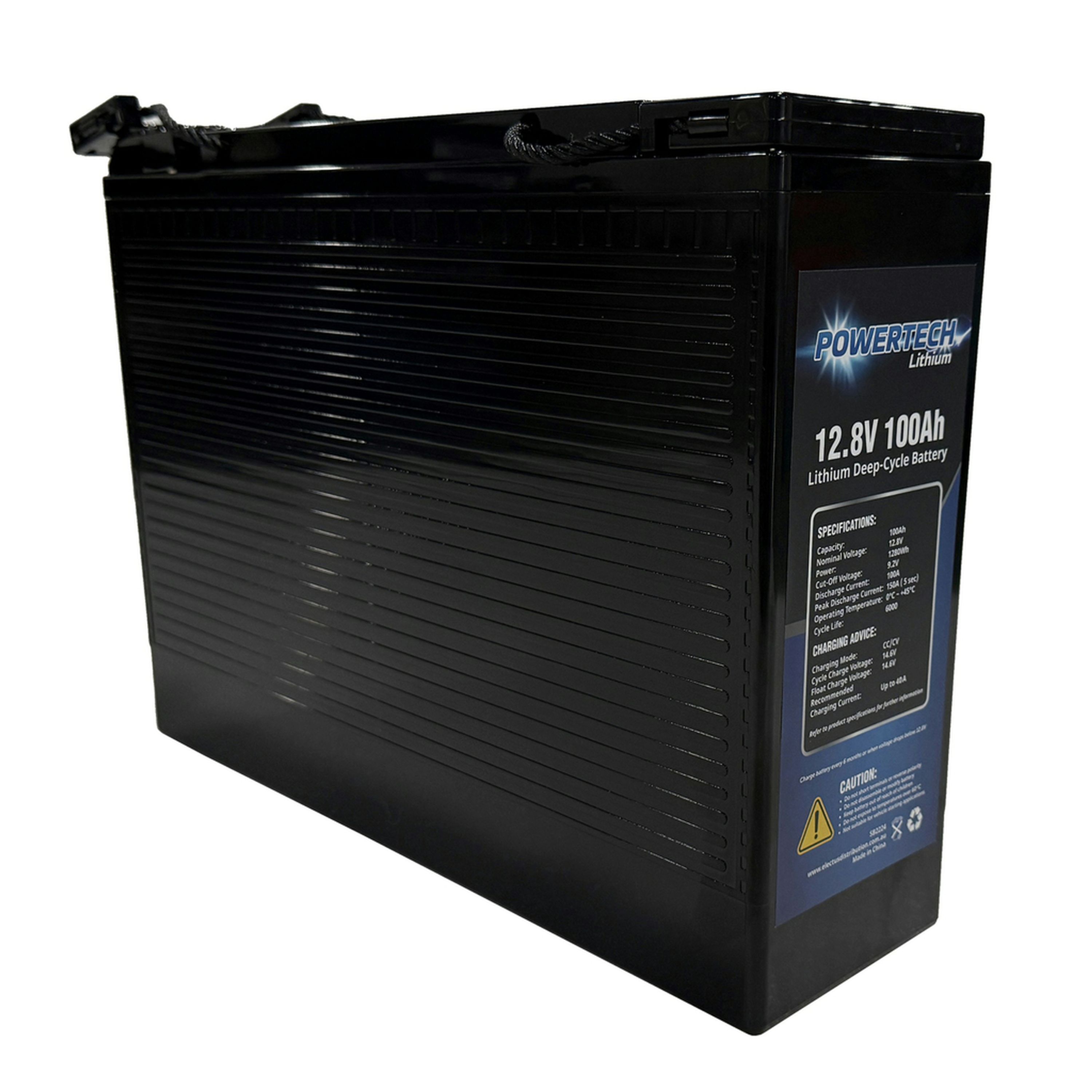

12V 100Ah Slimline Lithium Deep Cycle Battery - 6000+ Cycles

Cat No:
SB2224
Sold as:1 Each
In Stock

$499.00

Description

The next generation of power storage is here! These LiFePO4 batteries may look fairly similar to lead acid batteries, but internally they’re a totally different, next generation concept. They’re actually made up of prismatic LiFePO4 cells, which are in mass production for many portable devices.

An internal battery management system (BMS) ensures all cells are uniformly charged and discharged, as well as providing short circuit, over current, and reverse polarity protection. This provides you with a higher degree of protection than a traditional lead acid battery which is unprotected, and can discharge rapidly under short circuit conditions, causing fire and damage. The internal BMS will also limit discharge and manage cut-off voltage, to further protect the internal cells.

This 100Ah model can provide continuous current up to 100A, with peaks of up to 150A. It’s not suitable for a primary vehicle starting battery, however is absolutely perfect for house batteries, backup batteries, and virtually any other application where you would typically use a large lead acid / AGM battery.

Features:

  • Much lighter than Lead Acid and AGM Batteries
  • Robust LiFePO4 Cells
  • 10+ years life span
  • 100amp continuous output
  • A-grade prismatic cells

Specifications:

  • Service Life: 10yrs+
  • Cycle Life:6000 cycles (> 80% capacity retention)
  • Able to discharge up to 4 batteries in parallel or 2 in series (of same model, bought at the same time).

Specifications

Length
390.0mm
Width
107.0mm
Height
286.0mm
Weight
10230.0g
DG UN Number
3480.0
DG Ship Name
3480 - Lithium Ion Batteries
DG Class
9.0
DG Pack Group
Not Required
DG Hazardous Chemical Code
4W
Battery Watt Hour Rating (Required for Lithium Batteries)
1280.0Wh
Dangerous in Road Freight
false
Dangerous in Air Freight
true
Packaged Dimensions
45.5cm(Length) x 17.5cm(Width) x 36.0cm(Height)
