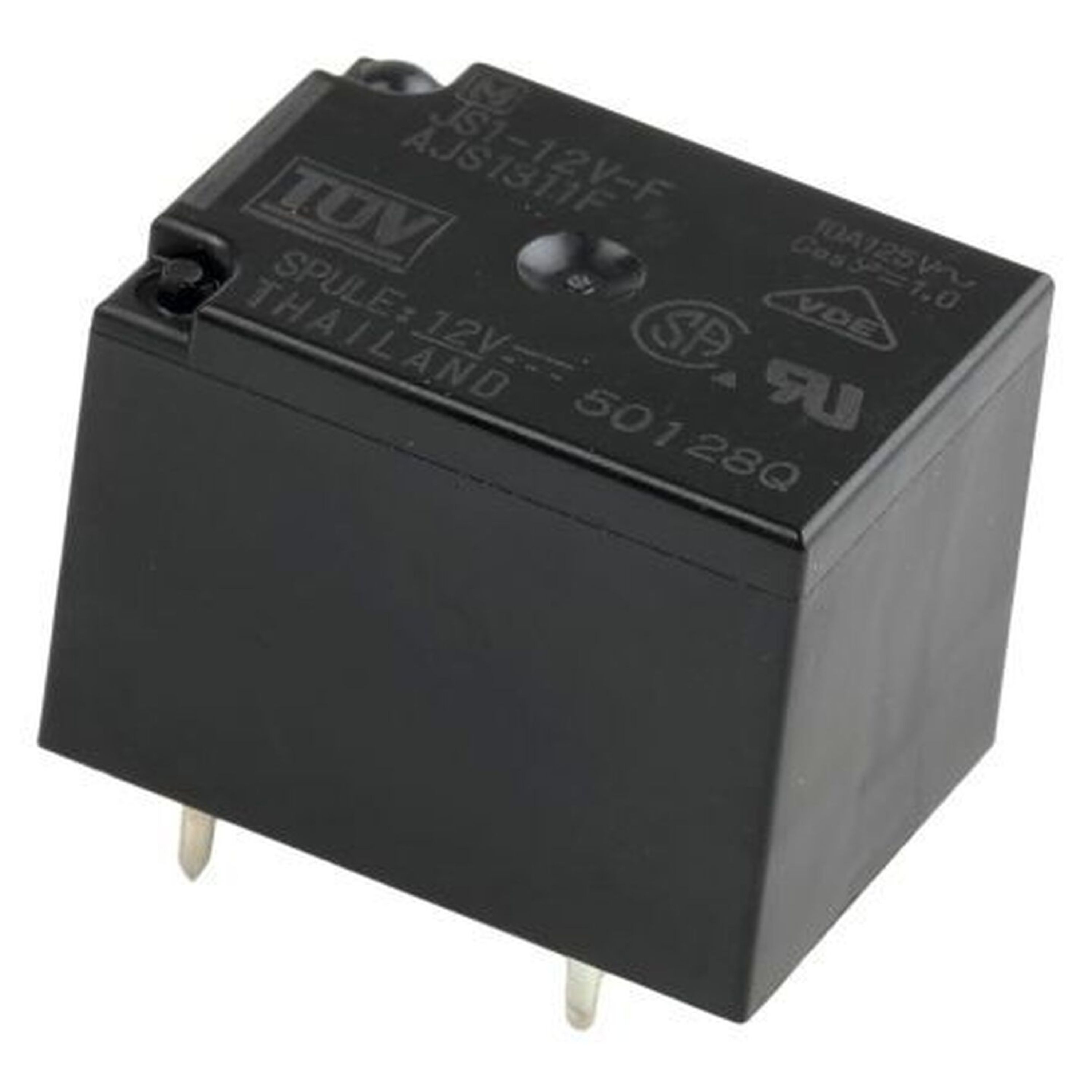

12V 10A Mini PCB Relay

NOTE: This product has been replaced by SY4051. Click here for the replacement

The JS series from Panasonic are ultra miniature PCB power relay. These electromechanical power relays are single pole, high capacity relay. Mainly used in home appliances, office machines and vending machines.

• High contact capacity of 10A at 100VDC, 277VAC
• 20mm x 16mm x 16.4mm dimension
• SPST, SPDT contact configuration
• UL, CSA, VDE, TUV approved options available
• Sealed and flux resistant type protective construction available
• Class E, B and F coil insulation type available
• EN60335-1 GWT compliant (tested by VDE) type available
• Special type for high ambient temperature (105°C) available
