POWERTECH LITHIUM

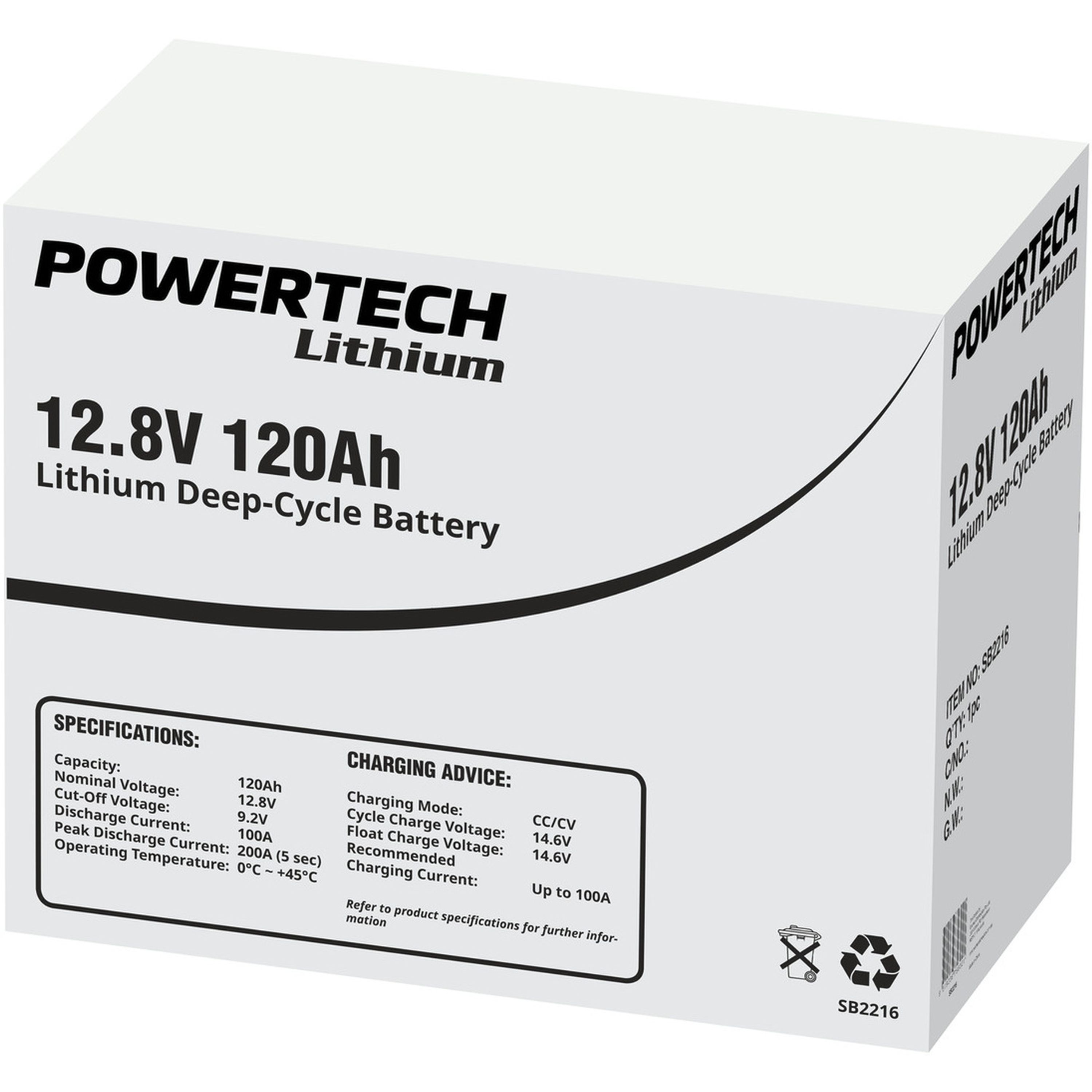

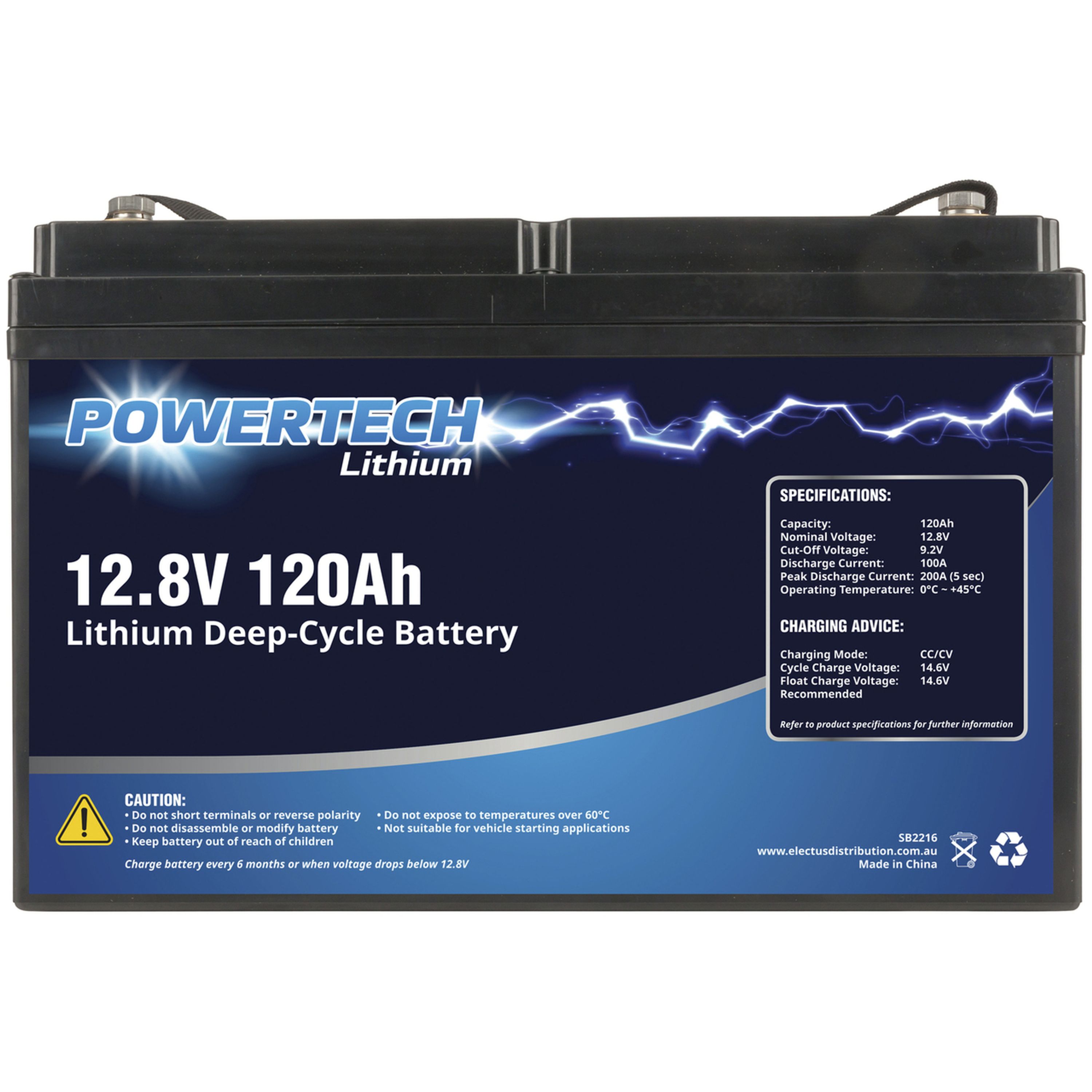

12V 120Ah Lithium Deep Cycle Battery - 6000+ Cycles

Cat No:
SB2216
Sold as:1 Each
In Stock

$499.00

Description

The next generation of power storage is here! These LiFePO4 batteries may look fairly similar to lead acid batteries, but internally they’re a totally different, next generation concept. They’re actually made up of prismatic cells, which are in mass production for many portable devices. An internal battery management system (BMS) ensures all cells are uniformly charged and discharged, as well as providing short circuit, over current, and reverse polarity protection. This provides you with a higher degree of protection than a traditional lead acid battery which is unprotected, and can discharge rapidly under short circuit conditions, causing fire and damage. The internal BMS will also limit discharge and manage cut-off voltage, to further protect the internal cells.

This 120Ah model can provide continuous current up to 100A with peaks of 200A. Absolutely perfect for portable power, and replacement of similar capacity lead acid / AGM battery.

Features:
- Much lighter than Lead Acid and AGM Batteries
- Robust LiFePO4 Cells
- 10+ years life span
- 100amp continuous output
- 6000 cycles (>80% capacity)

Specifications:
Cut-Off Voltage: 10V approx.
Charge Type: Constant Current / Constant Voltage
Discharge Current: 100A

Charge Current: 50A (Recommended), 100A (max)
Internal Cells: prismatic LiFePO4
Operating Temperature: 0-45°C (60°C max discharging)
Operating Humidity: RH < 85%
Storage Temperature: 0-40°C (15-25°C recommended)
Storage Humidity: RH < 50%

Specifications

Battery Chemical Composition
Lithium Iron - Li-Fe
Battery usage
Bulk Storage
Battery Peak Current
200.0A
Amp Hour Rating
120.0Ah
20 Hour Capacity
125.0Ah
Internal Resistance
60.0mΩ
Type of battery
li-ion
Peak Discharge Duration
5.0sec
Continuous Current
100.0A
Length
330.0mm
Width
175.0mm
Height
215.0mm
Weight
11.5kg
DG UN Number
3480.0
DG Ship Name
3480 - Lithium Ion Batteries
DG Class
9.0
DG Pack Group
II - Medium Danger
DG Hazardous Chemical Code
4W
Battery Watt Hour Rating (Required for Lithium Batteries)
1.536Wh
Packaged Dimensions
39.1cm(Length) x 23.3cm(Width) x 28.9cm(Height)
