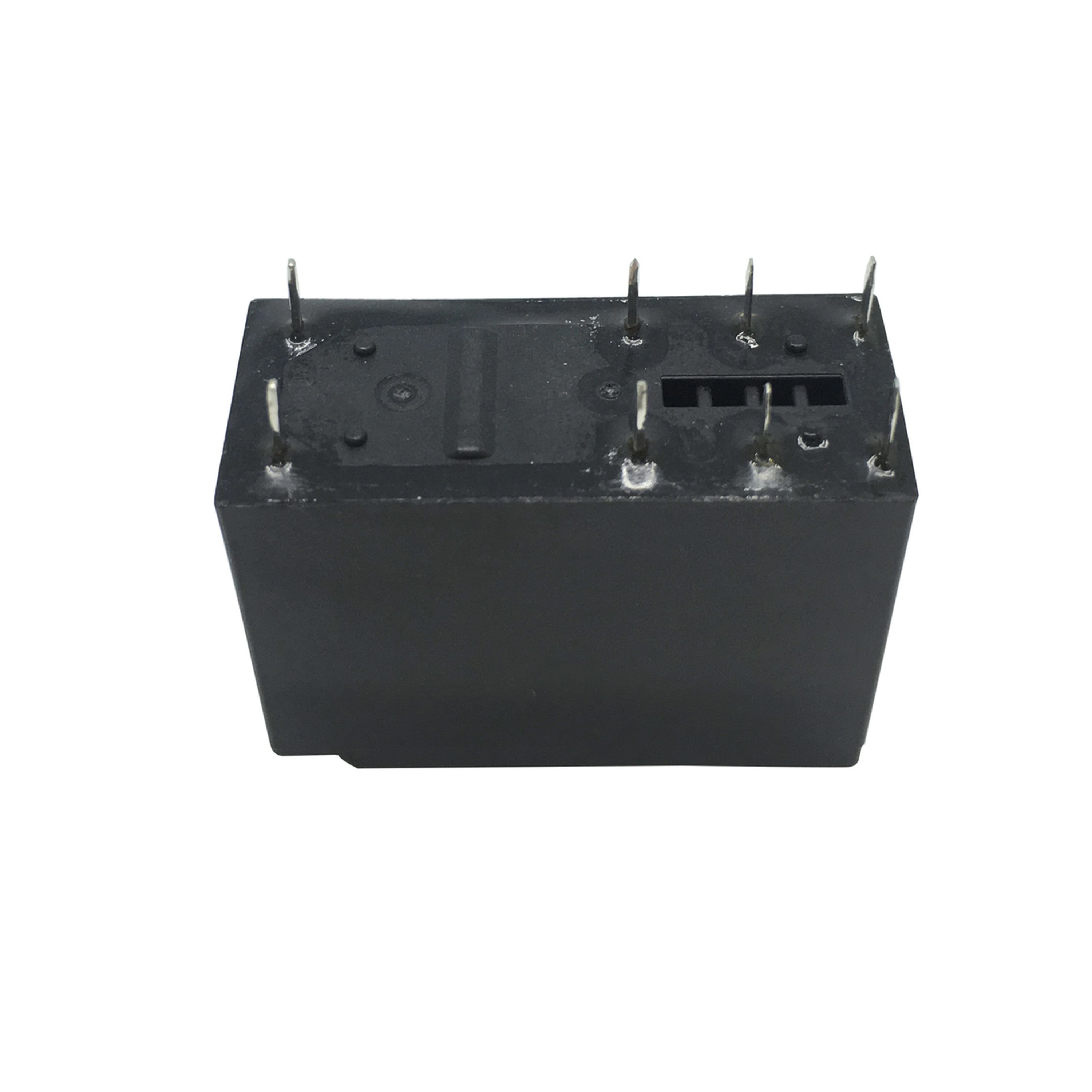

12V DPDT PC Mount Relay - JW Series
- Cat No:
- SY4052
In Stock
$8.95
Description

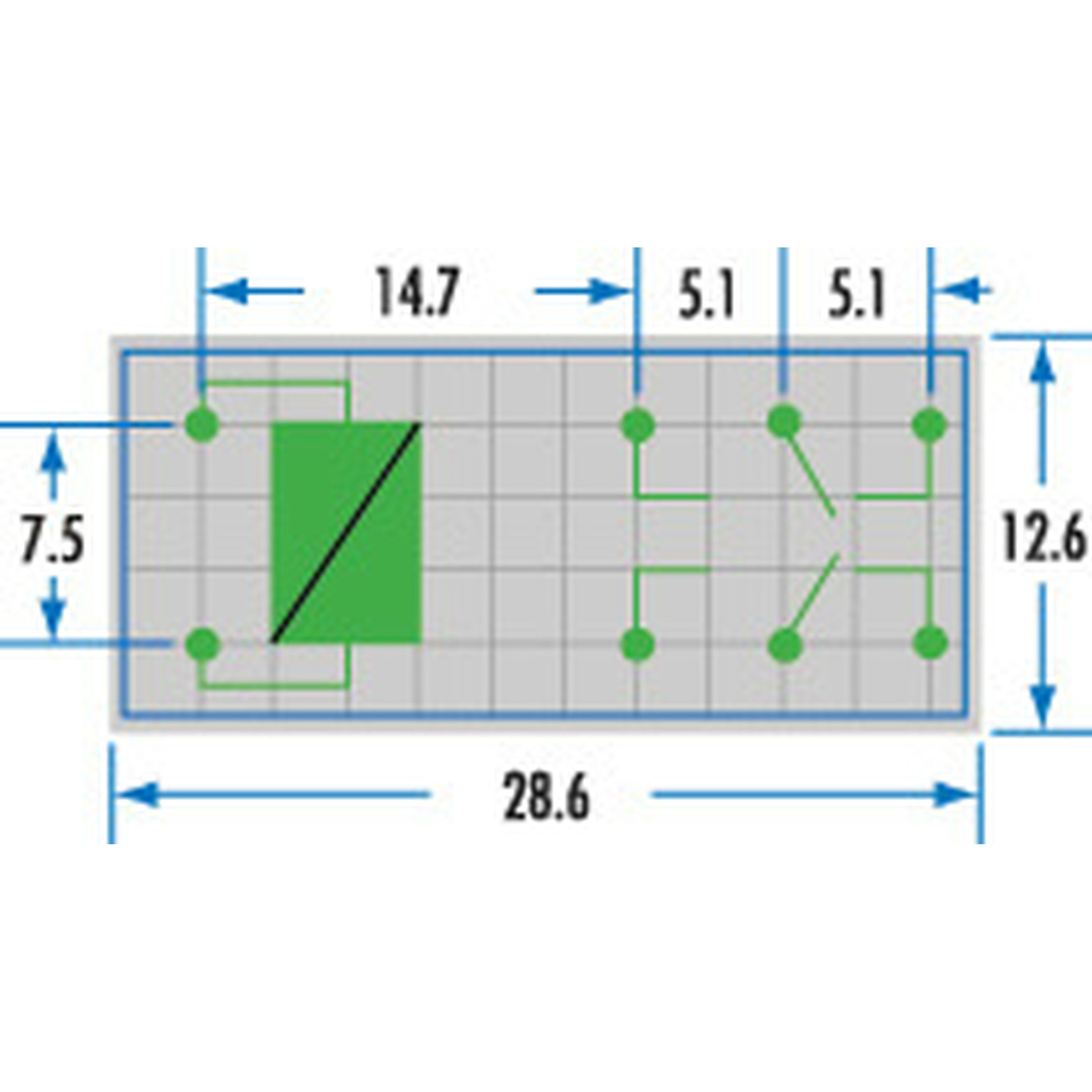

DPDT- 12V DC. - Coil 285 ohms.- 2 x 5A @ 30V DC or 2 x 5A @ 240V AC contact rating. - Size: 29 x 12 x 29(H)mm.
Specifications
- Input
- DC or AC Dual Mode
- Contact format
- DPDT
- Coil Resistance
- 270.0Ω
- AC Contact Voltage
- 240.0V
- AC Switching Current (Opening)
- 5.0A
- DC Contact Voltage
- 12.0V
- DC Switching Current (Opening)
- 5.0A
- AC Voltage
- 240.0V
- AC Current Draw
- 5.0A
- DC Voltage
- 12.0V
- DC Current Draw
- 5.0A
- Width
- 29.0mm
- Height
- 25.0mm
- Depth
- 12.0mm
- Packaged Dimensions
- 3.0cm(Length) x 1.4cm(Width) x 2.5cm(Height)
