12V SPST Low Cost Reed Relay
- Cat No:
- SY4038
Sold as:1 Each
In Stock$3.95
Description
Small and light weight.Specifications:- Contact form: SPST normally open- Coil Resistance: 1050ohms- Nom Volts: 12 - Pickup Voltage: 8.4V DC- Rated Current: 11.4mA - Allowable Voltage: 160%- Dropout Voltage: 1.2V DC - Carry Current = 500mA.- Power Consumption (W): 0.1 - Contact Rating: 1A- 12 VOLT
Specifications
- Device Type
- Reed Relay
- Input
- DC
- Contact format
- SPST
- Nominal Voltage
- 12.0V
- Pickup Voltage
- 8.4V
- Dropout Voltage
- 1.2V
- Coil Resistance
- 1050.0Ω
- Coil Current
- 11.4mA
- Power Consumption
- 0.1W
- DC Contact Voltage
- 12.0V
- DC Switching Current (Opening)
- 11.4mA
- DC Voltage
- 12.0V
- DC Current Draw
- 11.4A

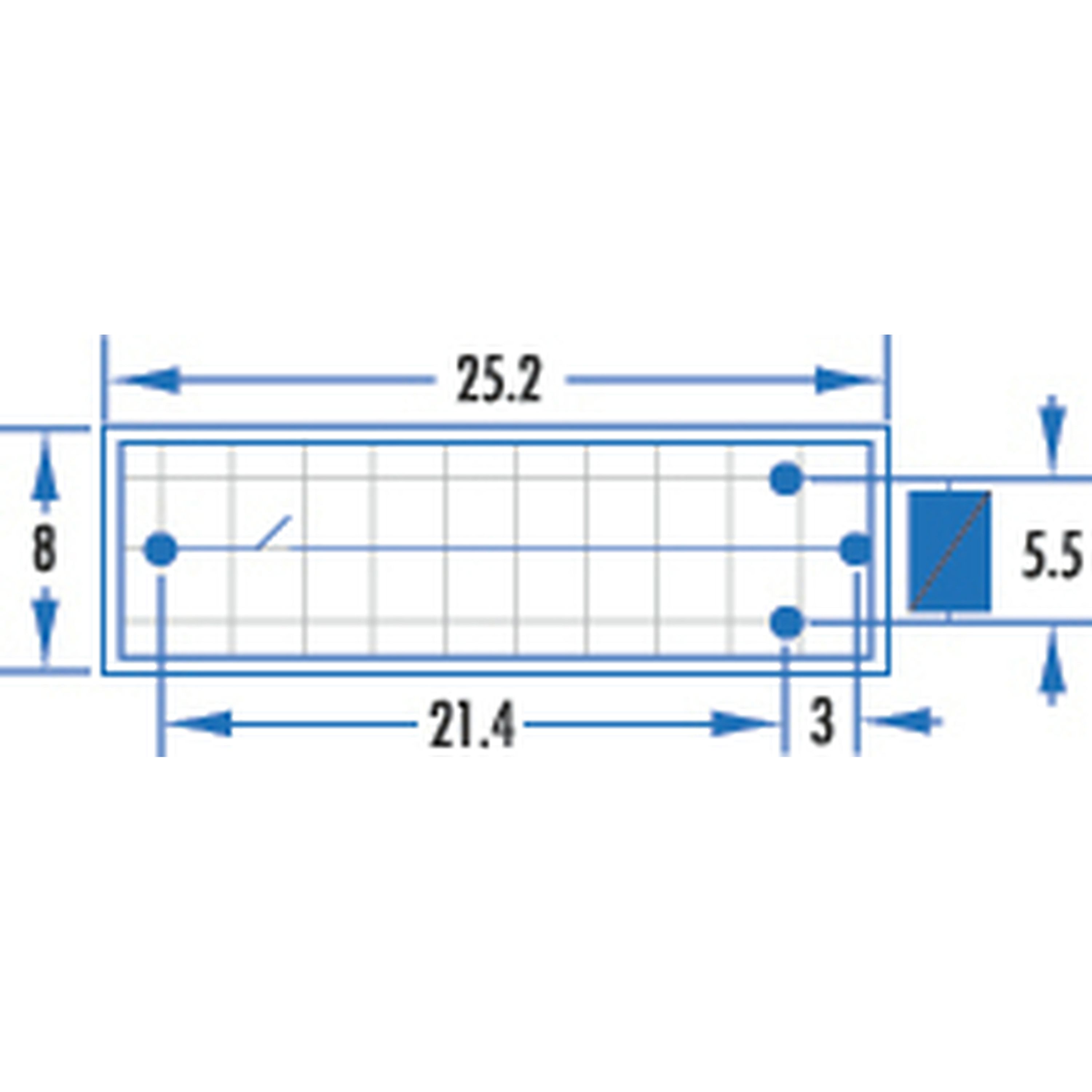

- Packaged Dimensions
- 2.3cm(Length) x 0.7cm(Width) x 0.8cm(Height)
