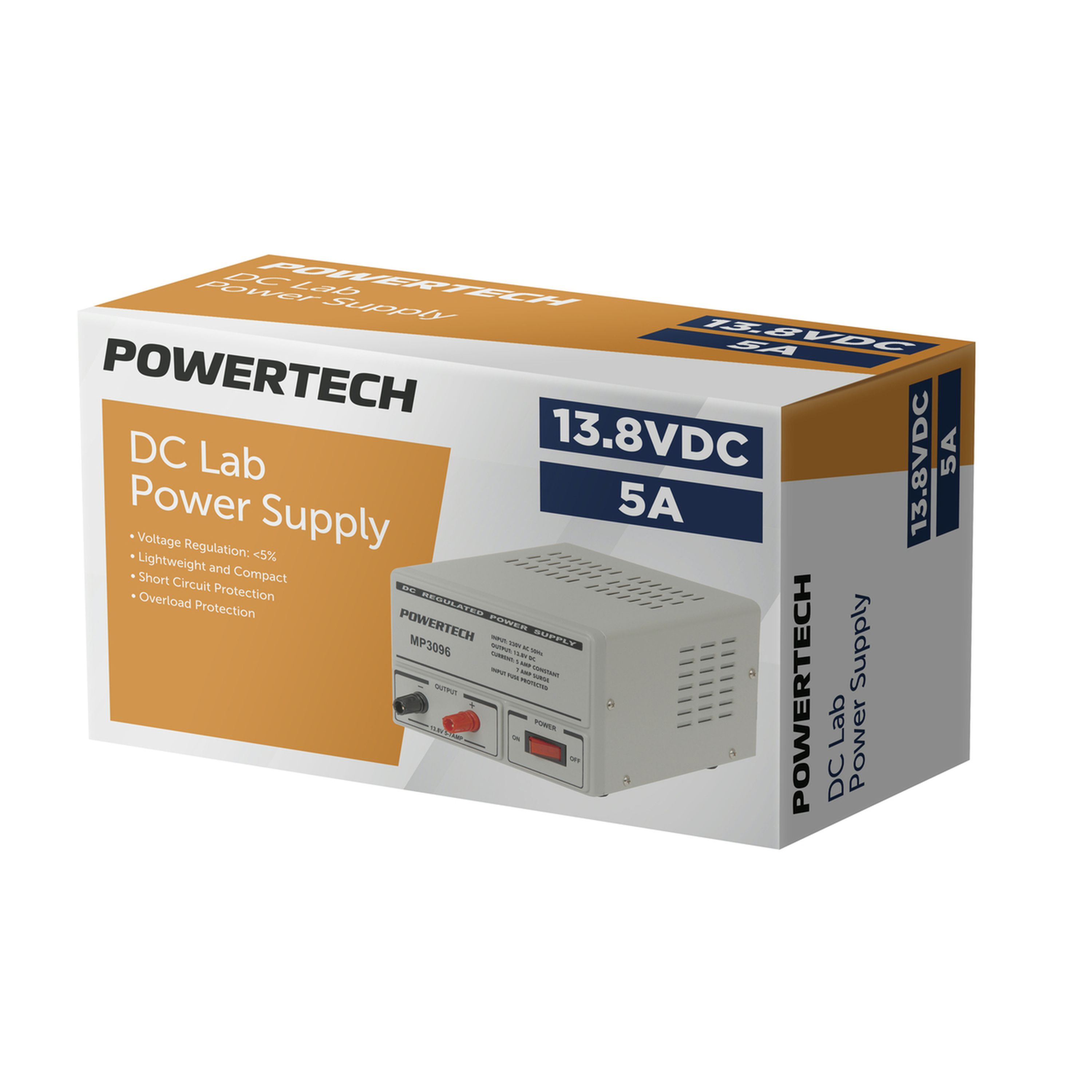

13.8 Volt 5 Amp DC Lab Power Supply
- Cat No:
- MP3096
Out of Stock
$139.00
Description
We have been looking for a cost effective range of 13.8VDC bench/Lab power supplies for some time and are happy that we have finally found them. These good looking power supplies are available in three current capacities of 5 amp, 10 amp, and 20 amp. They use proven technology and are designed to give long service life in workshop situations. The range features short circuit protection on the output and a fused input. Voltage regulation.
Specifications
- Width
- 130mm
- Height
- 160mm
- Depth
- 320mm
- Packaged Dimensions
- 27.9 x 17.9 x 12.5 cm
- Type of Power Supply
- Laboratory
- Regulation Type
- Regulated
- Output Connection
- Banana 4mm (standard), Binding Post Terminals
- Number of Outputs
- 1pc
- Ripple Voltage
- 100MV
- Mains Voltage Range
- 220V, 240V
- Frequency
- 50Hz
- AC Voltage rating
- 240V
- AC Frequency
- 50Hz
- DC Voltage
- 13.8V
- DC current rating
- 5A
- DC Current Surge Rating
- 7A
