POWERTECH

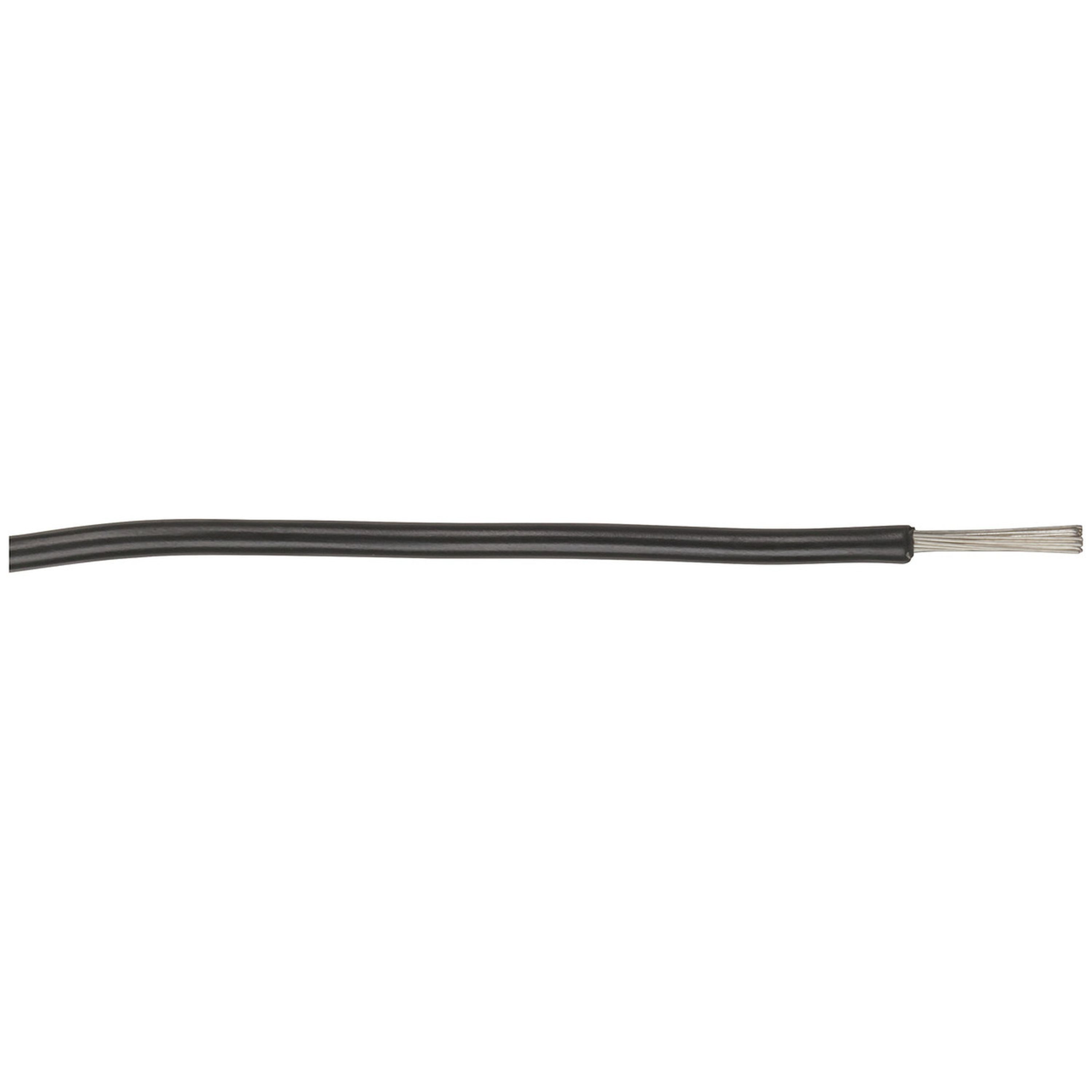

15A DC Power Cable - Black - Sold as 100m roll
- Cat No:
- WH3075
Sold as:Roll (100 Metre)
In Stock$3.45
Description
Flexible DC power cable suitable for general purpose automotive and boating applications. Tinned copper cable suitable for use in marine applications.
• Rated to DC 15A Peak, 11A Constant
• Stranding: 26 x 0.3mm
• PVC insulation
• Max temperature 80°C
Also available seperately
Red WH-3073
• Rated to DC 15A Peak, 11A Constant
• Stranding: 26 x 0.3mm
• PVC insulation
• Max temperature 80°C
Also available seperately
Red WH-3073
Specifications
- Wire Category
- Hook up / power
- Retail Sales Unit
- Metre
- Roll Length
- 100.0m
- AWG
- 16.0
- Conductor Overall Diameter
- 3.3mm
- Core Material
- Tin Plated Copper
- Colour
- Black
- DC current rating
- 15.0A
- Wire Category
- DC Power Cable
- AWG
- 18.0
- Outer Diameter
- 2.8mm
- Conductor Overall Diameter
- 1.2mm
- Number of Conductor Strands
- 26.0
- Core Material
- Tinned Copper
- Resistance per Linear Metre
- 0.021Ω
- Retail Sales Unit
- Metre
- Roll Length
- 100m
- Insulation Material
- PVC
- Cable length
- 100.0m
- Packaged Dimensions
- 100.0cm(Length) x 0.32cm(Width) x 0.32cm(Height)
