POWERTECH

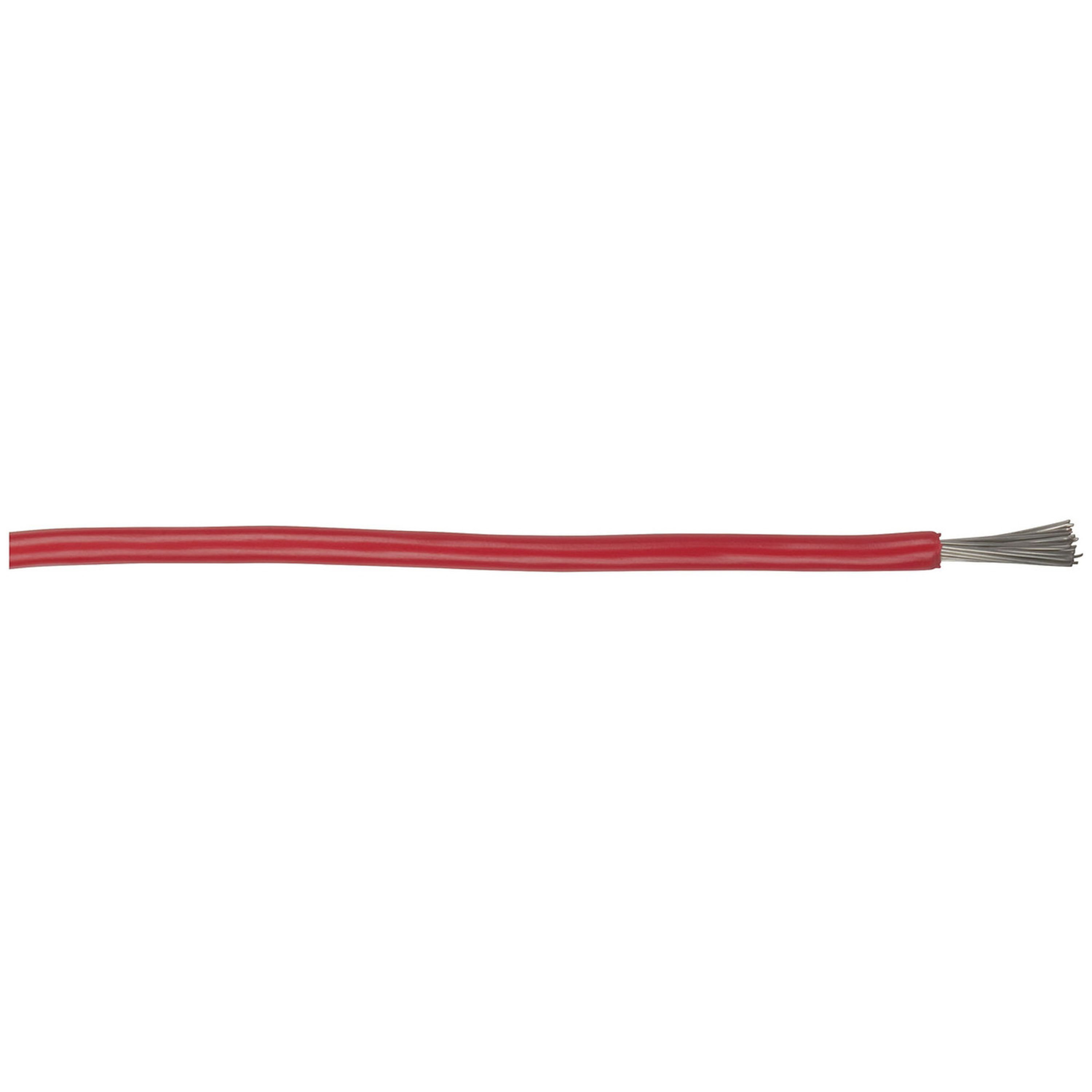

15A DC Power Cable - Red
- Cat No:
- WH3073
Sold as:Roll (100 Metre)
Carton size:400
In Stock$2.50
Description
Flexible DC power cable suitable for general purpose automotive and boating applications. Tinned copper cable suitable for use in marine applications.
• Rated to DC 15A Peak, 11A Constant
• Stranding: 26 x 0.3mm
• PVC insulation
• Max temperature 80°C
Available seperately
Black WH-3075
• Rated to DC 15A Peak, 11A Constant
• Stranding: 26 x 0.3mm
• PVC insulation
• Max temperature 80°C
Available seperately
Black WH-3075
Specifications
- Wire Category
- Hook up / power
- Retail Sales Unit
- Metre
- Roll Length
- 100m
- AWG
- 16
- Conductor Overall Diameter
- 3.3mm
- Core Material
- Tin Plated Copper
- Colour
- Red
- DC current rating
- 15A
- Wire Category
- DC Power Cable
- AWG
- 18
- Outer Diameter
- 2.8mm
- Conductor Overall Diameter
- 1.2mm
- Number of Conductor Strands
- 26
- Core Material
- Tinned Copper
- Resistance per Linear Metre
- 0.021Ω
- Retail Sales Unit
- Metre
- Roll Length
- 100m
- Insulation Material
- PVC
- Cable length
- 100m
- Packaged Dimensions
- 100 x 0.28 x 0.28 cm
