POWERTECH

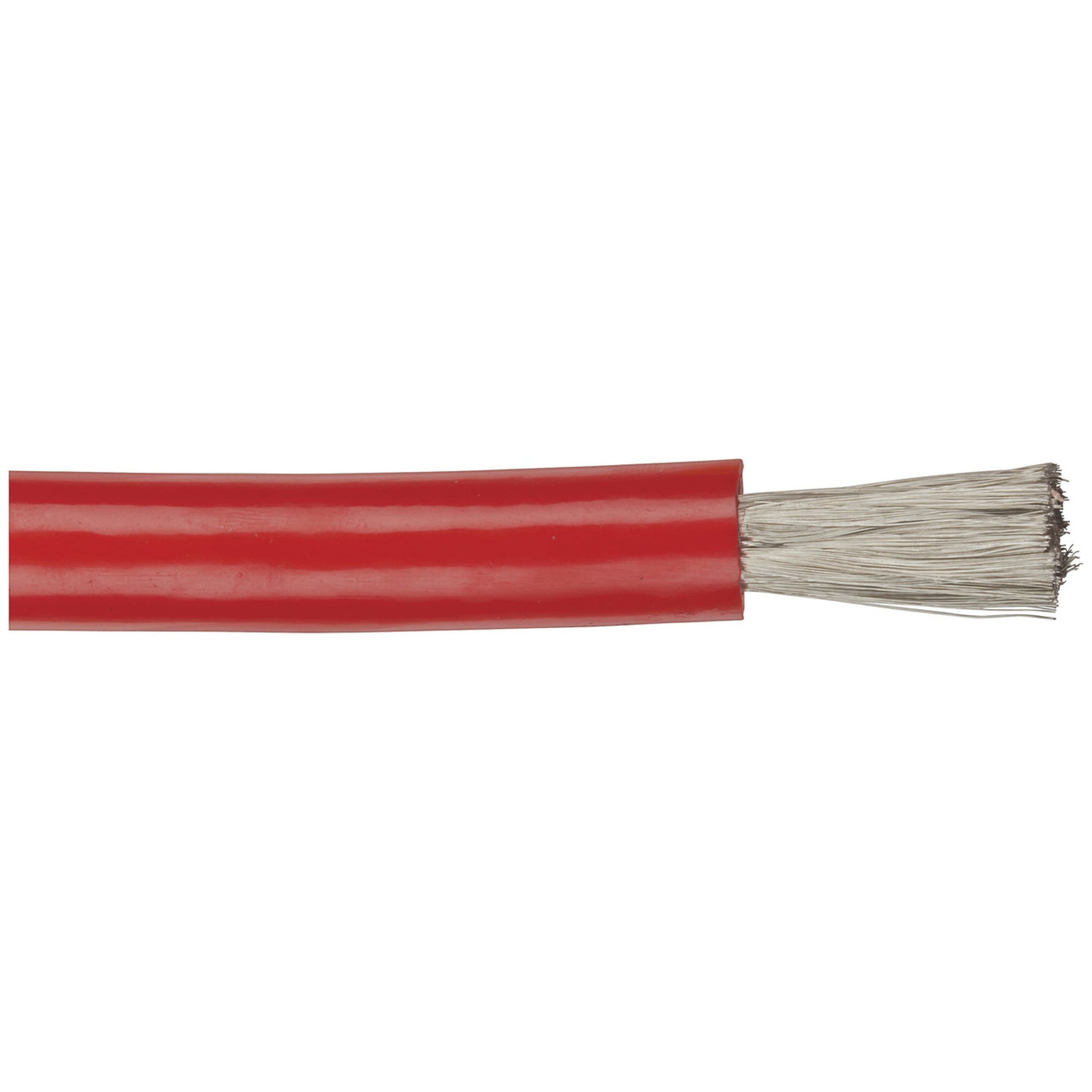

2 Gauge High Current OFC Cable - Red - Sold as 30m roll
- Cat No:
- WH3070
Sold as:Roll (30 Metre)
Out of Stock$24.95
Description
Available in Red and Black. Run this from your car battery to distribution boxes and then 8GA or 4GA to amps, etc.
* Conductor Material:OFC
* Insulation Material: PVC
Rated to DC 150A Peak, 130A Constant
Specifications
- Wire Category
- Hook up / power
- Retail Sales Unit
- Metre
- Roll Length
- 30.0m
- AWG
- 2.0
- Cross Sectional Area
- 31.0mm²
- Outer Diameter
- 13.15mm
- Conductor Overall Diameter
- 8.34mm
- Individual Conductor Strand Diameter
- 0.12mm
- Number of Conductor Strands
- 2.0pc
- Strand Weave Configuration
- 145 x 19
- Resistance per Linear Metre
- 0.63mΩ
- Core Material
- Tin Plated Copper
- Number of Conductor Cores
- 1.0pc
- Colour
- Red
- Operating Temperature
- 90.0°C--10.0°C
- DC current rating
- 150.0A
- Wire Category
- High Current OFC
- AWG
- 2.0
- Outer Diameter
- 12.5mm
- Conductor Overall Diameter
- 8.5mm
- Number of Conductor Strands
- 2940.0
- Core Material
- Oxygen Free Copper
- Resistance per Linear Metre
- 0.52 mΩ
- Retail Sales Unit
- Metre
- Roll Length
- 50m
- Insulation Material
- PVC
- Cable length
- 30.0m
- Packaged Dimensions
- 100.0cm(Length) x 1.3cm(Width) x 1.3cm(Height)
