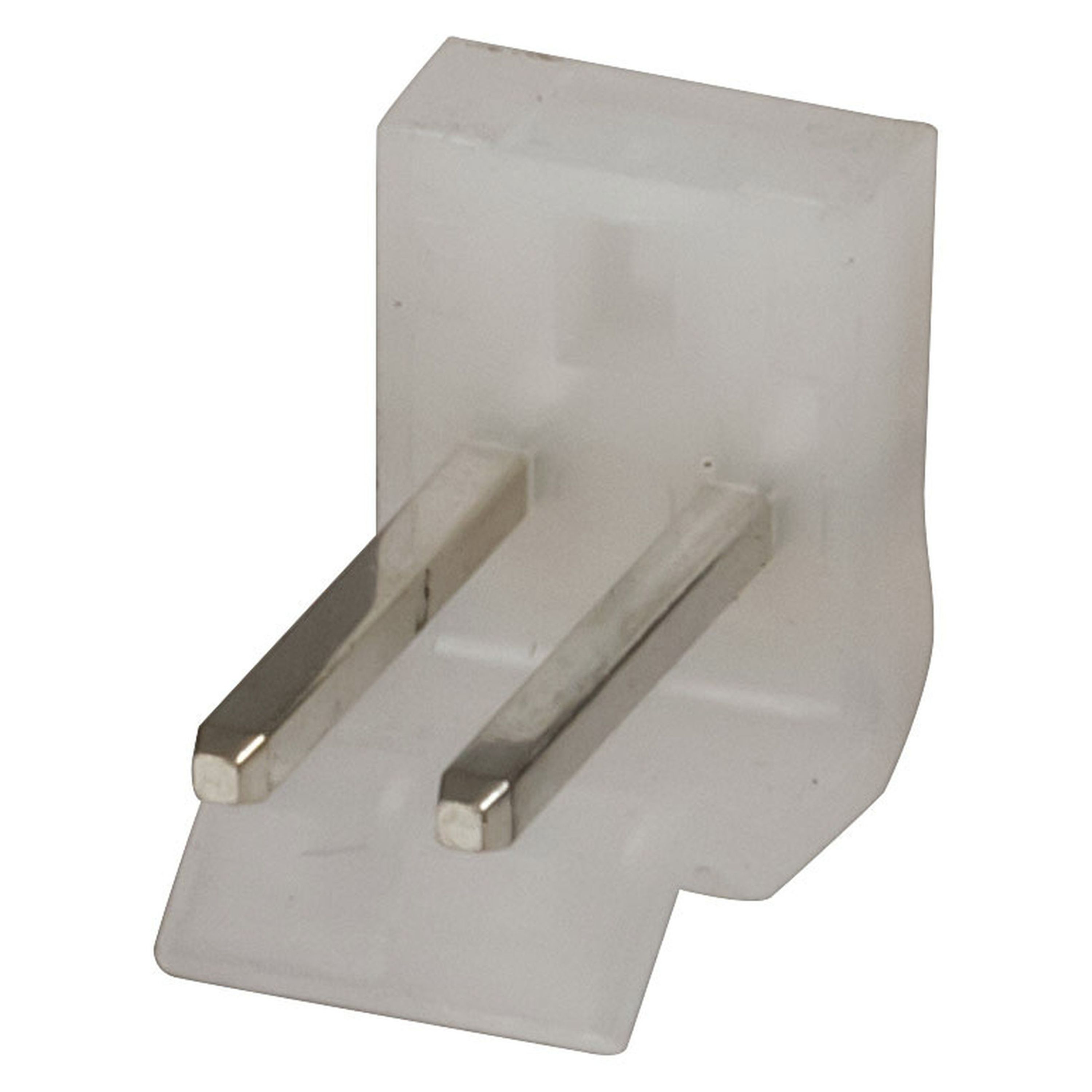

2 Pin 0.156in Straight Locking Header with crimp pins - 3.96mm Pitch
- Cat No:
- HM3442
In Stock
$0.45
Description
The contacts are rated at 250V @ 7A AC/DC which makes them an ideal power connector to a PCB. They are end to end stackable and commonly seen as the output connector on Switchmode power supplies.
Features:
- Wire Pull- Out force: 2.85kg
- Unmating Force: 150g
- Durability: 25 cycles
- Housing: Nylon, UL 94V- 2
- Temperature: - 40 to 105°C
Features:
- Wire Pull- Out force: 2.85kg
- Unmating Force: 150g
- Durability: 25 cycles
- Housing: Nylon, UL 94V- 2
- Temperature: - 40 to 105°C
Specifications
- Outdoor / Exterior Scale
- -40.0°C-150.0°C
- Type
- Single Row Header
- Device
- Plug
- Attachment Method
- PCB
- Pack Quantity
- 1.0pc
- Number of Pins
- 2.0pc
- Pin Spacing
- 4mm (5/32")
- Pin Size
- 3.96mm
- Insulation Dielectric Voltage Rating
- 1500.0V
- Insulation Resistance
- 500.0MΩ
- header locking
- true
- header polarised
- true
- Mating Force
- 199.0g
- Contact Insertion Force
- 681g
- Contact Retention to Housing
- 3.63kg
- AC current rating
- 2.5A
- DC Voltage
- 250.0V
- DC current rating
- 2.5A
- Packaged Dimensions
- 1.2cm(Length) x 0.8cm(Width) x 2.0cm(Height)
