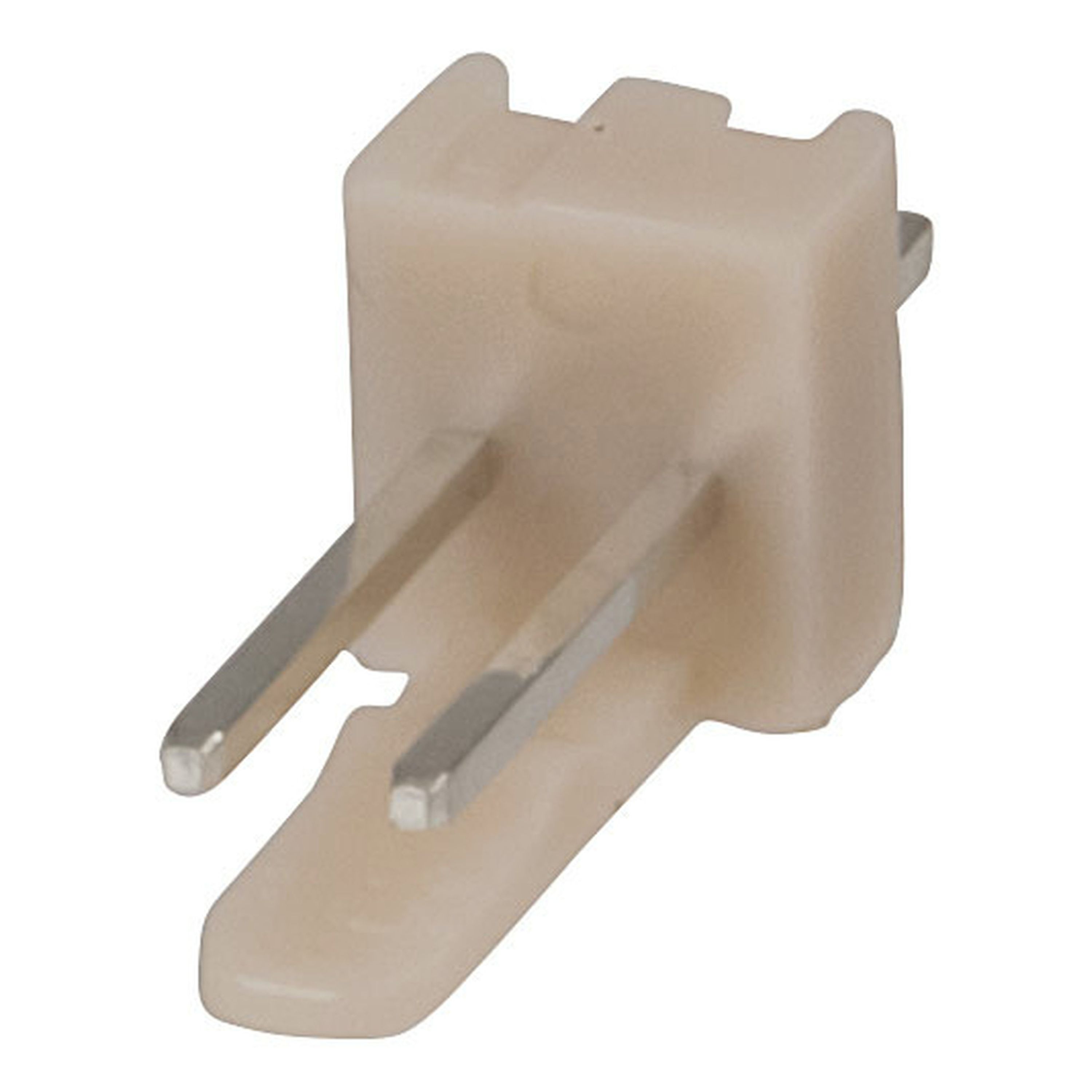

2 Pin 0.1in Straight Locking Header - 2.54mm Pitch - Single
- Cat No:
- HM3412
In Stock
$0.30
Description
A range of connectors for PCB mounting that allow circuit boards to be plugged together at right angles or end-to-end, or cables to be plugged onto circuit boards at right angles or end-on at the edge of the PCB. Both plugs and sockets may be butted up end-to-end to form connectors with any number of ways from 2 upwards.
Both plugs are wafer design into which square, tin-plated brass pins have been inserted. These pins protrude 3.4mm on one side, and should be soldered to the PCB. The nylon wafer sits on the PCB and is 3.3mm thick. The back provides locking and polarising.
Features:
Normal force: 200g min
Housing: UL 94v-0 white nylon
Temperature: 0 to +75°C
Both plugs are wafer design into which square, tin-plated brass pins have been inserted. These pins protrude 3.4mm on one side, and should be soldered to the PCB. The nylon wafer sits on the PCB and is 3.3mm thick. The back provides locking and polarising.
Features:
Normal force: 200g min
Housing: UL 94v-0 white nylon
Temperature: 0 to +75°C
Specifications
- Operating Temperature
- 75.0°C
- Length
- 7.6mm
- Width
- 14.2mm
- Height
- 6.3mm
- Type
- Single Row Header
- Device
- Plug
- Attachment Method
- Crimp
- Pack Quantity
- 1.0pc
- Number of Pins
- 2.0pc
- Pin Spacing
- 2.54mm (0.1")
- Pin Size
- 0.9mm
- Insulation Dielectric Voltage Rating
- 1500.0V
- Insulation Resistance
- 50.0MΩ
- header locking
- true
- header polarised
- true
- Mating Force
- 199.0g
- Contact Insertion Force
- 681g
- Contact Retention to Housing
- 3.63kg
- DC Voltage
- 250.0V
- DC current rating
- 2.5A
- Packaged Dimensions
- 1.5cm(Length) x 0.5cm(Width) x 0.5cm(Height)
