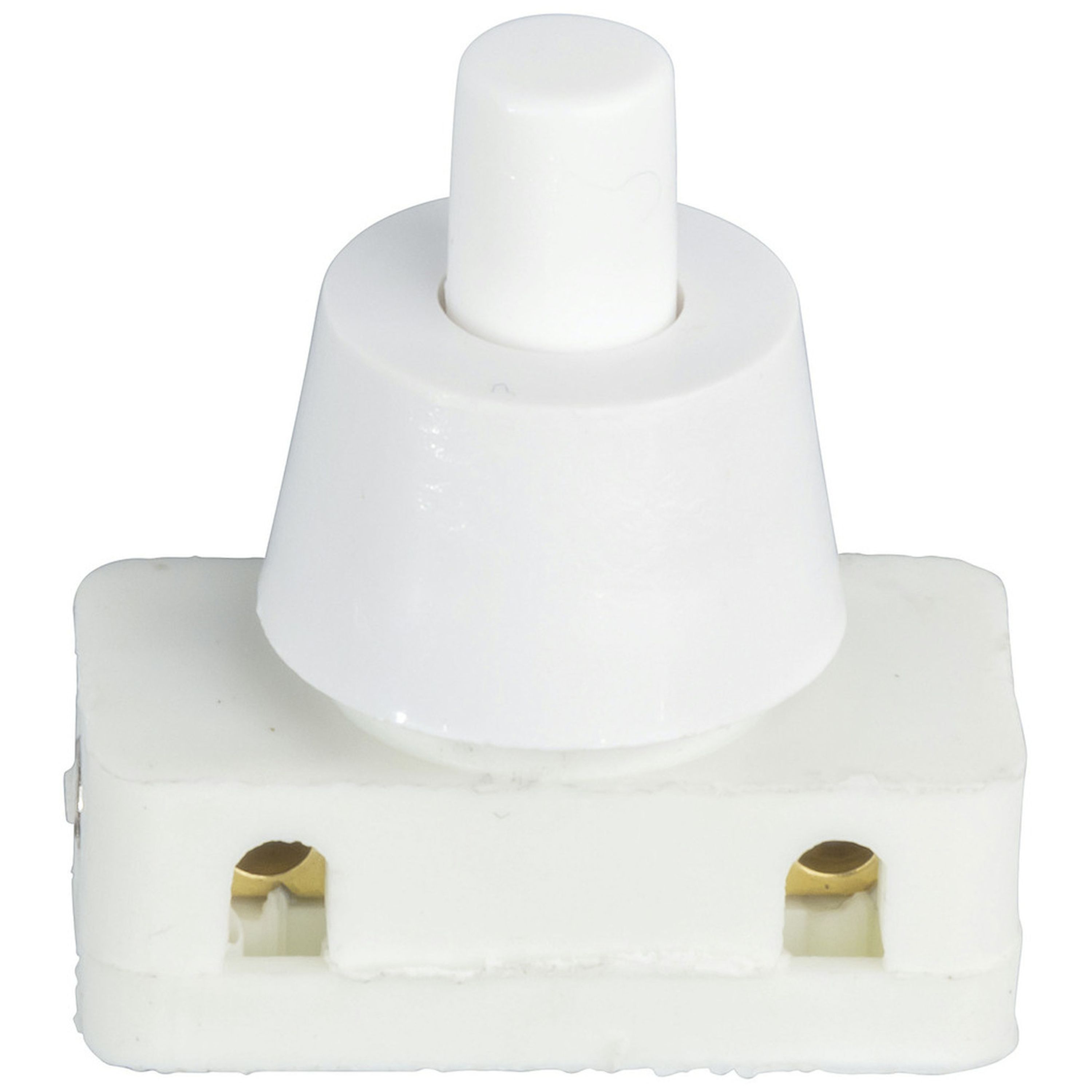

240V 2A Bed Lamp Style Pushbutton Switch SPST
- Cat No:
- SP0735
Sold as:1 Each
In Stock$2.60
Description
Universal pushbutton switch suitable for replacing switches in some equipment. Also commonly used in small electronics projects such as school science experiments due to ease of connection.
• Pusbutton stem: 7(L) x 5(Dia.)mm
Specifications
- Switch Type
- Bedlamp
- Poles / Contacts
- 1.0 pole
- Throws / Positions
- 1.0 pos
- Switch Function
- Latching
- Mechanism Material
- Acrylic
- Switch Connection
- Screw Terminal
- Switch Colour Coded
- White
- Pole Throw Type
- SPST
- AC Voltage Rating
- 240.0V
- AC Current Rating
- 2.0A
- Length
- 24.0mm
- Width
- 12.0mm
- Height
- 25.0mm
- Switch Type
- Pushbutton
- Pole Throw Type
- SPST
- Poles / Contacts
- 1.0 pole
- Throws / Positions
- 1.0pos
- Switch Function
- Locking On/Off
- Centre Off
- false
- Switch Connection
- Screw Terminal
- Cycle Life
- 50000.0 cycles
- Mechanism Material
- Acrylic
- Actuator Length
- 6.0mm
- Actuator Diameter
- 5.0mm
- AC Voltage rating
- 240.0V
- AC current rating
- 2.0A
- DC Voltage
- 32.0V
- DC current rating
- 4.0A
- Packaged Dimensions
- 3.0cm(Length) x 2.5cm(Width) x 1.0cm(Height)
