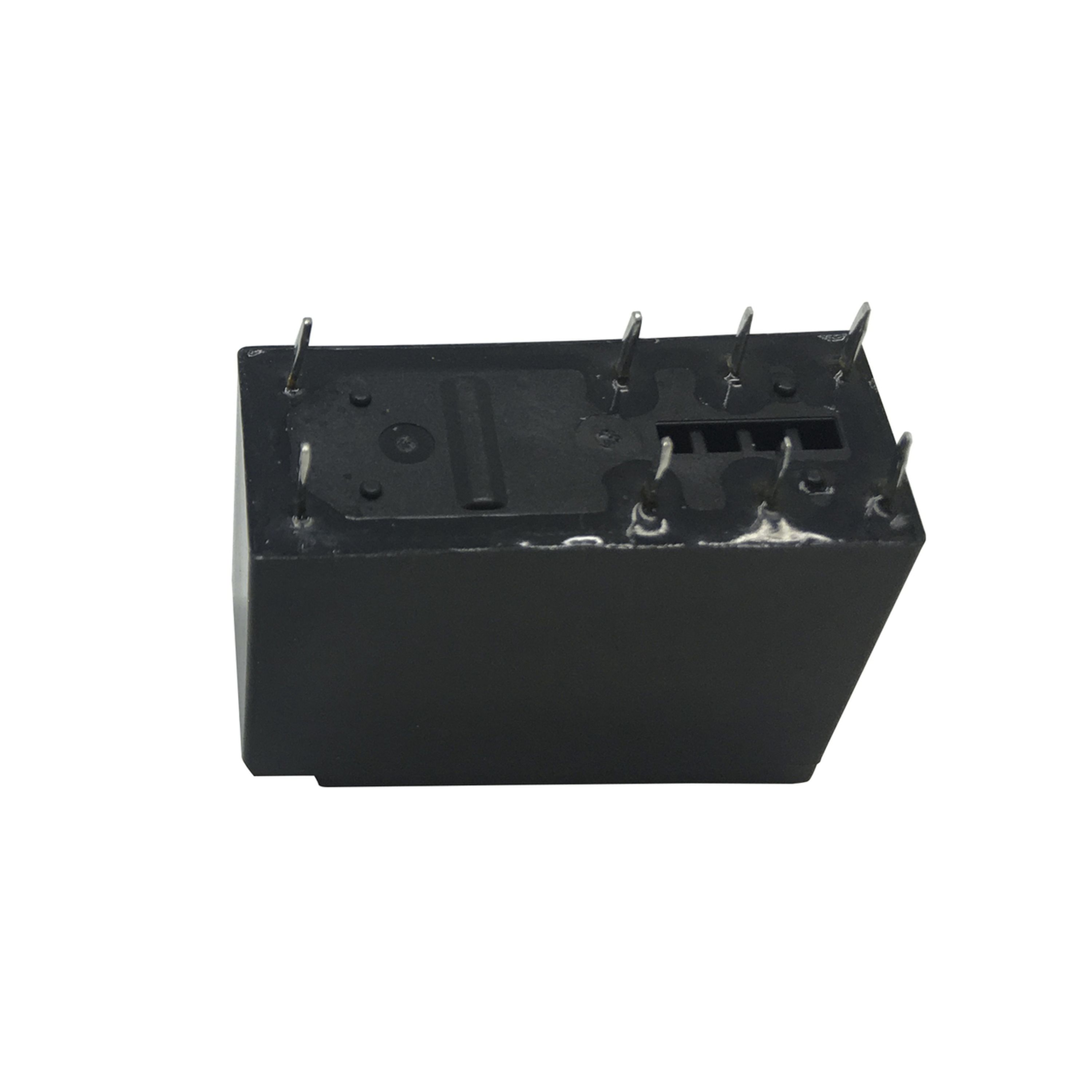

24V DPDT PC Mount Relay - JW Series
- Cat No:
- SY4053
In Stock
$9.95
Description
*24V DC
*Coil 1100 ohm
*2 x 5A @ 30VDC or 2 x 5A @ 250VAC contact rating

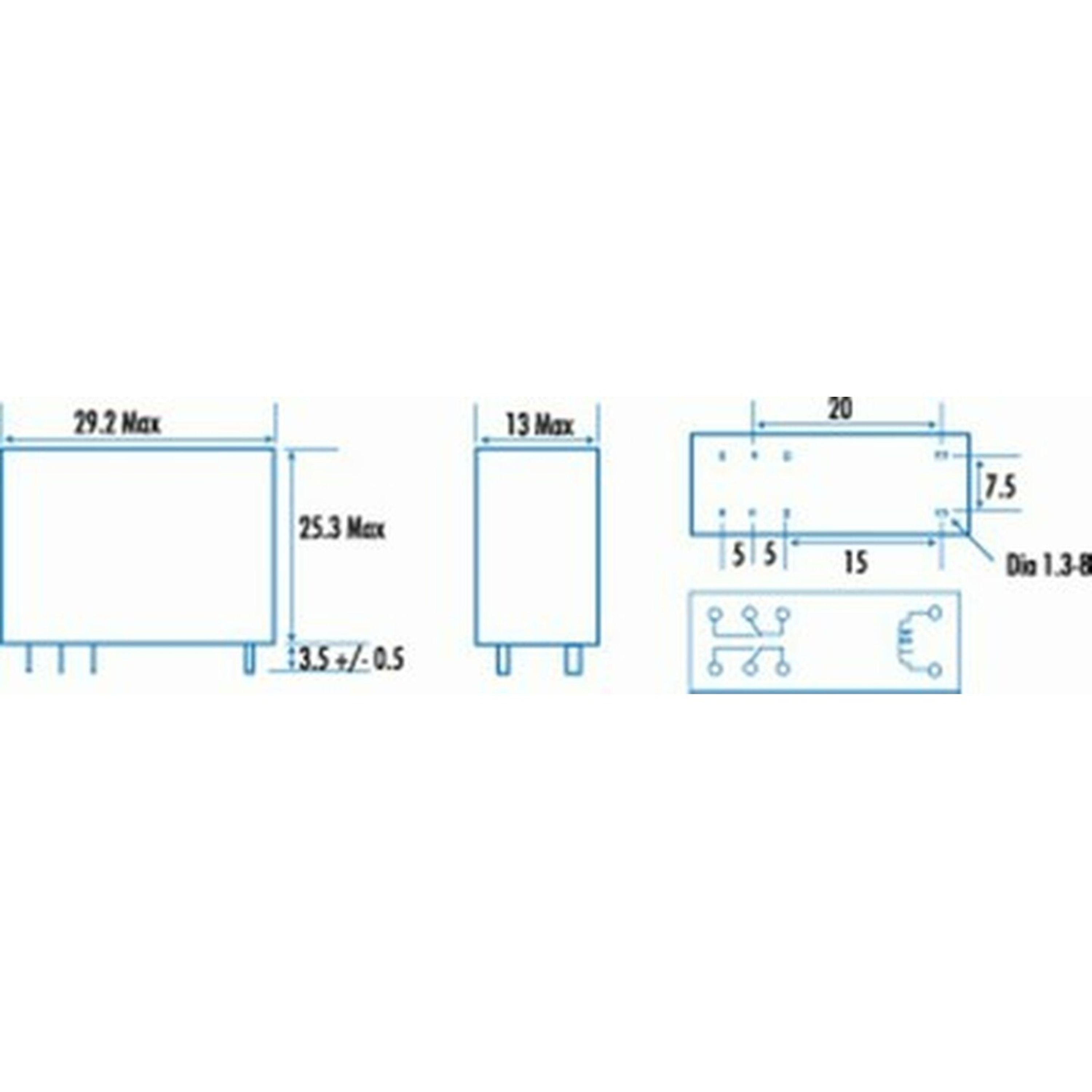

*Size: 29(W) x 12(D) x 29(H)mm
*Coil 1100 ohm
*2 x 5A @ 30VDC or 2 x 5A @ 250VAC contact rating
*Size: 29(W) x 12(D) x 29(H)mm
Specifications
- Input
- DC or AC Dual Mode
- Contact format
- DPDT
- Coil Resistance
- 1100.0Ω
- AC Contact Voltage
- 240.0V,240.0V
- AC Switching Current (Opening)
- 5.0A-5.0A
- DC Contact Voltage
- 24.0V,24.0V
- DC Switching Current (Opening)
- 5.0A
- AC Voltage
- 240.0V
- AC Current Draw
- 5.0A
- DC Voltage
- 24.0V
- DC Current Draw
- 5.0A
- Width
- 29.0mm
- Height
- 25.0mm
- Depth
- 12.0mm
- Packaged Dimensions
- 2.8cm(Length) x 1.0cm(Width) x 3.0cm(Height)
