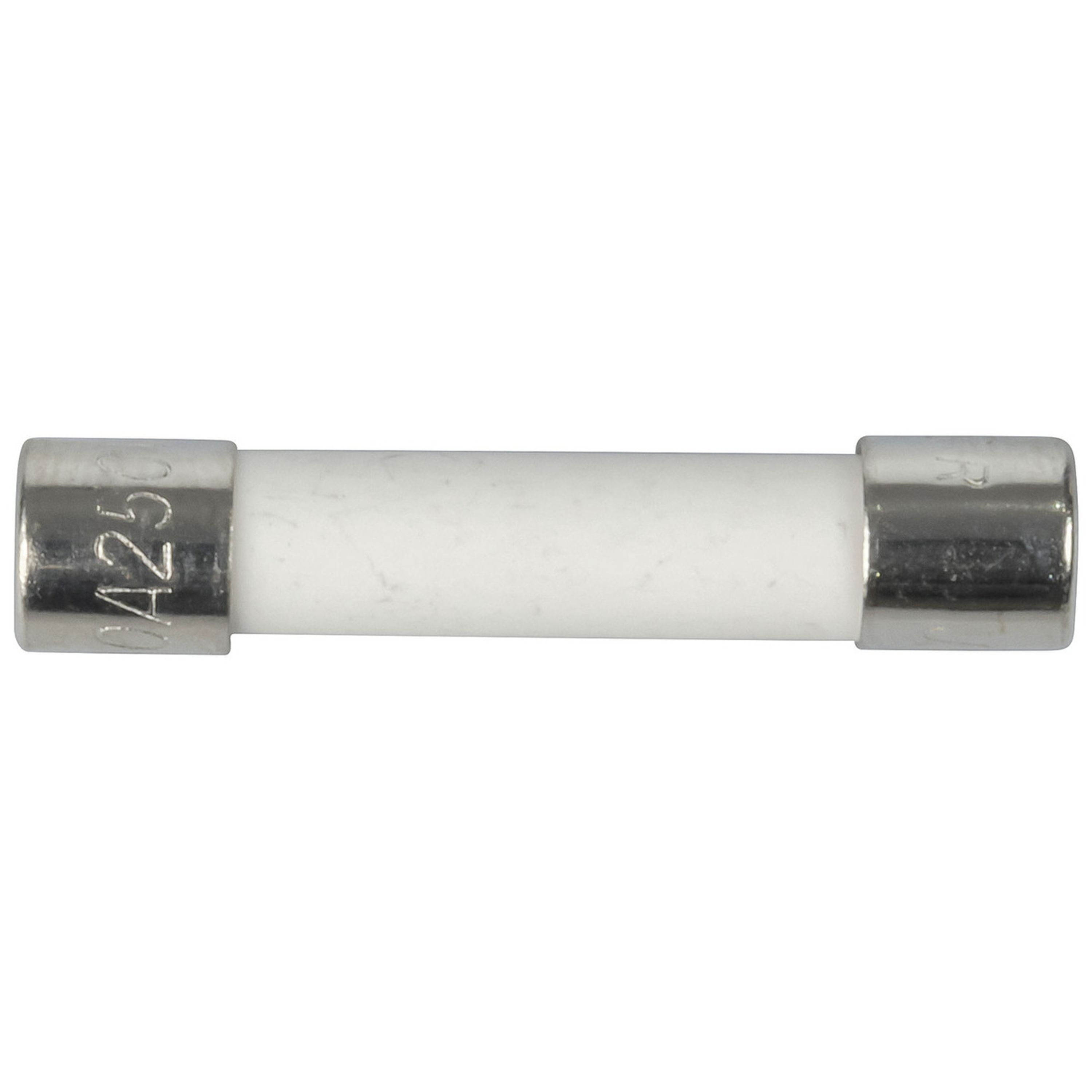

250V 10A 3AB/3AG Ceramic Fast Blow Fuse
- Cat No:
- SF2124
Sold as:1 Each
In Stock$1.55
Description
A ceramic fuse offers better thermal and arc protection during a high current episode compared to a glass fuse with the same specifications. Sometimes marked with an F before the current rating (for example F3.15A), these fast acting fuses are designed to go open circuit very quickly in an overload or short circuit condition in a huge range of devices. The 3AB reference is the way to differentiate from 3AG (glass) fuses of the same size.
Specifications
- Rated Current
- 10A
- Rated Voltage
- 250V
- Fuse Type
- 3AG
- Blow Speed
- Fast blow
- Case Material
- Ceramic

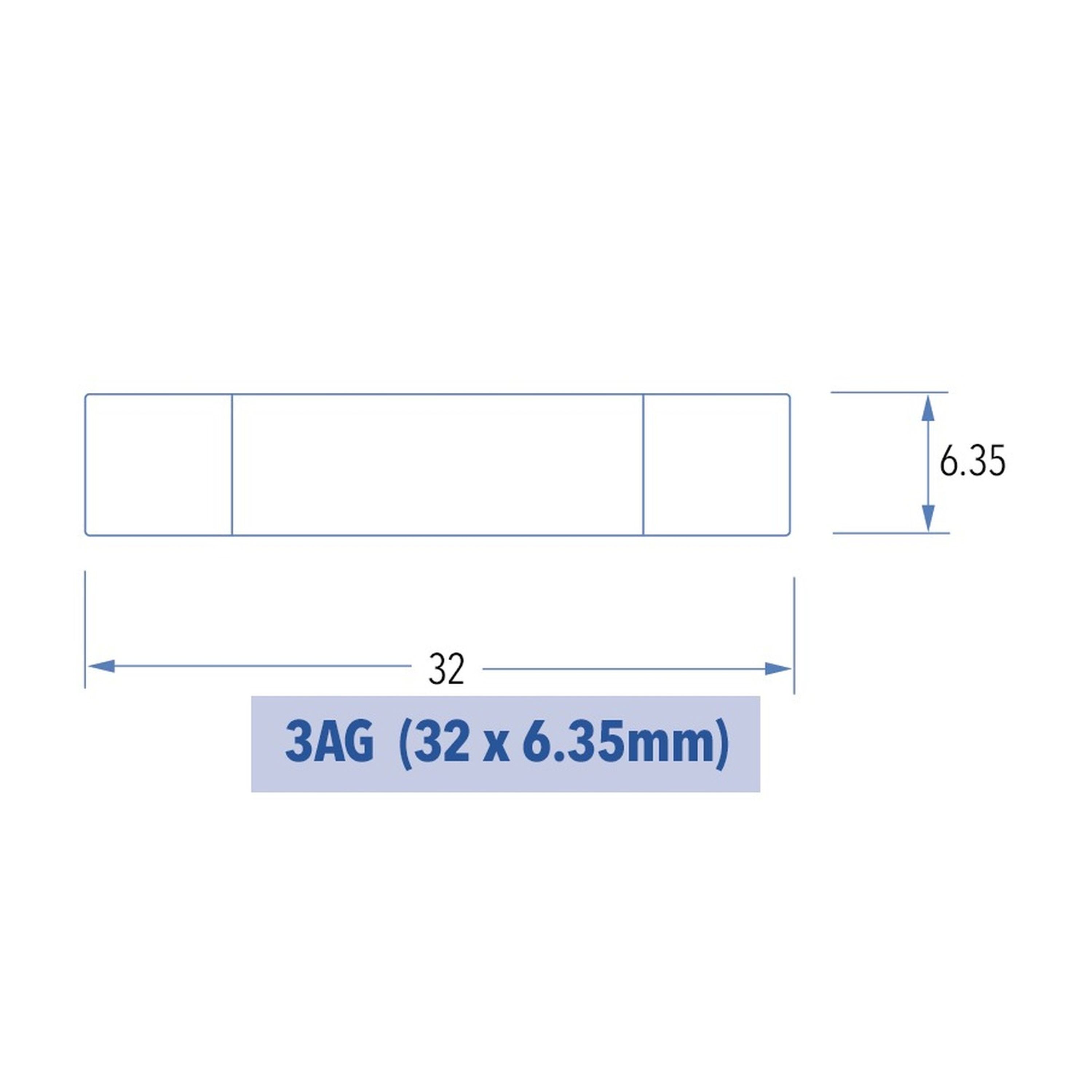

- Diameter
- 6.35mm
- Length
- 32.0mm
- Packaged Dimensions
- 3.0cm(Length) x 0.05cm(Width) x 0.05cm(Height)
