POWERTECH

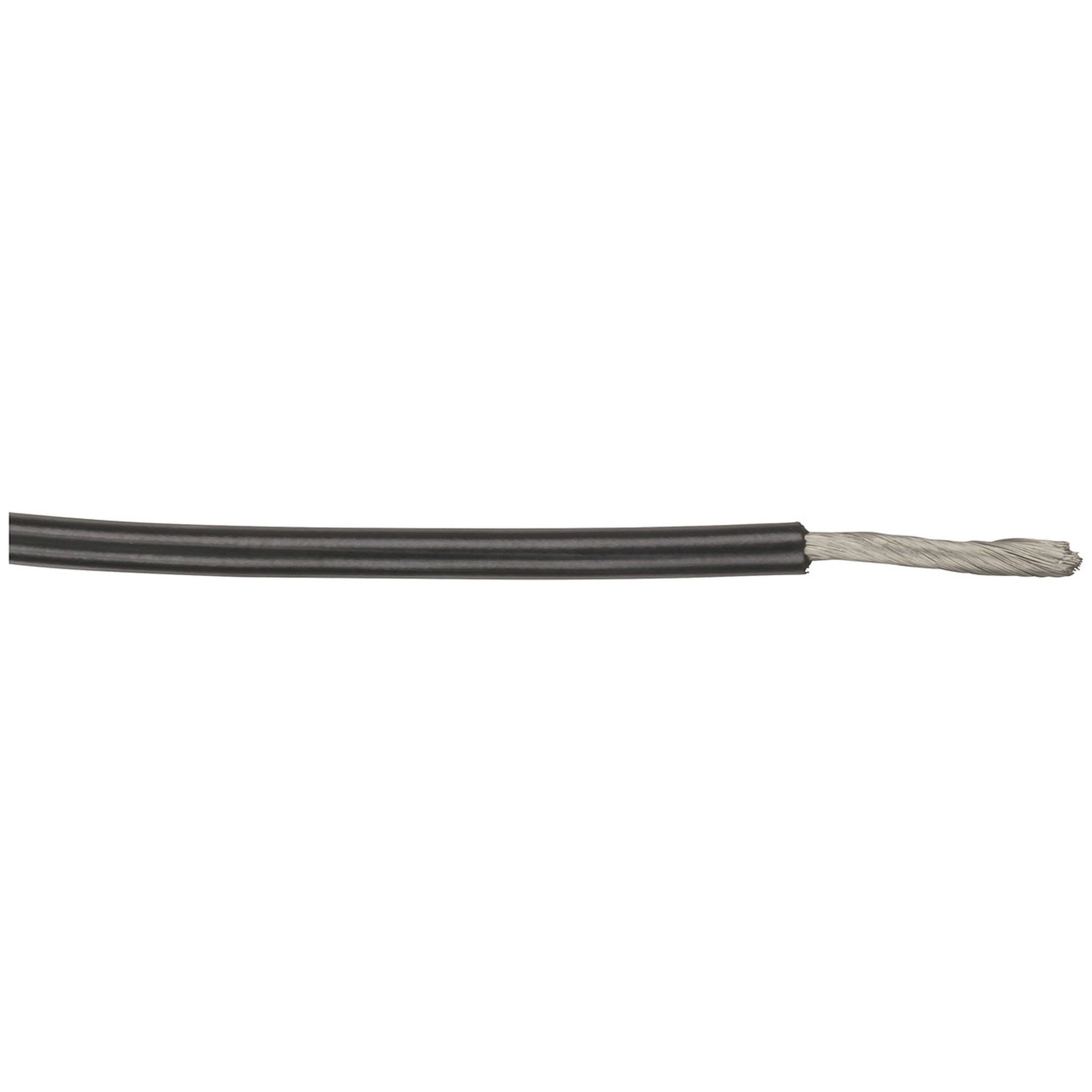

25A Automotive DC Power Cable - Black - Sold as 100m roll
- Cat No:
- WH3082
Sold as:Roll (100 Metre)
In Stock$4.45
Description
High quality flexible power cable for automotive and marine applications. Tinned copper cable suitable for up to 25A.
Rated to DC 25A Peak, 18A Constant
Specifications
- Wire Category
- Hook up / power
- Retail Sales Unit
- Metre
- Roll Length
- 100.0m
- AWG
- 12.0
- Cross Sectional Area
- 2.9mm²
- Outer Diameter
- 3.35mm
- Conductor Overall Diameter
- 1.99mm
- Individual Conductor Strand Diameter
- 0.3mm
- Number of Conductor Strands
- 41.0pc
- Resistance per Linear Metre
- 5.9mΩ
- Core Material
- Tin Plated Copper
- Number of Conductor Cores
- 1.0pc
- Colour
- Black
- DC current rating
- 25.0A
- Wire Category
- Automotive DC
- AWG
- 12.0
- Outer Diameter
- 4.5mm
- Conductor Overall Diameter
- 3.0mm
- Number of Conductor Strands
- 65.0
- Core Material
- Tinned Copper
- Resistance per Linear Metre
- 0.006Ω
- Retail Sales Unit
- Metre
- Roll Length
- 100m
- Insulation Material
- PVC
- Cable length
- 100.0m
- Packaged Dimensions
- 100.0cm(Length) x 0.28cm(Width) x 0.28cm(Height)
