HIRSCHMANN

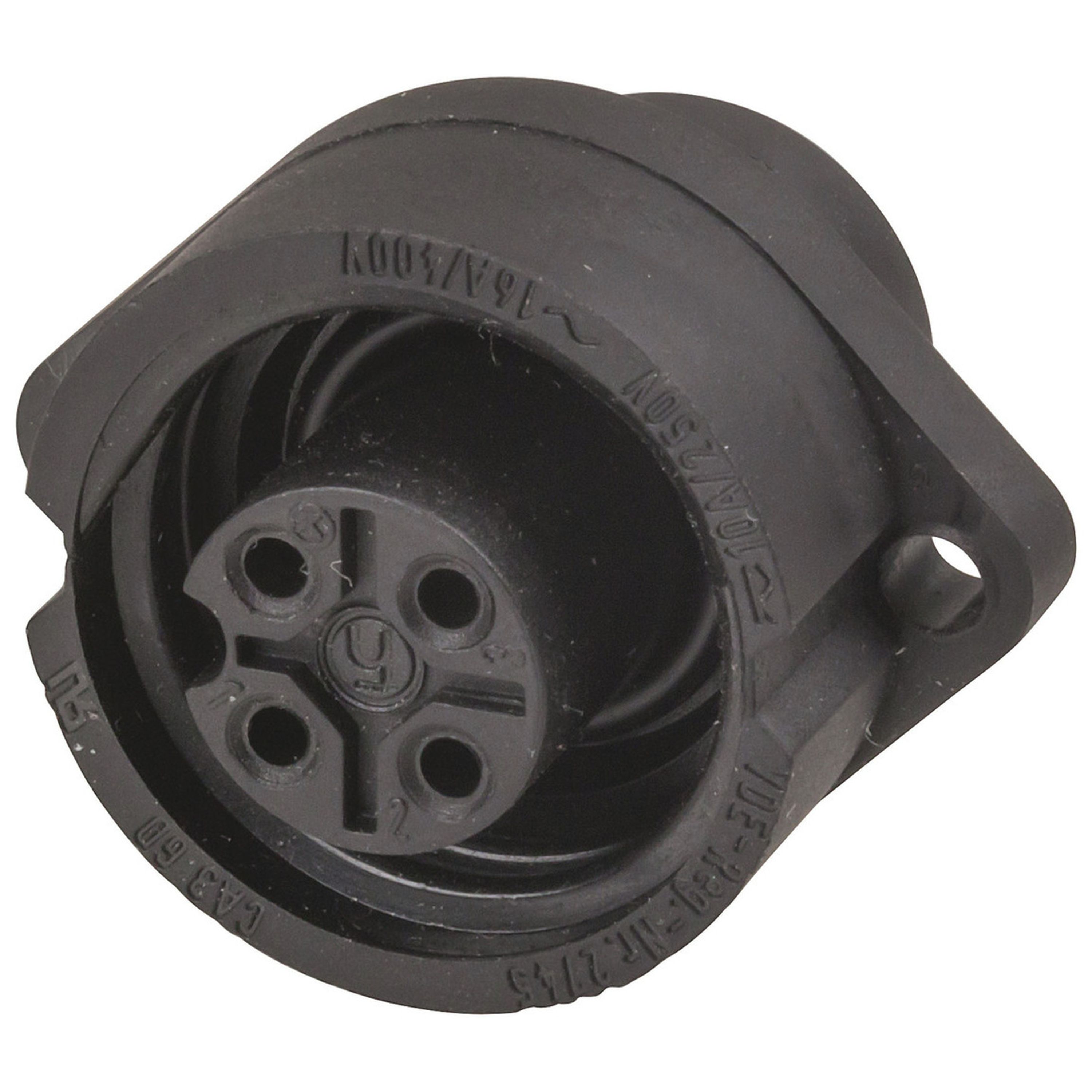

3 Pole and Pre-earth CA Series Panel Socket
- Cat No:
- PS1009
- MPN:
- 932-321-100
Sold as:1 Each
In Stock$15.50
Description
Hirschmann C16-1 Series or similar connectors offer 4 or 7 way (3 and 6 with plus a P.E. - or pre-engaging - earth contact). The mating parts securely screw together to form environmental protection to IP-67. For further technical information see specifications. A quality industry-standard connector.
Features:
Insulation resistance: ≥ 10^8ohm
Contact Resistance: ≤5mohm
Contact Material: Silver
Contact Screw: Screw type
Wire Conductor (max): 2.5mm²
Temperature range: -40°C to + 100°C
Protection: IP67 to IEC60529/DIN40050
Housing: Polyamide 6.6
Strain Relief: Screw clamp/Ring & Gland Nut (9mm)
Features:
Insulation resistance: ≥ 10^8ohm
Contact Resistance: ≤5mohm
Contact Material: Silver
Contact Screw: Screw type
Wire Conductor (max): 2.5mm²
Temperature range: -40°C to + 100°C
Protection: IP67 to IEC60529/DIN40050
Housing: Polyamide 6.6
Strain Relief: Screw clamp/Ring & Gland Nut (9mm)
Specifications
- Plug or Socket Type
- C16-1 Series
- Device
- Socket
- Attachment Method
- Screw
- Pack Quantity
- 1.0pc
- Contacts / Pins
- 3.0pc
- Case Material
- Plastic
- AC Voltage rating
- 400.0V
- AC current rating
- 16.0A
- DC Voltage
- 250.0V
- DC current rating
- 10.0A
- IP Rating certificate
- true
- Packaged Dimensions
- 3.0cm(Length) x 4.0cm(Width) x 3.0cm(Height)
