Wago

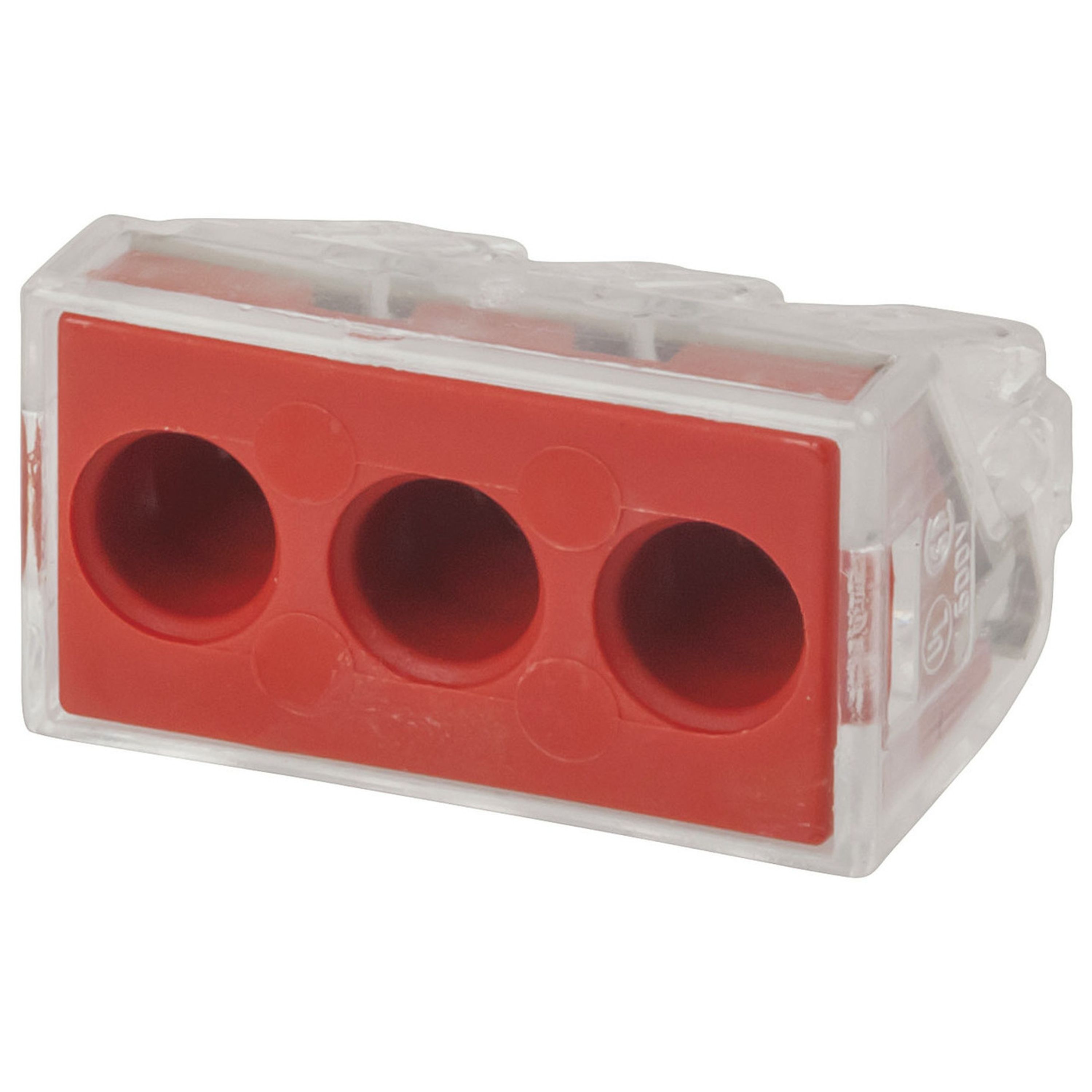

3 Way Red Wago Push Wire Connector
- Cat No:
- HM3233
- MPN:
- 773-173
Out of Stock
$1.95
Description
3 way WAGO 273 Series PUSH WIRE® connector for junction boxes suitable for solid conductors.
This reliable connector with PUSH WIRE® technology has proven itself a billion times over for more than 30 years running as an immediate solution for use with solid conductors with cross-sections up 4 mm².
The transparent housing also enables the electrician or installer to see at a glance whether all the conductors have been fully inserted and properly connected.
Specifications
- Type
- Spring Terminals
- Device
- Joining Terminal
- Cable Entry Diameter
- 2.25mm
- Number of Contacts
- 3pc
- Contact Material
- Metal
- Colour Coding
- Red
- AC current rating
- 10A
- DC current rating
- 10A
- Type
- Terminal Block
- Device
- Plug/Socket
- Length
- 20mm
- Number of Contacts
- 4
- Terminal Spacing
- 3.5mm
- Attachment Method
- Solder
- Contact Material
- Brass
- Insulation Dielectric Voltage Rating
- 1250V AC
- Body Material
- Polyamide
- AC Voltage Rating
- 125V
- AC Current Rating
- 6A
- Insulation Resistance
- 500MΩ
- Length
- 20.1mm
- Width
- 25.6mm
- Height
- 14.2mm
- Packaged Dimensions
- 2 x 2.5 x 1.5 cm
