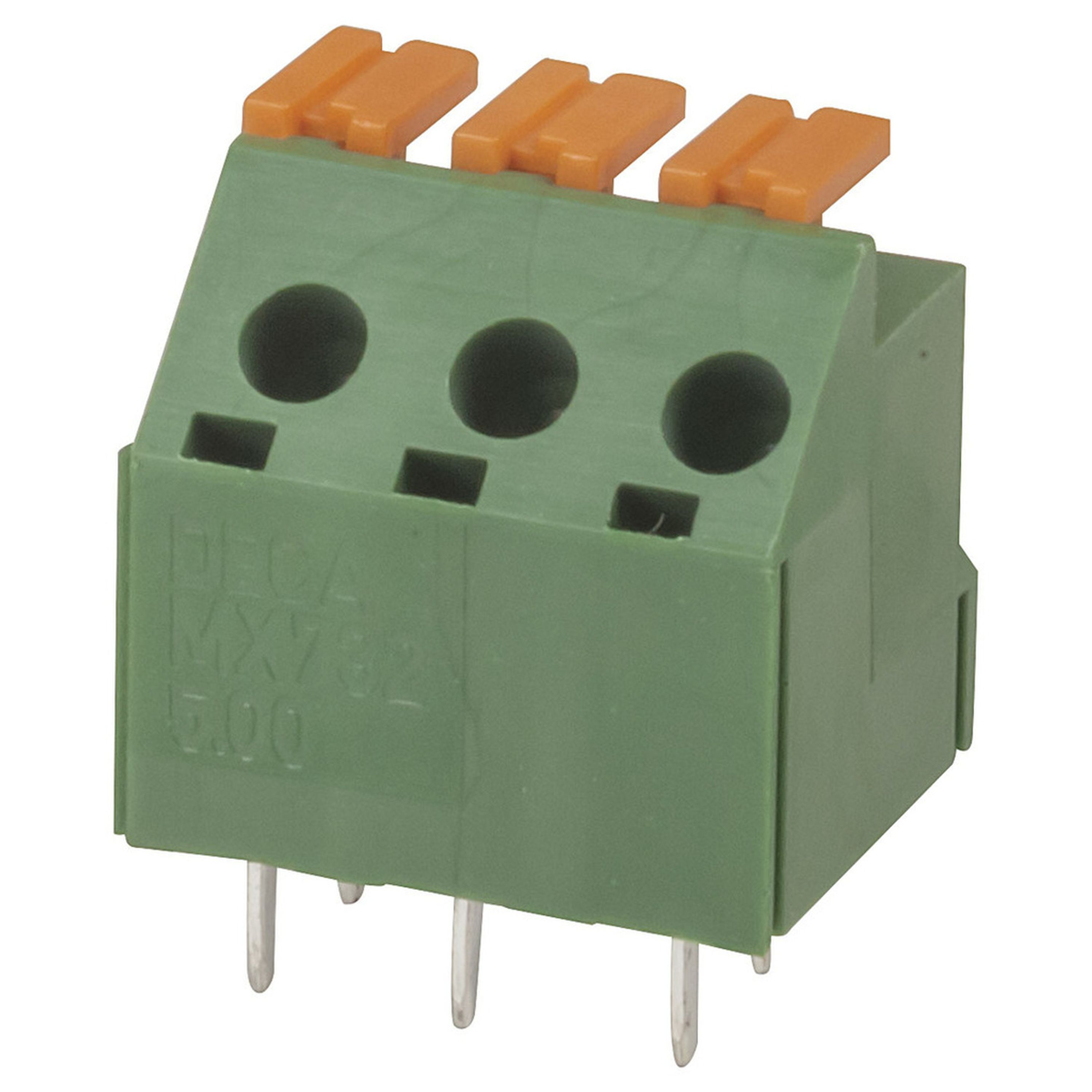

3 Way Spring Terminal Block
- Cat No:
- HM3142
Sold as:1 Each
In Stock$1.95
Description
These PCB terminal blocks retain the wire securely by a spring type clamp. The wire is held very securely but can be quickly released by depressing a release lever. The wire can be inserted/released indefinitely with virtually no deterioration of the contact/spring assembly. Both 2 & 3 pole are available and the housing of each is dove tailed to stack together and make any number of poles.
• Pitch: 5.0mm
• Housing material: PA66
• Contact/spring assembly: Stainless Steel
• Will accept wires from 22-14AWG
• Temperature rating: -40 to +105°C
• Power rating: 5kV rated / 250VAC Cat III
Also available:
HM3140 - 2 Way Spring Terminal Block
• Pitch: 5.0mm
• Housing material: PA66
• Contact/spring assembly: Stainless Steel
• Will accept wires from 22-14AWG
• Temperature rating: -40 to +105°C
• Power rating: 5kV rated / 250VAC Cat III
Also available:
HM3140 - 2 Way Spring Terminal Block
Specifications
- Type
- Spring Terminals
- Device
- Terminal
- Attachment Method
- Spring Terminals
- Number of Contacts
- 3.0pc
- Terminal Spacing
- 5.0mm
- AC Voltage rating
- 300.0V
- AC current rating
- 12.0A
- DC current rating
- 12.0A
- Colour
- Green
- Operating Temperature
- 105.0°C
- Length
- 15.0mm
- Width
- 13.0mm
- Height
- 15.0mm
- Packaged Dimensions
- 1.7cm(Length) x 1.5cm(Width) x 2.0cm(Height)
