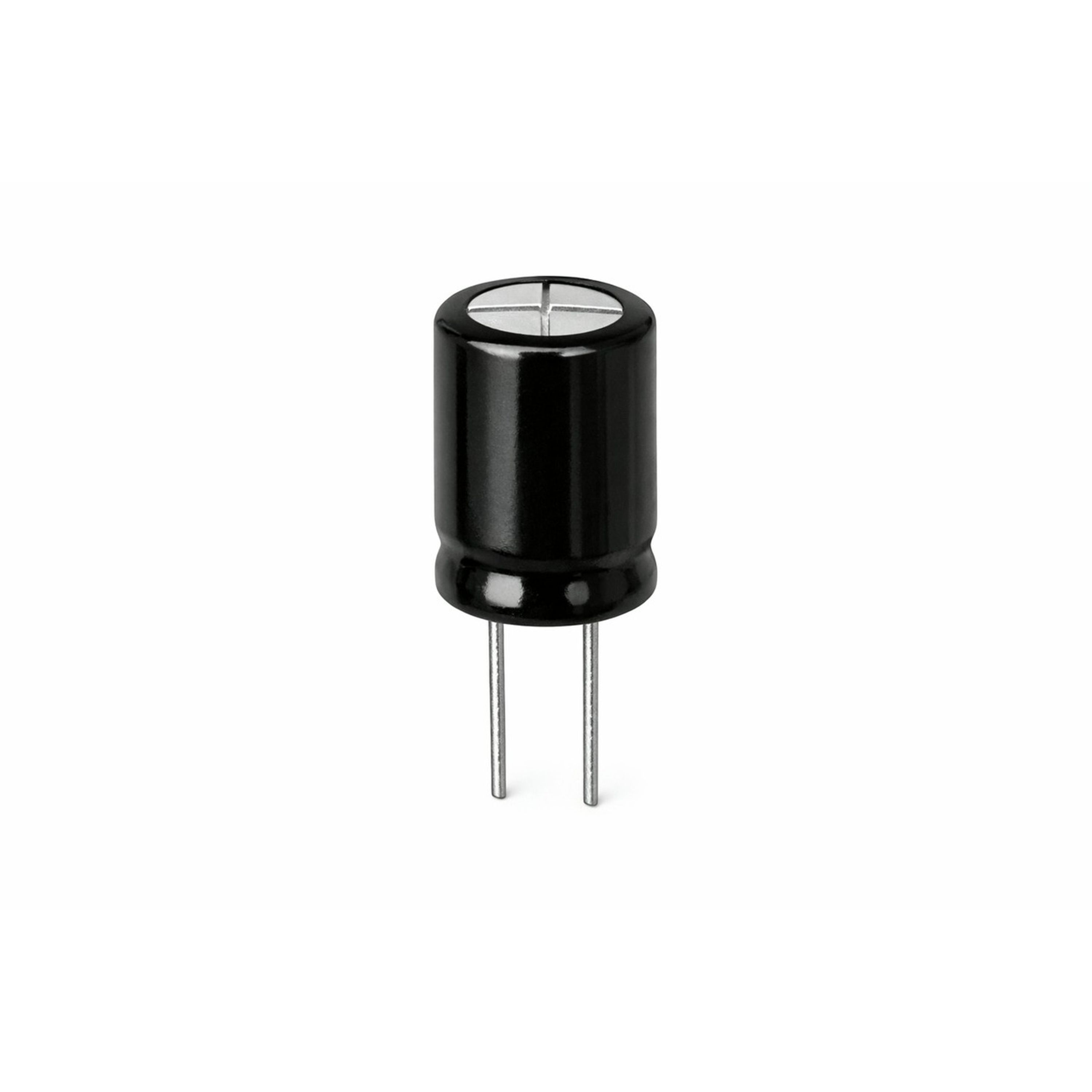

4.7uF 50V Bipolar Electrolytic Capacitor
- Cat No:
- RY6806
In Stock
$0.55
Description
Bipolar RB Electrolytic capacitors (non-polarised capactiors) which may be operated with either polarity are special constructions with two anodes connected in series. Ripple: 30mA
Specifications
- Capacitor type
- Electrolytic
- Pitch
- 2mm
- Component Type
- Electrolytic Capacitor
- Passive mount type
- Through Hole
- Pack Quantity
- 1pc
- Passive connector type
- Solder Legs
- Component package
- Radial
- Passive number of legs
- 2 count
- Passive marking code
- Printed
- Operating Temperature
- 85°C
- DC Voltage
- 50V
- Item capacitance
- 4.7µF
- Height
- 11mm
- Diameter
- 5mm
- Packaged Dimensions
- 0.5 x 0.5 x 3.8 cm
