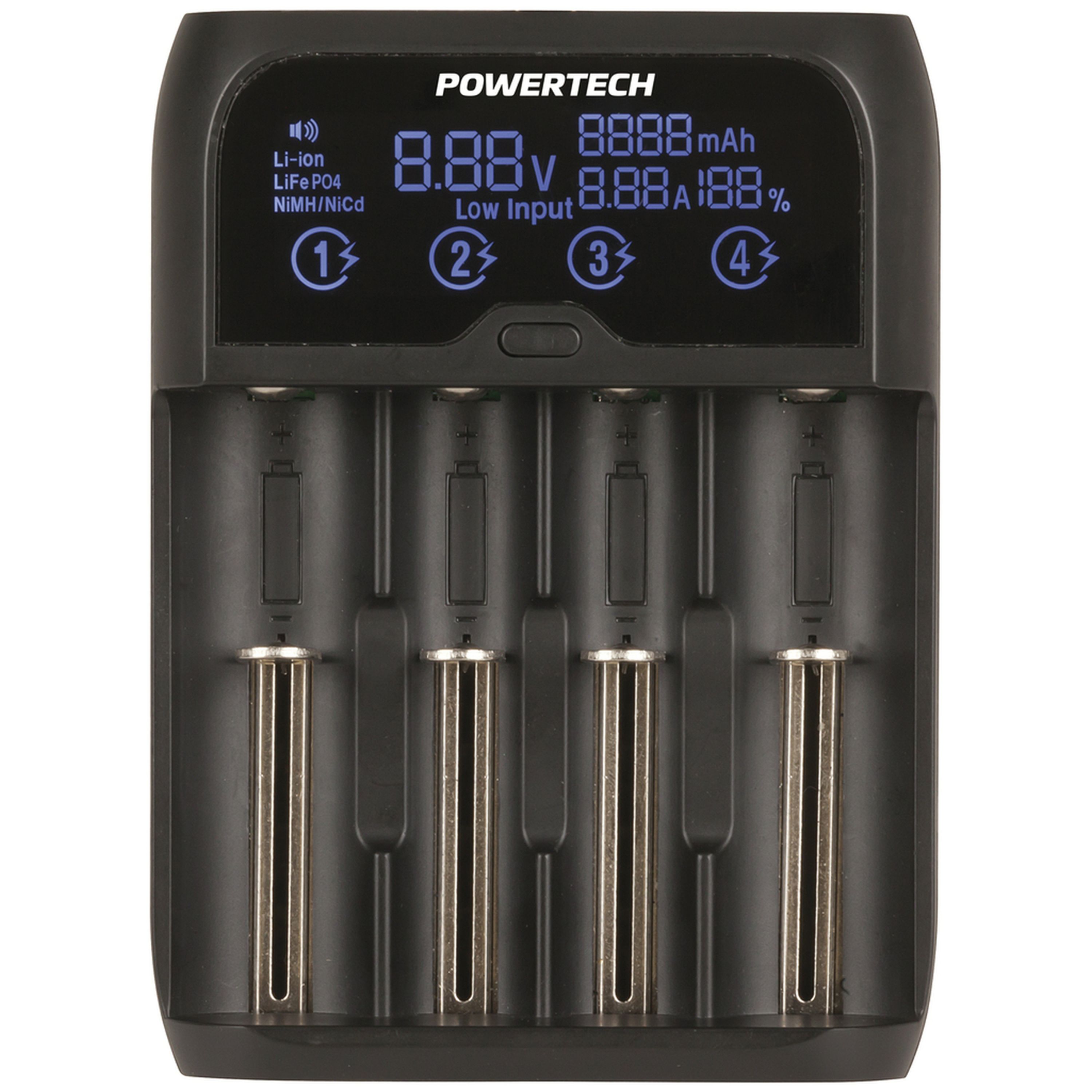

4-Channel Universal Fast Charger with LCD
- Cat No:
- MB3703
$61.95
Description
This intelligent charger has four independent charging slots to charge any combination of Ni-MH, Ni-Cd, Li-ion, or LiFePO4 cells at the same time. The microprocessor monitors each battery and provides a safe and effective charge using precise Pulse Width Modulation (PWM) technology. A single Li-ion or LiFePO4 cell can also be fast charged at up to 2A. The high contrast LCD screen provides real-time battery monitoring, including charging current (A), charging capacity (mAh), voltage (V) and battery power (%). Features include alarm and error messages for bad batteries, reverse polarity protection, short circuit, over-charge, and over-temperature. Power comes from an available USB port using the supplied USB Type-C power cable.
Features:
• Suits Ni-MH, N-Cd, Li-ion & LiFePO4
• Intelligent fast charging up to 2A
• Independent charging slots
• LCD screen
Supported Batteries:
3.6-3.7V Li-ion
3.2V LifePO4
1.2V Ni-MH/Ni-Cd
Specifications
- Type of Batteries
- Nickel Metal Hydride (Ni-MH),Nickel Cadmium (Ni-Cad),Lithium Ion,Lithium Ferrous Phosphate (LiFePO4)
- Cell Type(s) Charged
- AA,AAA,Sub-C,C,10440.0,14500.0,16340.0,17335.0,17500.0,17670.0,18350.0,18650.0,22650.0,26500.0,26650.0,14650.0,18500.0,18700.0,20700.0,21700.0,22700.0
- Number of Cells
- 4.0pc
- Multi-cell Charging Conditions
- Independent Charge Control for Each Battery Slot
- Charger Output Voltage
- 4.2V,3.65V,1.48V
- Charger Output Current
- 2.0A,1.0A,650.0mA,500.0mA
- Controller Type
- PWM
- Reverse Polarity Protection
- true
- USB Voltage Input
- 5.0V,5.0V
- USB Input Current
- 2.0A,2.0A
- USB Item Connection
- Type C
- USB Lead included
- true
- Width
- 96.0mm
- Height
- 129.0mm
- Depth
- 32.0mm
- Weight
- 170.0g
- Packaged Dimensions
- 13.5cm(Length) x 12.0cm(Width) x 3.5cm(Height)
