POWERTECH

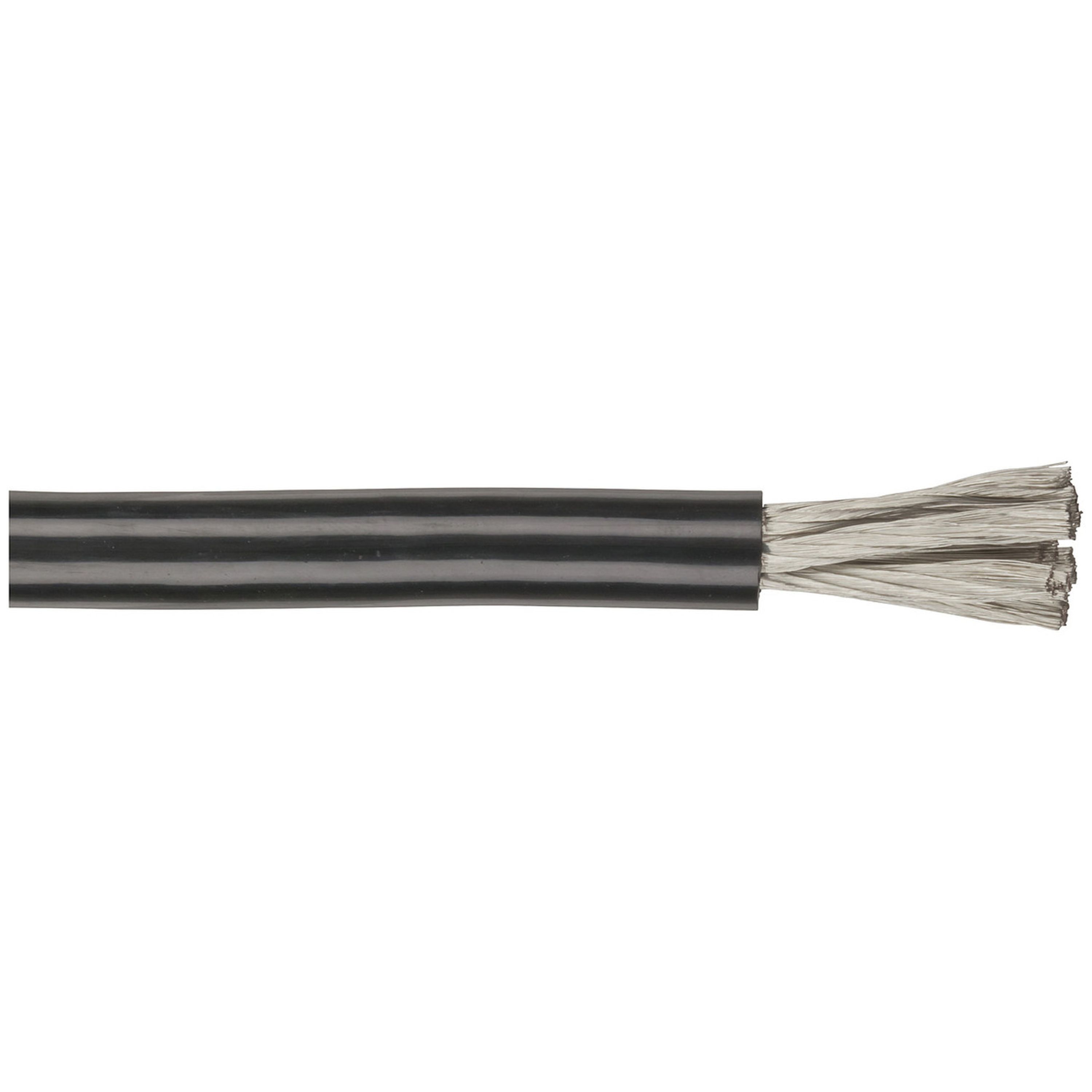

4 Gauge Super High Current OFC Cable - Black - Sold as 50m roll
- Cat No:
- WH3066
Sold as:Roll (50 Metre)
In Stock$17.95
Description
Run this from your battery to distribution boxes and then the 8GA to amps etc.
- Conductor Material: OFC
- Insulation Material: PVC
- Conductivity: 98% up
Rated to DC120A Peak, 100A Constant
Specifications
- Wire Category
- Hook up / power
- Retail Sales Unit
- Metre
- Roll Length
- 50.0m
- AWG
- 4.0
- Cross Sectional Area
- 21.0mm²
- Outer Diameter
- 10.0mm
- Conductor Overall Diameter
- 7.7mm
- Individual Conductor Strand Diameter
- 0.127mm
- Number of Conductor Strands
- 1.0pc
- Strand Weave Configuration
- 7 x 7 x 34
- Resistance per Linear Metre
- 0.97mΩ
- Core Material
- Tin Plated Copper
- Number of Conductor Cores
- 1.0pc
- Colour
- Black
- Operating Temperature
- -10.0°C-90.0°C
- DC current rating
- 100.0A
- Wire Category
- High Current OFC
- AWG
- 4.0
- Outer Diameter
- 10.0mm
- Conductor Overall Diameter
- 6.5mm
- Number of Conductor Strands
- 1862.0
- Core Material
- Oxygen Free Copper
- Resistance per Linear Metre
- 0.85 mΩ
- Retail Sales Unit
- Metre
- Roll Length
- 50m
- Insulation Material
- PVC
- Cable length
- 50.0m
- Packaged Dimensions
- 100.0cm(Length) x 1.0cm(Width) x 1.0cm(Height)
