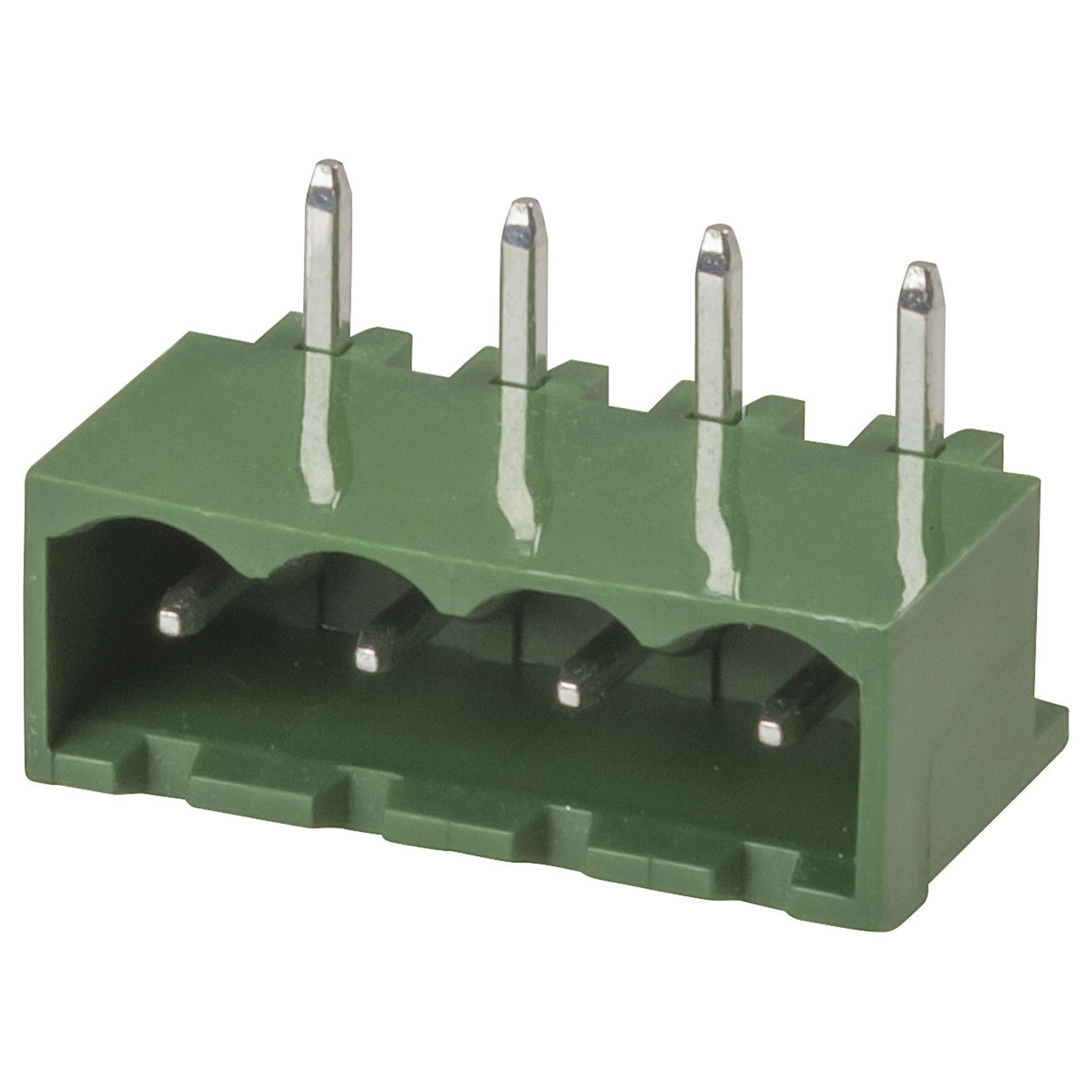

4 Pole PC Mount Pluggable Header - 5.08mm - Horizontal
- Cat No:
- HM3104
In Stock
$2.25
Description
Available in both horizontal- plug and vertical- plug versions, these quality headers simply solder to a PC board and are for the Pluggable Terminal Blocks.
- Made from Polyamide66 plastic (UL94V- 0)
- 1.0mm tin- plated brass solder pins
- Excellent current and insulation characteristics.
- PCB hole diameter: 1.5mm
Specifications
- AC Voltage rating
- 300.0V
- AC current rating
- 12.0A
- Type
- Header
- Device
- Horizontal
- Number of Contacts
- 4.0
- Body Material
- Polyamide 66
- Colour
- Green
- Terminal Spacing
- 5.08mm
- Attachment Method
- PCB Solder
- AC Voltage Rating
- 300V
- AC Current Rating
- 12A
- Type
- Single Row Header
- Device
- Plug
- Attachment Method
- PCB
- Pack Quantity
- 1.0pc
- Number of Pins
- 4.0pc
- Pin Spacing
- 5.08mm (0.2")
- Pin Size
- 1.0mm
- Pin Material
- Tin Plated Brass
- Insulation Dielectric Voltage Rating
- 2000.0V
- Insulation Resistance
- 5000.0MΩ
- Packaged Dimensions
- 2.0cm(Length) x 1.0cm(Width) x 1.0cm(Height)
