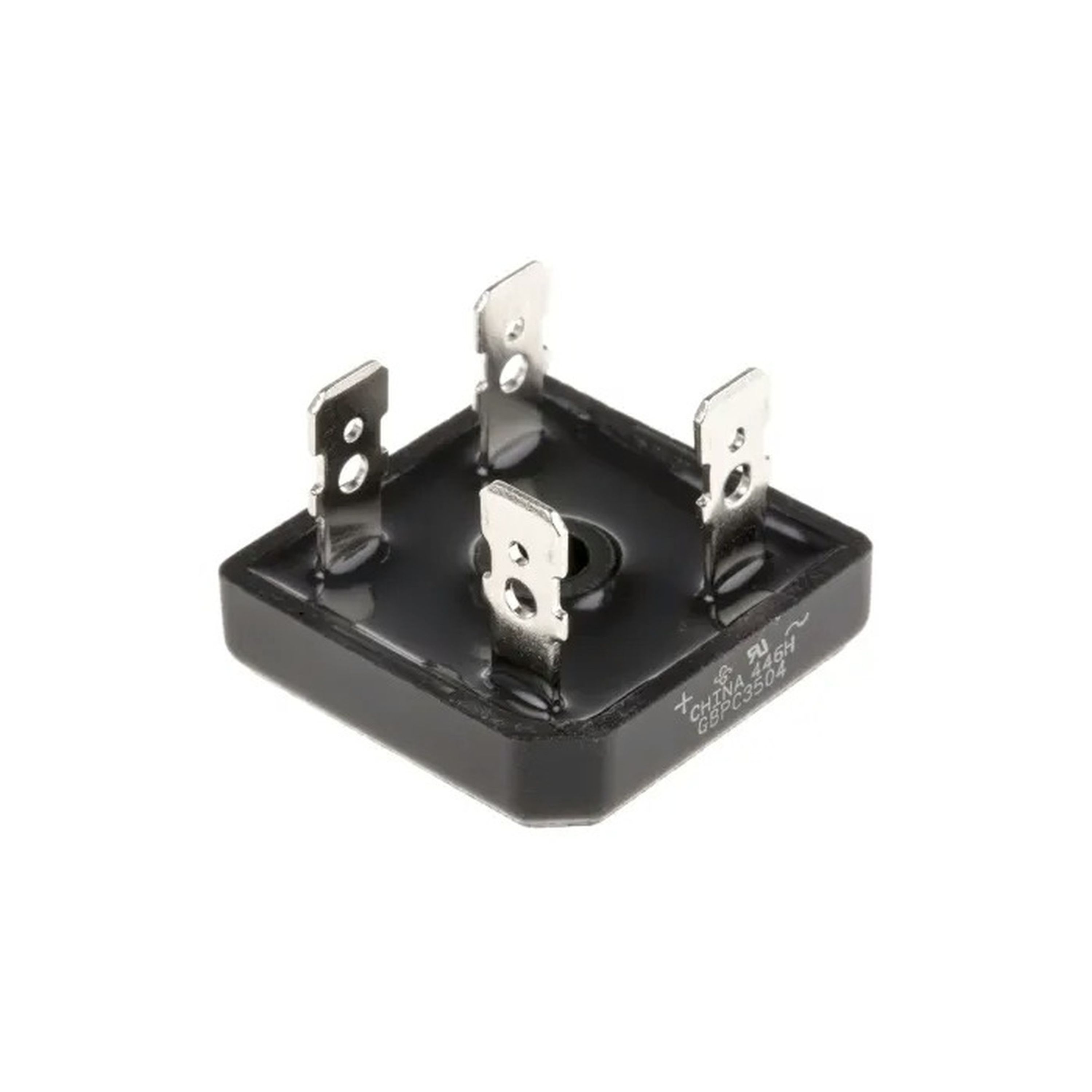

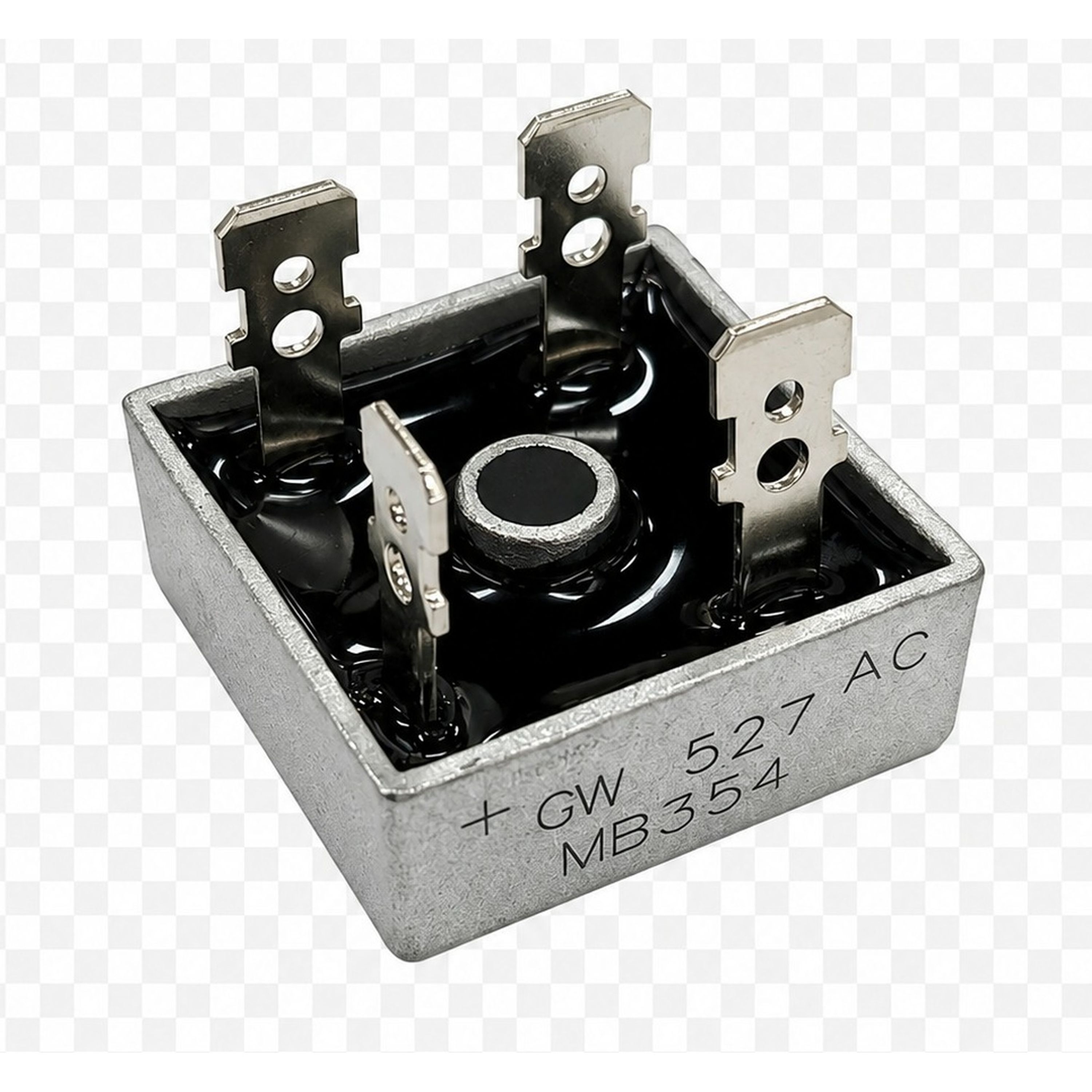

400V 35A Bridge Rectifier
- Cat No:
- ZR1324
In Stock
$6.95
Description
· Low Reverse Leakage Current
· High Conductivity Metal Case
· Any Mounting Position
· Surge Rating Of 400 Amps
· Operating Temperature: -55°C to +150°C
Specifications
- Diode Type
- Bridge rectifier
- Diode Composition
- Silicon
- Diode forward voltage drop
- 1.2V
- Peak Reverse Voltage
- 400.0V
- Diode maximum current
- 35.0A
- Diode package
- bridge rectifier (vertical or horizontal round or square)
- Packaged Dimensions
- 2.7cm(Length) x 2.7cm(Width) x 2.3cm(Height)
