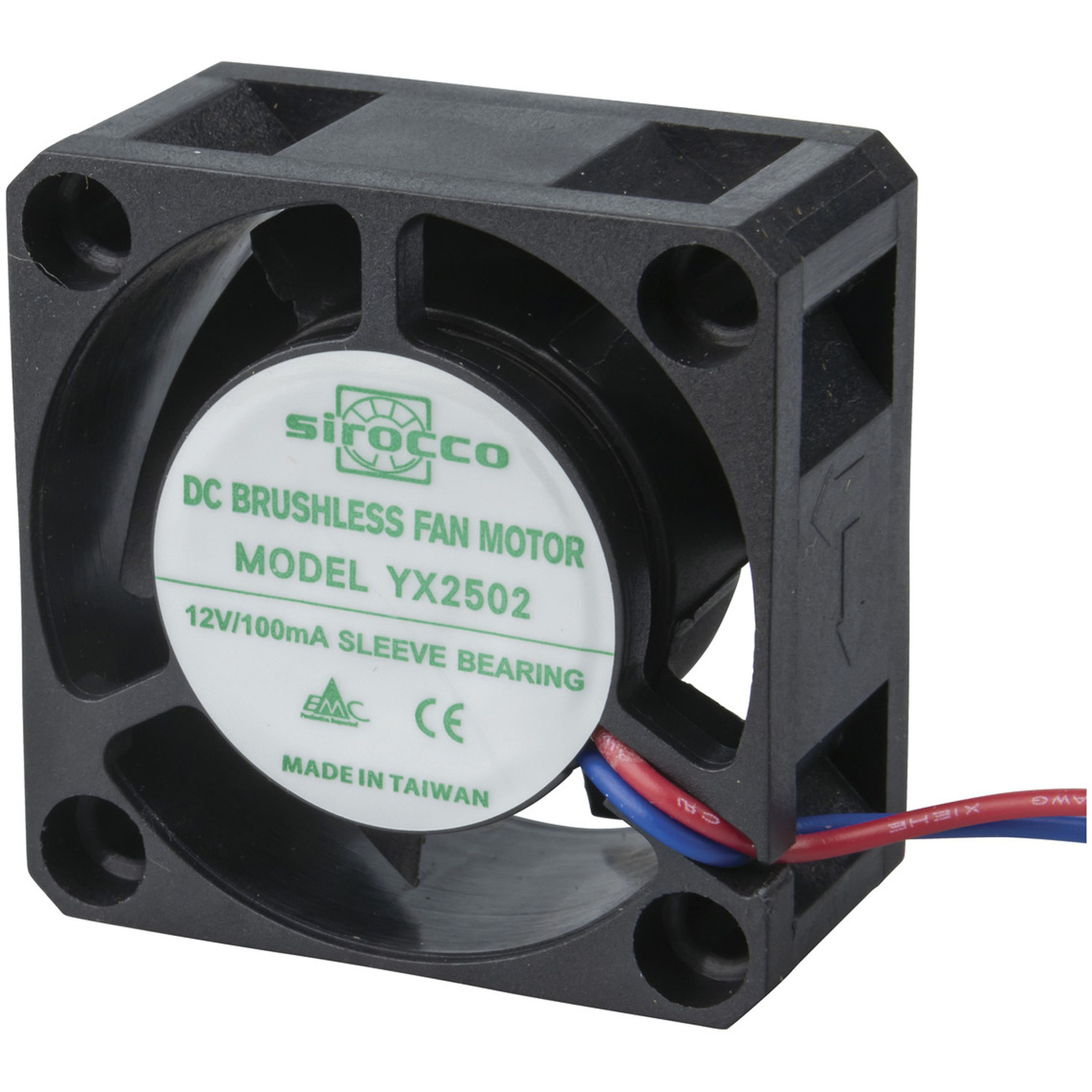

40mm 12V DC Fan
- Cat No:
- YX2502
Sold as:1 Each
In Stock$24.95
Description
Suitable for computers, office machinery, appliances, copying machines, power units, amplifiers, automatic vending machines, air conditioning, medical machines etc.
- Long life - 60,000 hours @ 25degC, 30,000 hours @ 40degC
- Ball bearing: 100,000 hours @ 25degC
- Can be mounted on suction or discharge side
- Wiring will not burn out, even if rotating parts are restricted.
Specifications
- type of fan
- Axial
- fan air volume cubic metres
- 0.215m³/min
- fan air volume cubic feet
- 7.6ft³/min
- fan RPM
- 7000.0RPM
- fan noise
- 32.0dB
- fan bearing type
- Sleeve
- fan housing material
- Plastic
- fan impeller material
- Plastic
- Fan Operational Life at 25°C
- 60000.0hr
- fan number of wires
- 2.0pc
- fan connector type
- Flyleads
- DC Plugpack Voltage
- 12.0V
- DC Current Draw
- 100.0mA
- Item Connection
- Flyleads
- Rated for AU Mains
- false
- Product Dimensions
- 40.0 x 40.0 x 20.0 mm
- Packaged Dimensions
- 6.8cm(Length) x 3.2cm(Width) x 6.6cm(Height)
