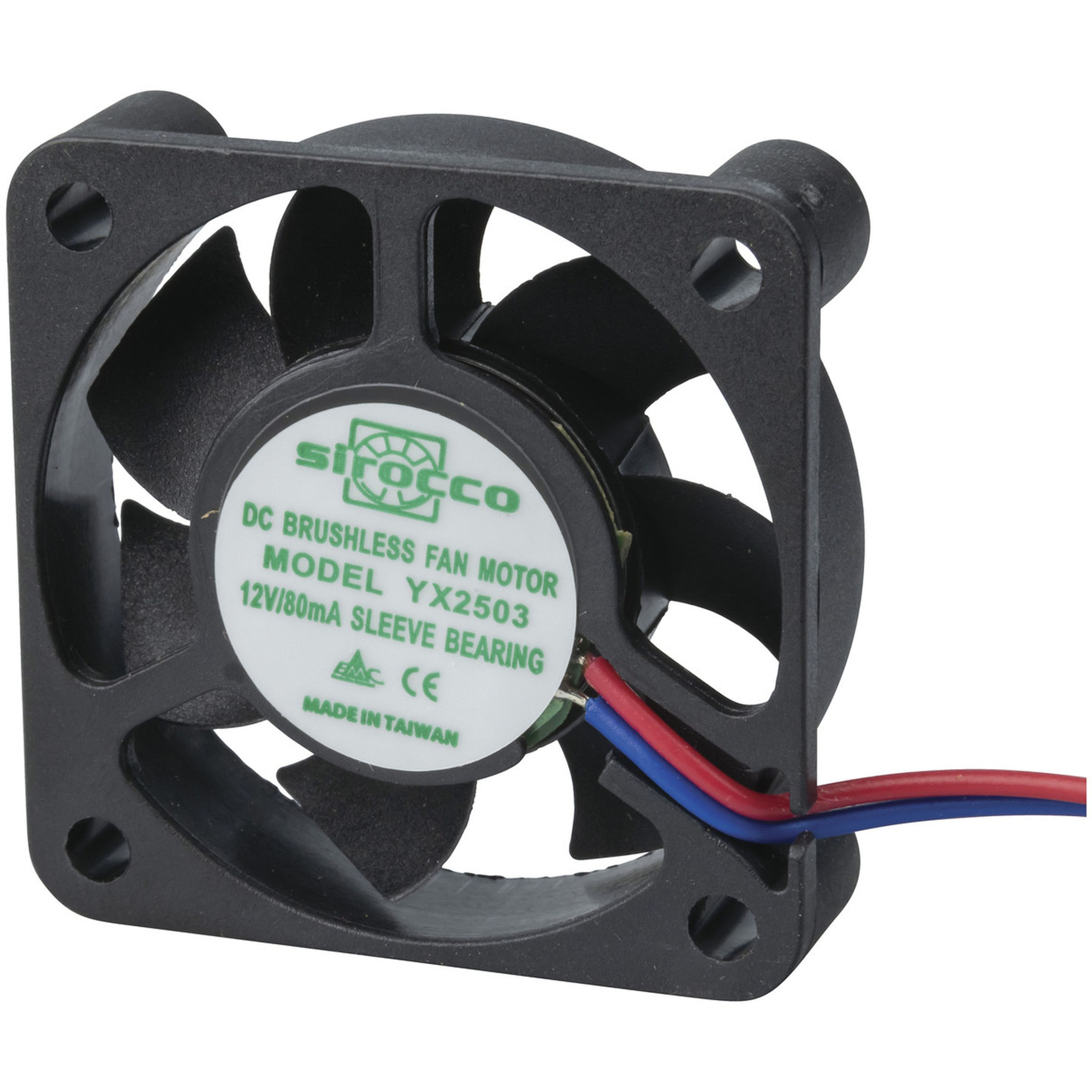

40mm 12V DC Thin Fan
- Cat No:
- YX2503
Sold as:1 Each
In Stock$19.95
Description
Suitable for computers, office machinery, appliances, copying machines, power units, amplifiers, automatic vending machines, air conditioning, medical machines etc.
- Long life - 60,000 hours @ 25degC, 30,000 hours @ 40degC
- Ball bearing: 100,000 hours @ 25degC
- Can be mounted on suction or discharge side
- Wiring will not burn out, even if rotating parts are restricted.
Specifications
- type of fan
- Axial
- fan air volume cubic metres
- 0.16m³/min
- fan air volume cubic feet
- 5.4ft³/min
- fan RPM
- 6000.0RPM
- fan noise
- 30.0dB
- fan bearing type
- Sleeve
- fan housing material
- Plastic
- fan impeller material
- Plastic
- Fan Operational Life at 25°C
- 60000.0hr
- fan number of wires
- 2.0pc
- fan connector type
- Flyleads
- DC Plugpack Voltage
- 12.0V
- DC Current Draw
- 80.0mA
- Item Connection
- Flyleads
- Product Dimensions
- 40.0 x 40.0 x 10.0 mm
- Packaged Dimensions
- 9.3cm(Length) x 9.3cm(Width) x 3.8cm(Height)
