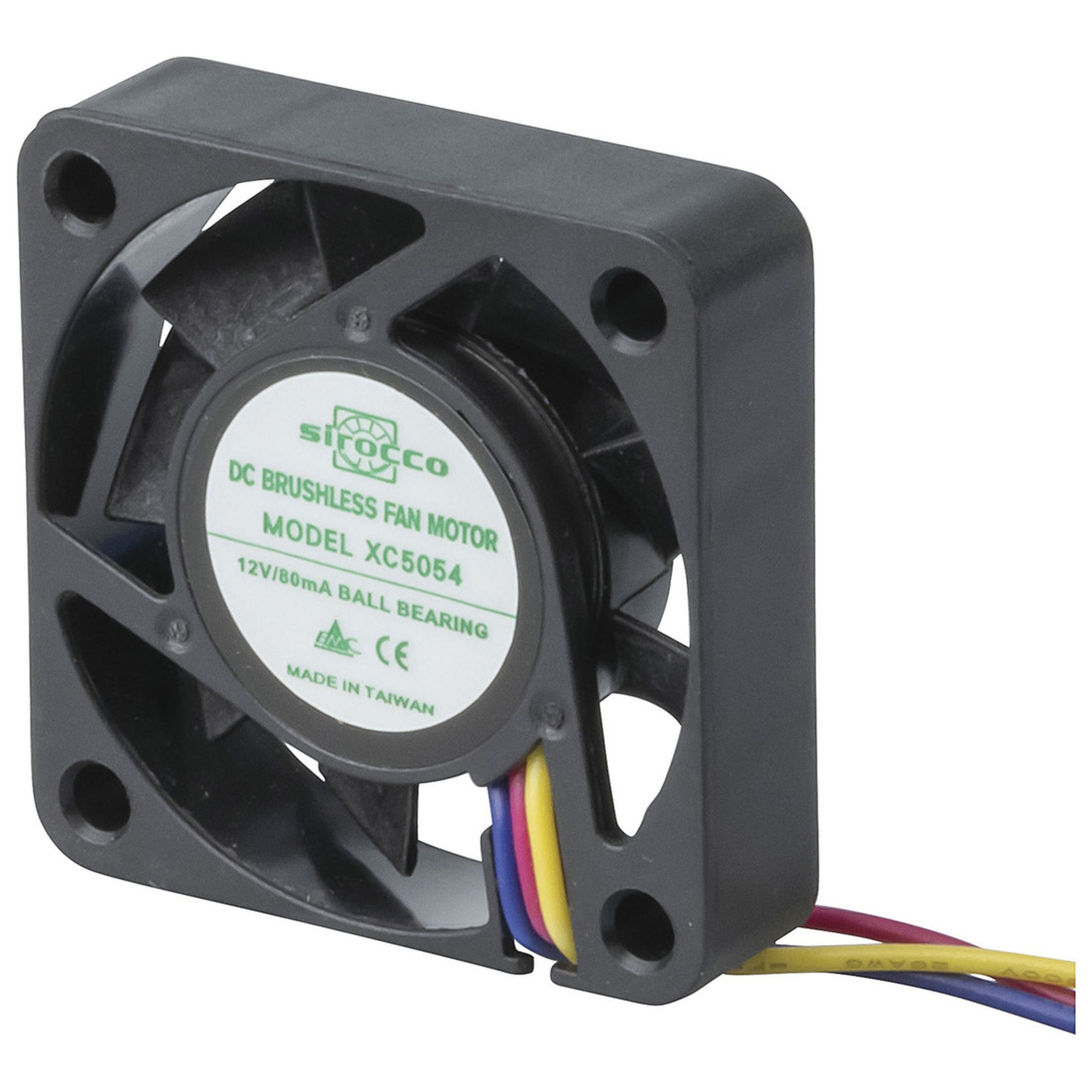

40mm 3 Wire 12V DC Ball Bearing Fan
- Cat No:
- XC5054
Out of Stock
$19.95
Description
The third wire provides a pulse output. 1 pulse per revolution.
Specifications
- fan air volume cubic metres
- 0.16m³/min
- fan air volume cubic feet
- 5.4ft³/min
- fan RPM
- 6000.0RPM
- fan noise
- 30.0dB
- fan bearing type
- Ball
- fan housing material
- Fibreglass Reinforced Plastic
- fan impeller material
- Fibreglass Reinforced Plastic
- Fan Operational Life at 25°C
- 100000.0hr
- fan number of wires
- 3.0pc
- fan connector type
- Flyleads
- Tachometer Output
- true
- DC Plugpack Voltage
- 12.0V
- DC Current Draw
- 80.0mA
- Length
- 40.0mm
- Width
- 10.0mm
- Height
- 40.0mm
- Packaged Dimensions
- 6.8cm(Length) x 6.6cm(Width) x 3.0cm(Height)
