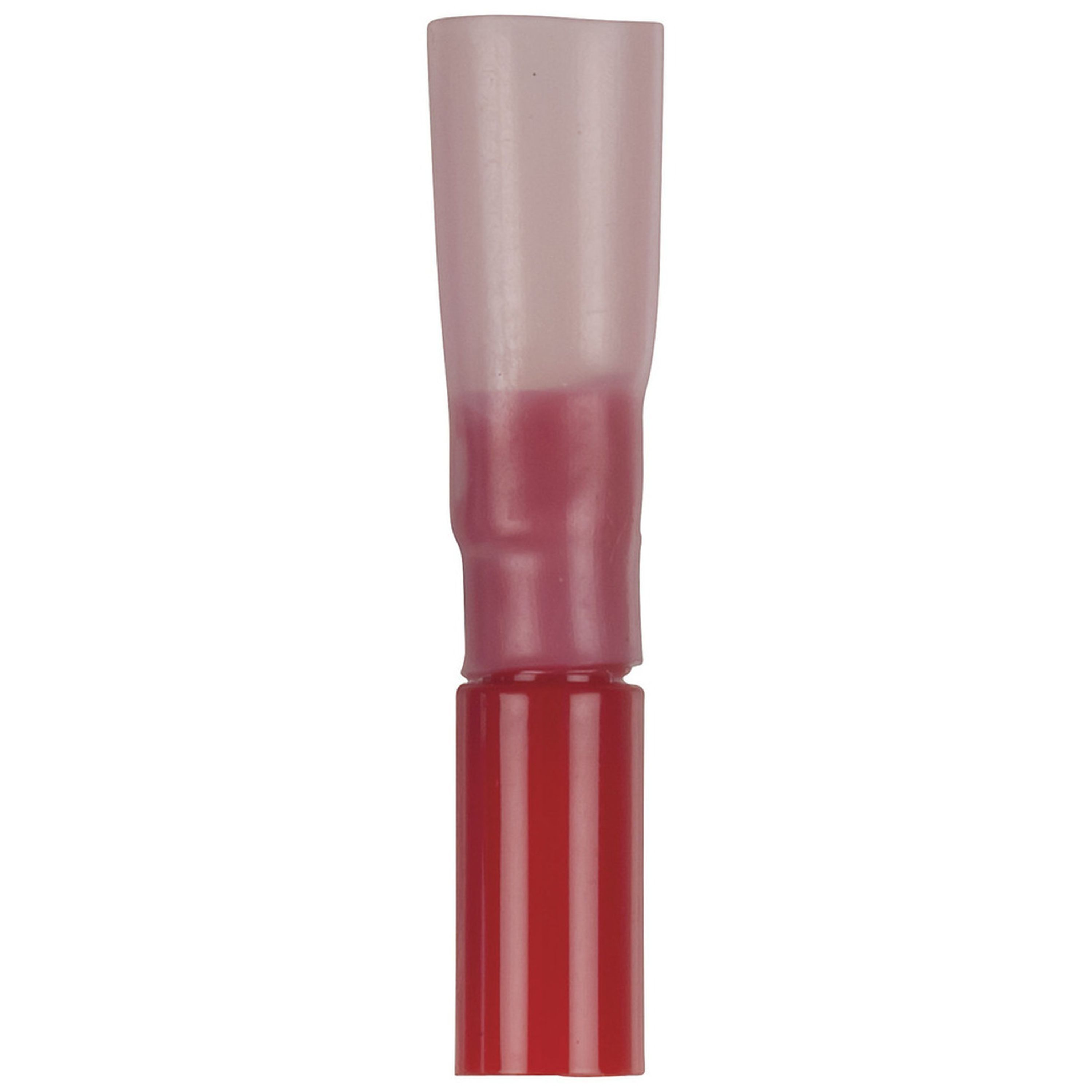

4mm Bullet Female - Red - Packet of 8 - Self Sealing Quick Connectors
- Cat No:
- PT4802
Sold as:1 Each
In Stock$8.25
Description
Self Sealing Quick Connectors
The unique heat sensitive sealing gel in these quick connectors will automatically flood the crimp joint with sealant as the heatshrink sleeve is heated. The resulting crimp connection is water and corrosion resistant and has good strain relief properties. 11 styles to choose from.
The unique heat sensitive sealing gel in these quick connectors will automatically flood the crimp joint with sealant as the heatshrink sleeve is heated. The resulting crimp connection is water and corrosion resistant and has good strain relief properties. 11 styles to choose from.
Specifications
- Type of quick connector
- Bullet 4mm
- Device
- Socket
- Terminal Size
- 4.0mm
- Colour Coded
- Red
- Pack Quantity
- 8.0pc
- Insulation
- Heatshrink Sleeve
- Wire Diameter
- 1.0mm-1.0mm
- Cable Entry Diameter
- 5.0mm,5.0mm
- Device Type
- Heat Shrink QC
- Outer Diameter
- 4.3mm
- Pack Quantity
- 8.0
- Insulation
- Nylon
- Attachment Method
- Pliers Crimp
- Wire Size (Cross Section)
- 0.4-0.9mm
- Contact Material
- Copper
- Wire Gauge
- 22-18 AWG
- Colour
- Red
- Terminal Size
- 4.0mm
- Wire Diameter
- 1.0mm
- IP Rating
- IP67
- Packaged Dimensions
- 11.8cm(Length) x 6.5cm(Width) x 1.6cm(Height)
