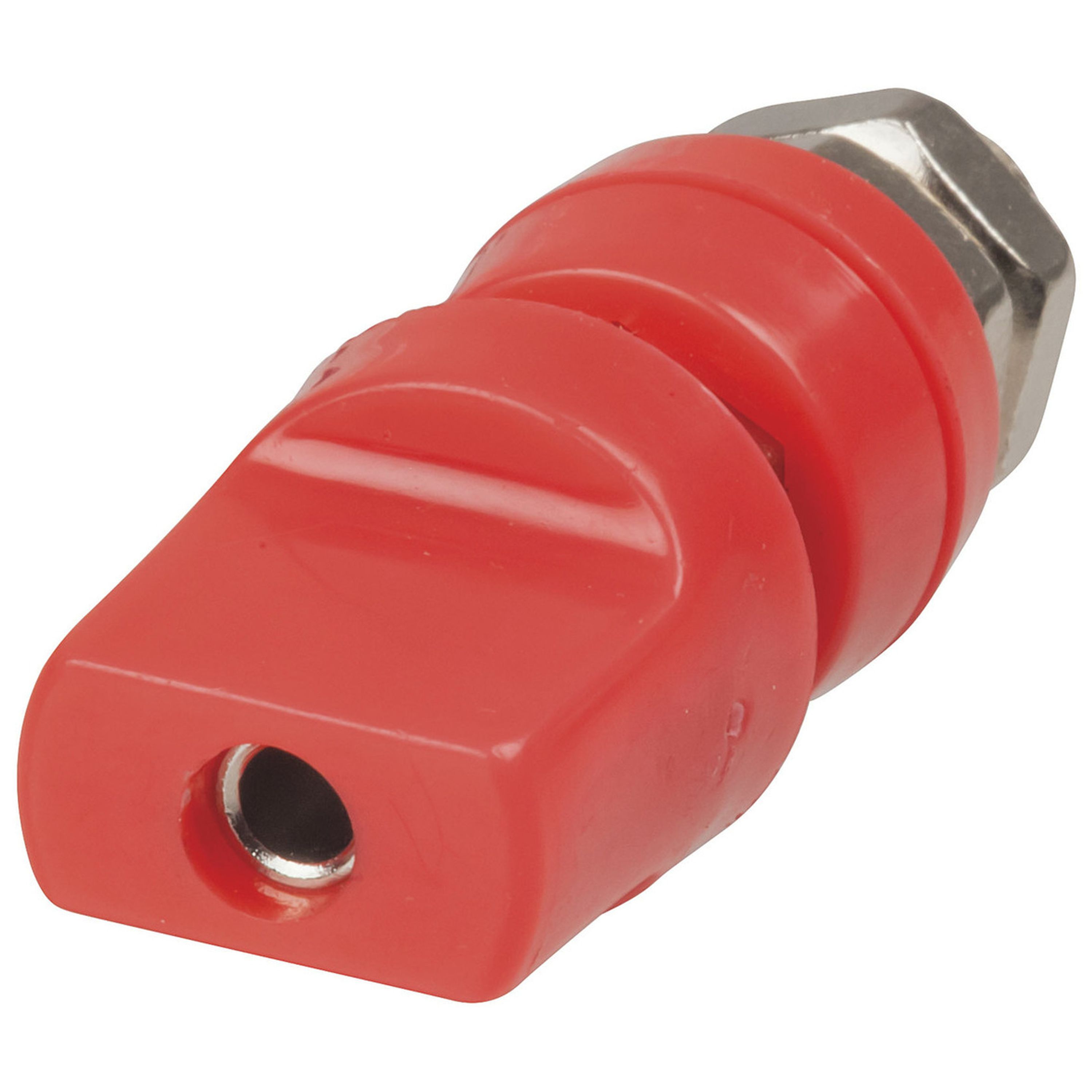

50A Jumbo Binding Post - Red
- Cat No:
- PT0465
In Stock
$6.95
Description
High quality nickel-plated brass posts, with nickel-plated steel nut and washer, rated at 50A.
Thick ABS screw-down.
Suitable for high power applications.
Specifications
- Plug or Socket Type
- Binding Post Terminals
- Attachment Method
- Screw
- Pack Quantity
- 1.0pc
- Contacts / Pins
- 1.0pc
- Case Material
- Plastic
- Contact Material
- Copper
- Colour Coded
- Red
- AC current rating
- 50.0A
- DC current rating
- 50.0A
- Depth
- 58.0mm
- Diameter
- 20.0mm
- Weight
- 33.0g
- Dimension for
- Other (details below)
- Dimensions details
- Installation hole
- Diameter
- 12.0mm
- Packaged Dimensions
- 5.9cm(Length) x 1.9cm(Width) x 2.0cm(Height)
