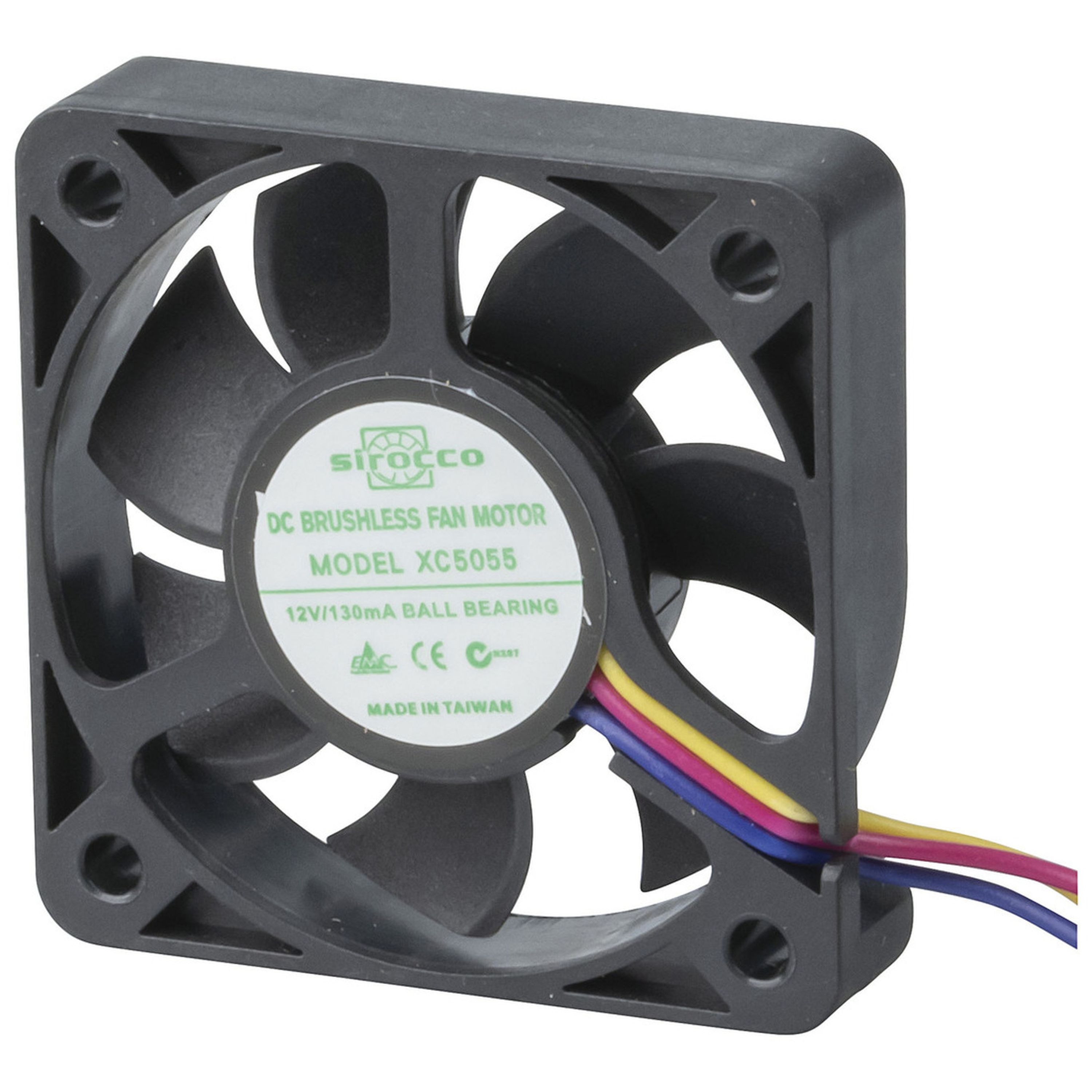

50mm 3 Wire 12V DC Ball Bearing Fan
- Cat No:
- XC5055
In Stock
$19.95
Description
The third wire provides a pulse output - 1 pulse per revolution.
Specifications
- type of fan
- Axial
- fan air volume cubic metres
- 0.33m³/min
- fan air volume cubic feet
- 11.6ft³/min
- fan RPM
- 5500.0RPM
- fan noise
- 31.0dB
- fan bearing type
- Ball
- fan housing material
- Fibreglass Reinforced Plastic
- fan impeller material
- Fibreglass Reinforced Plastic
- Fan Operational Life at 25°C
- 100000.0hr
- fan number of wires
- 3.0pc
- fan connector type
- Flyleads
- Tachometer Output
- true
- DC Plugpack Voltage
- 12.0V
- DC Current Draw
- 130.0mA
- Item Connection
- Flyleads
- Length
- 50.0mm
- Width
- 10.0mm
- Height
- 50.0mm
- Packaged Dimensions
- 6.5cm(Length) x 6.5cm(Width) x 3.0cm(Height)
