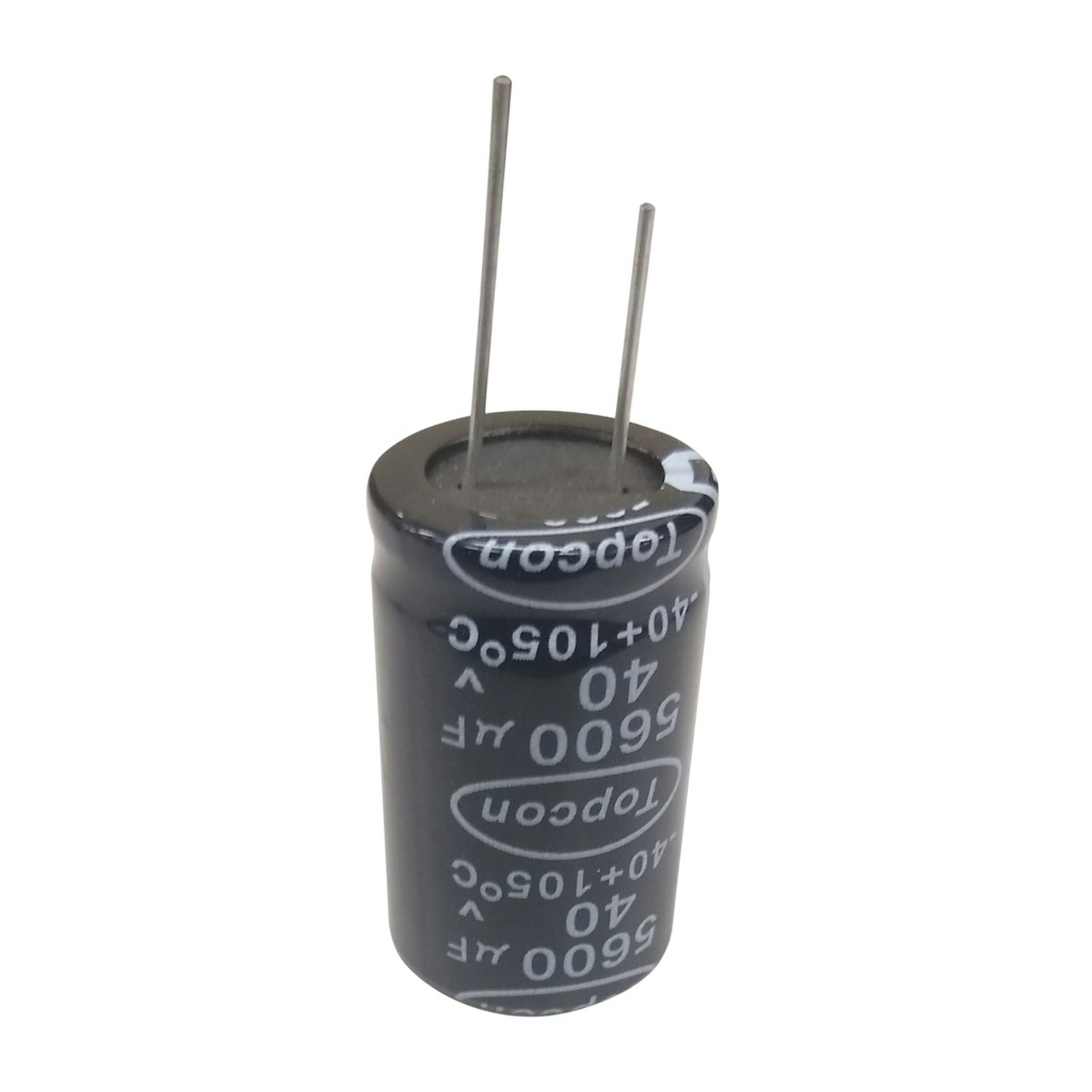

5600uF 40VDC Electrolytic RP Capacitor
- Cat No:
- RU6709
In Stock
$8.95
Description
This style of capacitor is distinguished because, whilst bulky, does not need a chassis clamp. Fixing is by the stout lead wires. While soldered, retention is generally adequate. For applications where vibration is an issue, a dab of silicone under the component is recommended. 85°C rated.
Specifications
- Capacitor type
- Electrolytic
- Component Type
- Electrolytic Capacitor
- Passive mount type
- Through Hole
- Pack Quantity
- 1pc
- Passive connector type
- Solder Legs
- Component package
- Radial
- Passive number of legs
- 2 count
- Passive marking code
- Printed
- DC Voltage
- 40V
- Item capacitance
- 5600µF
- Height
- 42mm
- Diameter
- 26mm
- Packaged Dimensions
- 7 x 2.5 x 2.5 cm
