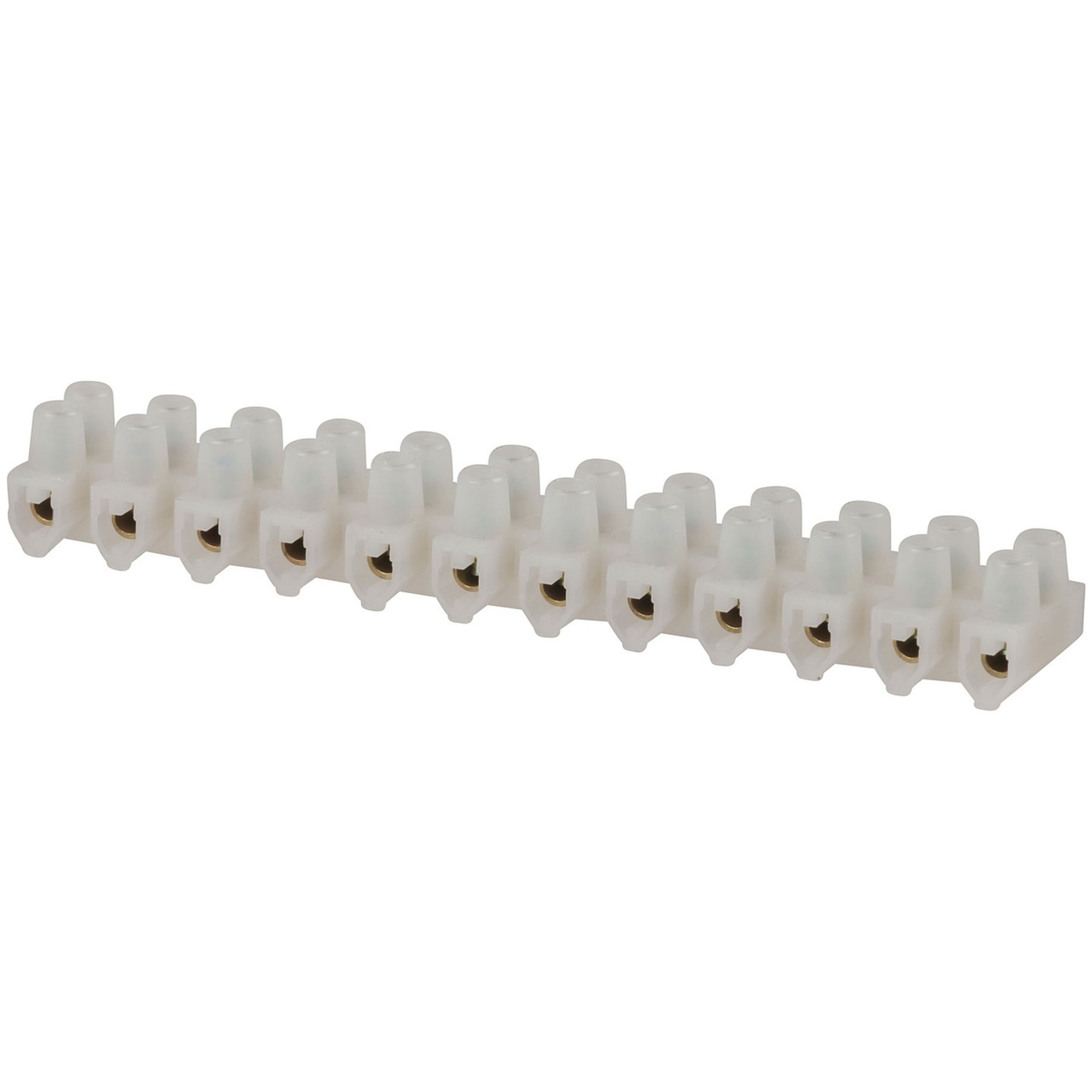

6 Amp 12-way Screw Terminal Strip
- Cat No:
- HM3194
Sold as:1 Each
In Stock$2.45
Description
12 way & capable of being divided with a sharp knife. Each terminal block has a sturdy mounting hole on a fixed pitch.
Temperature: -35°C ~ 110°C
CurrentCable dia.LengthPitchCat No.6A3.3mm114.5mm10mmHM-319410A4.2mm128.8mm11mmHM-319615A4.5mm136.8mm12mmHM-320030A5.6mm164.5mm15mmHM-319860A6.6mm193mm16.3mmHM-3204
Specifications
- Type
- Screw Terminal
- Device
- Joining Terminal
- Attachment Method
- Screw Terminals
- Cable Entry Diameter
- 3.3mm
- Number of Contacts
- 12.0pc
- Terminal Spacing
- 10.0mm
- Body Material
- Nylon
- AC Voltage rating
- 250.0V
- AC current rating
- 6.0A
- Type
- Terminal Block
- Device
- PCB Mount
- Length
- 10.5mm
- Number of Contacts
- 3.0
- Terminal Spacing
- 5.08mm
- Attachment Method
- Solder
- Body Material
- Polyamide
- Contact Material
- Brass
- AC Voltage Rating
- 250V
- AC Current Rating
- 10A
- Insulation Dielectric Voltage Rating
- 1500V AC
- Insulation Resistance
- 500MΩ
- Length
- 114.5mm
- Packaged Dimensions
- 12.4cm(Length) x 10.2cm(Width) x 3.4cm(Height)
