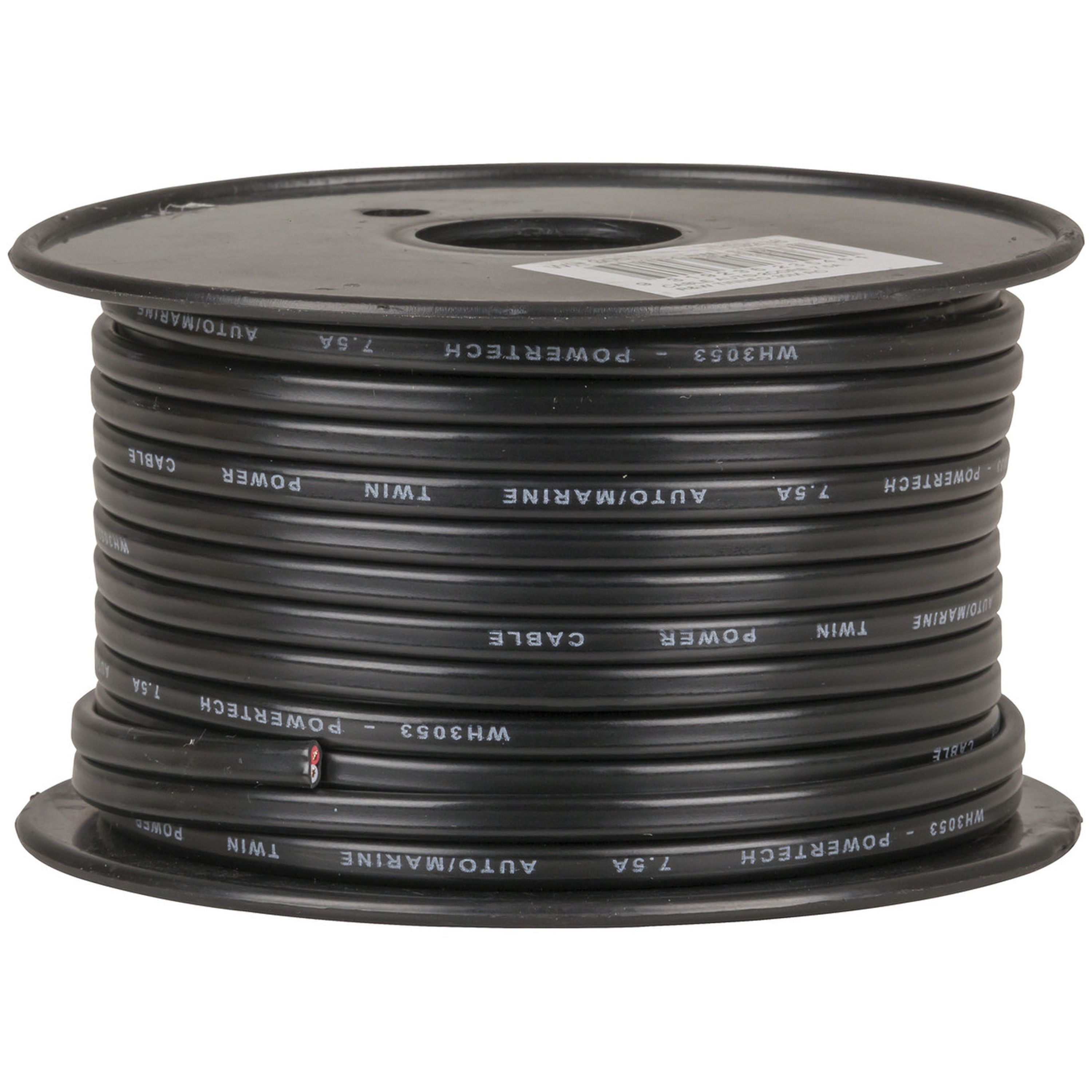

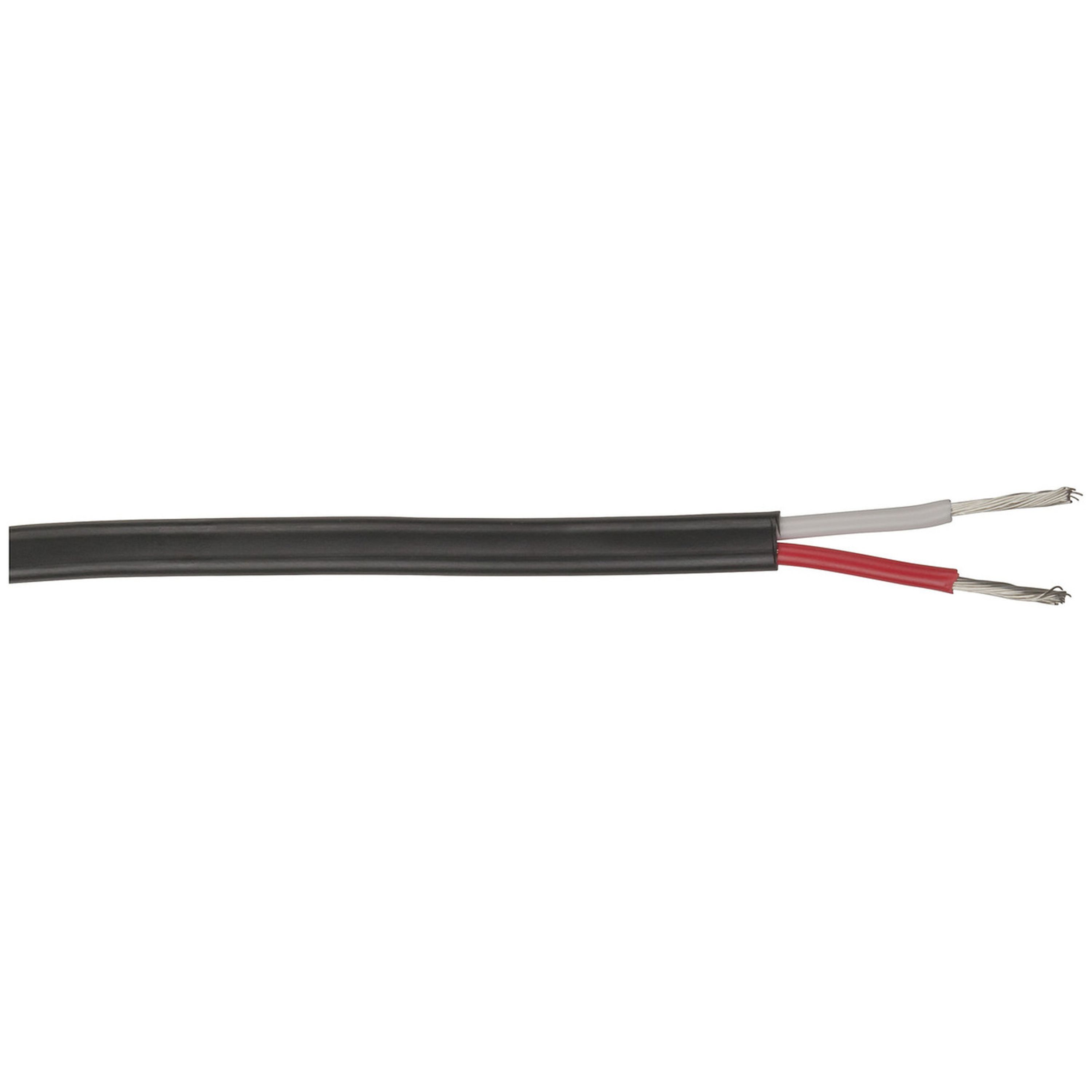

7.5A 2 Core Tinned DC Power Cable - 30m Roll - Red Black
- Cat No:
- WH3053
In Stock
$59.95
Description
Double insulated 2 core power cable suitable for automotive and boating applications. Tinned copper cable suitable for use in marine applications.
* PVC insulation
* Max temperature 80°C
Conductor Specifications:
* Rated current 7.5A
* Stranding: 24 x 0.2mm
WH3049 - 10m Handy Pack
WH3053 - 30m Roll Pack
* PVC insulation
* Max temperature 80°C
Conductor Specifications:
* Rated current 7.5A
* Stranding: 24 x 0.2mm
WH3049 - 10m Handy Pack
WH3053 - 30m Roll Pack
Specifications
- Wire Category
- Hook up / power
- Retail Sales Unit
- Roll
- Roll Length
- 30m
- AWG
- 18
- Conductor Overall Diameter
- 1.9mm
- Core Material
- Tin Plated Copper
- DC current rating
- 7.5A
- Wire Category
- DC Power Cable
- AWG
- 18
- Outer Diameter
- 5.0mm
- Conductor Overall Diameter
- 1.9mm
- Number of Conductor Strands
- 24
- Core Material
- Tinned Copper
- Resistance per Linear Metre
- 0.021Ω
- Retail Sales Unit
- Roll
- Roll Length
- 30m
- Insulation Material
- PVC
- Width
- 5mm
- Height
- 3.2mm
- Packaged Dimensions
- 12.2 x 12.2 x 7.1 cm
