POWERTECH

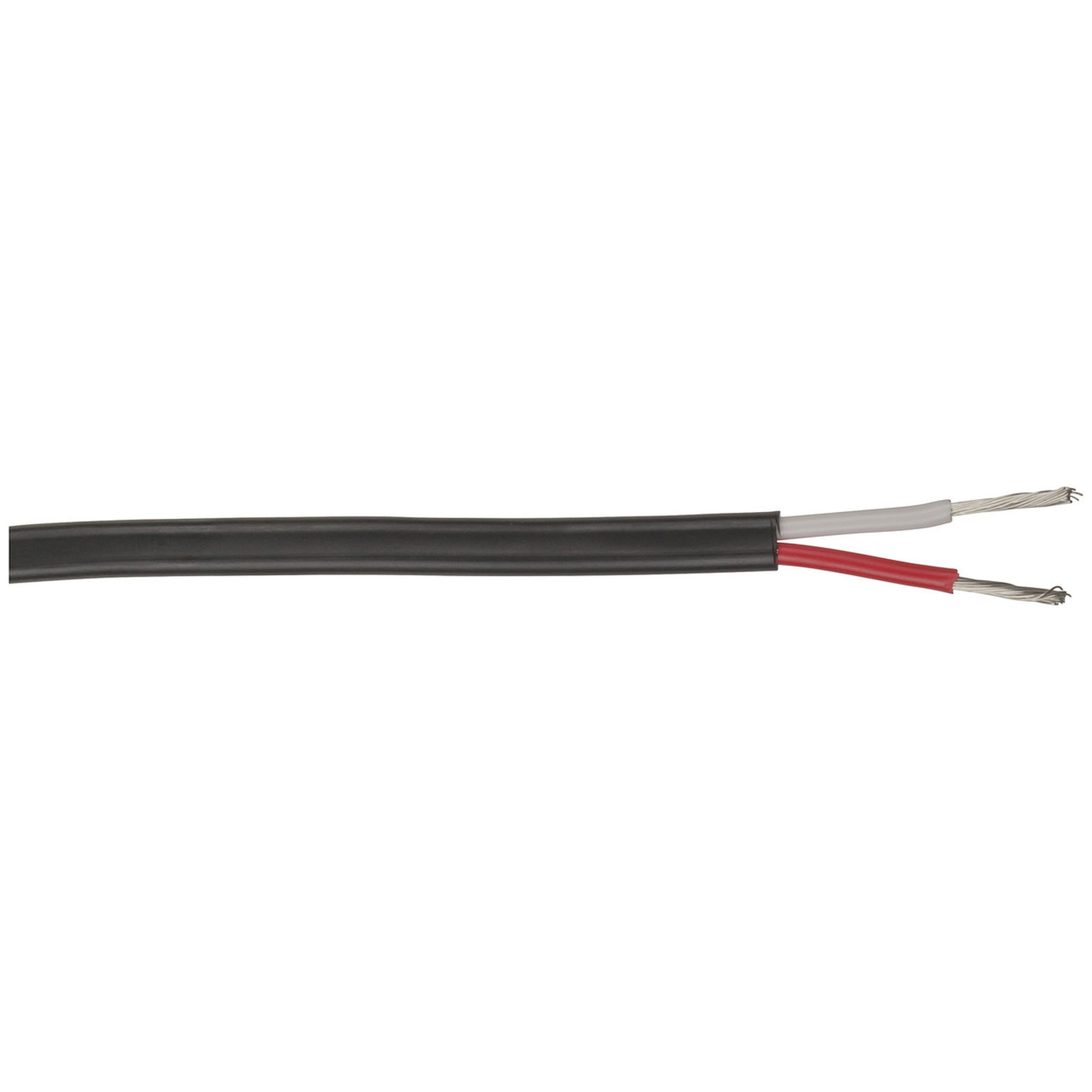

7.5A 2 Core Tinned DC Power Cable - Red White - Sold as 100m roll
- Cat No:
- WH3057
Sold as:Roll (100 Metre)
In Stock$2.50
Description
Double insulated 2 core power cable suitable for automotive and boating applications. Tinned copper cable suitable for use in marine applications.
• PVC insulation
• Max temperature 80°C
Conductor Specifications:
• Rated current 7.5A
• Stranding: 24 x 0.2mm
• PVC insulation
• Max temperature 80°C
Conductor Specifications:
• Rated current 7.5A
• Stranding: 24 x 0.2mm
Specifications
- Wire Category
- Hook up / power
- Retail Sales Unit
- Metre
- Roll Length
- 100.0m
- AWG
- 18.0
- Conductor Overall Diameter
- 1.9mm
- Core Material
- Tin Plated Copper
- DC current rating
- 7.5A
- Wire Category
- DC Power Cable
- AWG
- 18.0
- Outer Diameter
- 5.0mm
- Conductor Overall Diameter
- 1.9mm
- Number of Conductor Strands
- 24.0
- Core Material
- Tinned Copper
- Resistance per Linear Metre
- 0.021Ω
- Retail Sales Unit
- Metre
- Roll Length
- 100m
- Insulation Material
- PVC
- Width
- 5.0mm
- Height
- 3.2mm
- Packaged Dimensions
- 100.0cm(Length) x 0.5cm(Width) x 0.32cm(Height)
