POWERTECH

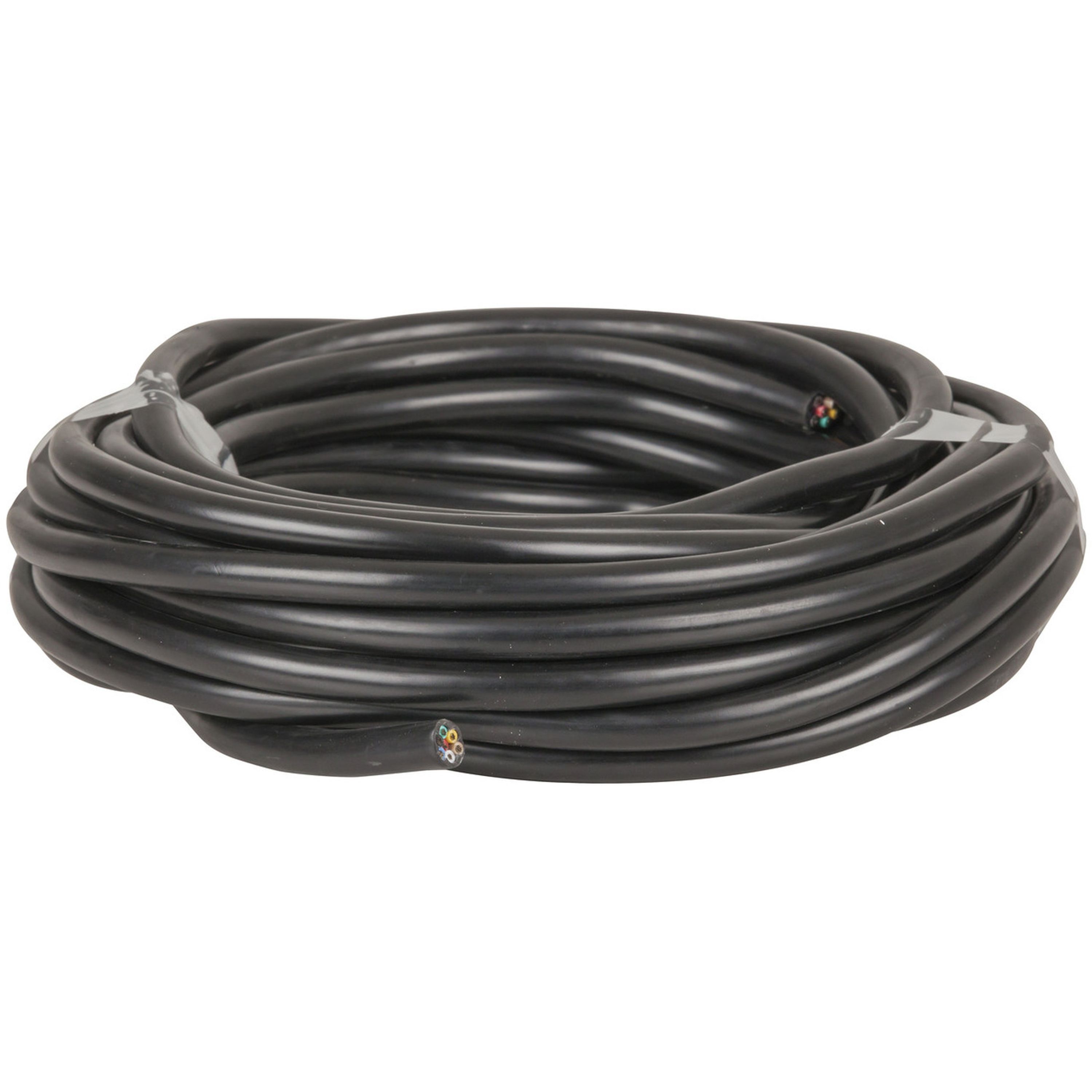

7 Core Trailer Wiring Loom - 10m Roll
- Cat No:
- WH3090
Sold as:1 Each
In Stock$46.95
Description
A 10 metre length of the standard 7 conductors sheathed in a tough black PVC jacket. Conductor colours are listed below. Makes wiring easy. 10mt accommodates even up to quite large boat trailers.
• Yellow (Left indicator)
• Black (Aux/reversing)
• White (Earth)
• Green (Right indicator)
• Blue (Electric brakes)
• Red (Stop light)
• Brown (Tail light, no. plate & clearance)
Features:
• No connectors fitted• Bare wire ends
Specifications
- Wire Category
- Hook up / power
- Retail Sales Unit
- Roll
- Roll Length
- 10.0m
- Outer Diameter
- 8.2mm
- Core Material
- Copper
- Number of Conductor Cores
- 7.0pc
- Colour
- Black
- DC current rating
- 5.0A
- Wire Category
- Mega High Power
- AWG
- 0.0
- Outer Diameter
- 15.0mm
- Conductor Overall Diameter
- 8.7mm
- Number of Conductor Strands
- 4655.0
- Core Material
- Tinned Copper
- Insulation Material
- PVC
- Resistance per Linear Metre
- 0.35 mΩ
- Retail Sales Unit
- Metre
- Roll Length
- 25m
- Cable length
- 10.0m
- Packaged Dimensions
- 12.2cm(Length) x 12.2cm(Width) x 8.8cm(Height)
