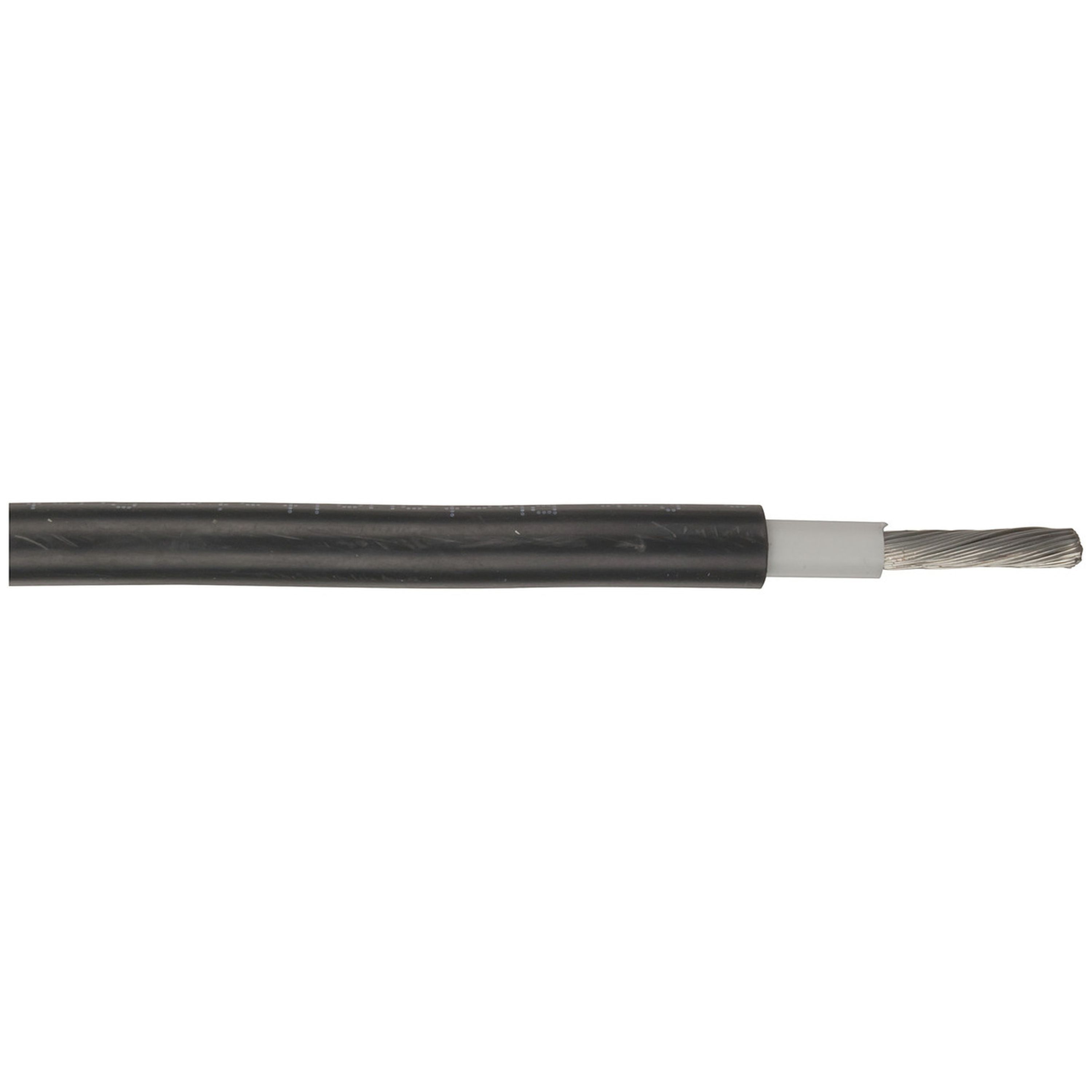

70A Solar Panel (PV) Power Cable - Sold as 100m roll
- Cat No:
- WH3122
Sold as:Roll (100 Metre)
In Stock$6.50
Description
Very tough cable, specifically for the rigours of outdoor use in solar panel installations. Dust, age and UV resistant, tinned copper conductors to minimise corrosion. Use with our PV connectors for complete environmental protection.
Features:
• Insulation material: Double Layer XLPE
• TUV certified
• Commonly referred to as 6mm solar cable
Specifications
- Wire Category
- Solar system cable
- Retail Sales Unit
- Metre
- Roll Length
- 100.0m
- Cross Sectional Area
- 5.7mm²
- Outer Diameter
- 7.1mm
- Conductor Overall Diameter
- 3.2mm
- Individual Conductor Strand Diameter
- 0.3mm
- Number of Conductor Strands
- 81.0pc
- Resistance per Linear Metre
- 3.52mΩ
- Core Material
- Tin Plated Copper
- UV Resistant Cable
- true
- Colour
- Black
- Alternates available
- false
- Operating Temperature
- -40.0°C-90.0°C
- DC Voltage
- 1000.0V
- DC current rating
- 70.0A
- Diameter
- 6.0mm
- Cable length
- 100.0m
- Packaged Dimensions
- 100.0cm(Length) x 0.6cm(Width) x 0.6cm(Height)
