POWERTECH

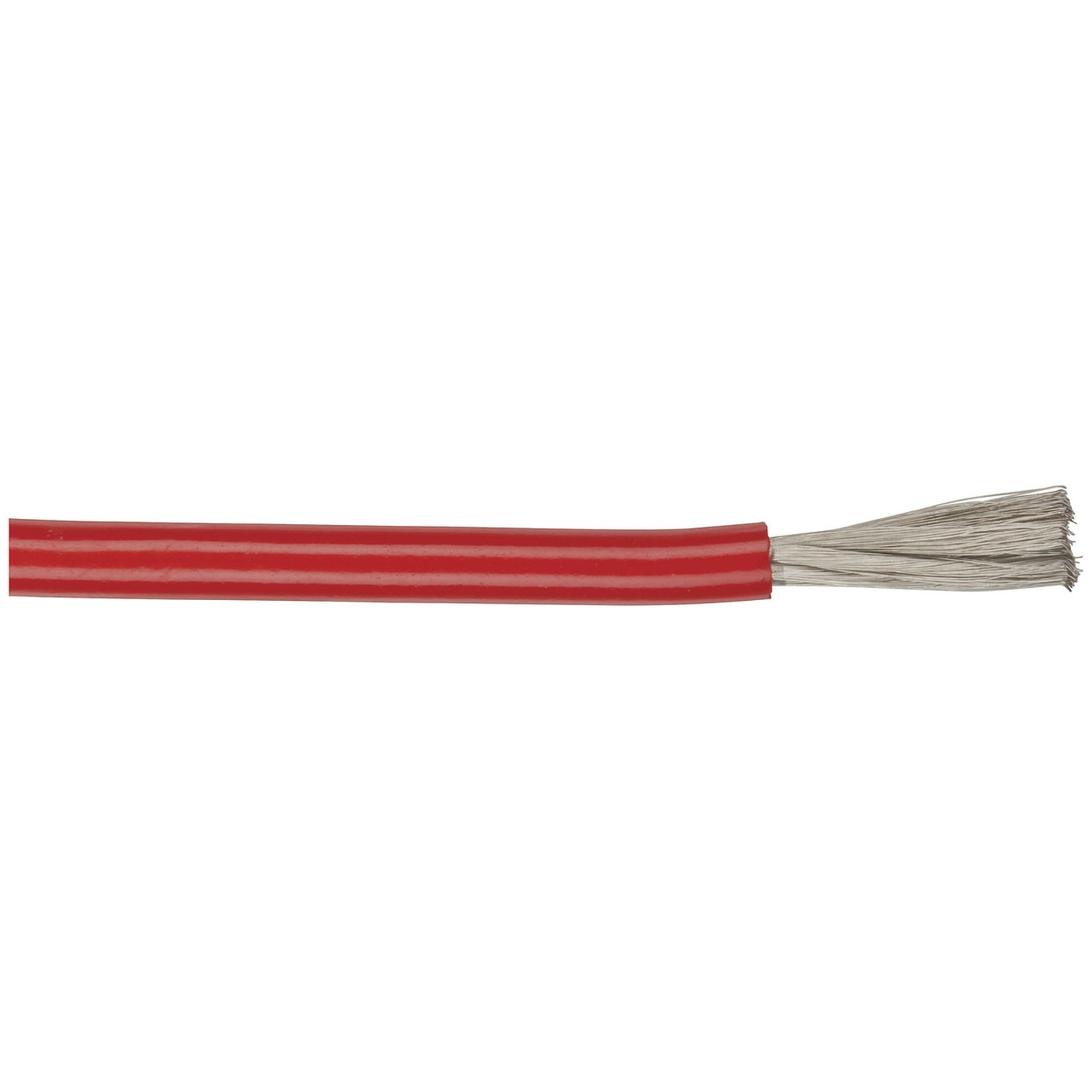

8 Gauge OFC High Current Power Cable - Red - Sold as 100m roll
- Cat No:
- WH3060
Sold as:Roll (100 Metre)
In Stock$7.95
Description
High current DC power cable for powering large loads in vehicles or vessels. Suitable for connecting audio systems, winches, large pumps, or connecting additional power circuits. Tinned to prevent corrosion.
Rated to DC56A Peak, 38A Constant
Specifications
- Wire Category
- Hook up / power
- Retail Sales Unit
- Metre
- Roll Length
- 100.0m
- AWG
- 8.0
- Cross Sectional Area
- 7.5mm²
- Outer Diameter
- 6.5mm
- Conductor Overall Diameter
- 4.05mm
- Individual Conductor Strand Diameter
- 0.12mm
- Number of Conductor Strands
- 665.0pc
- Strand Weave Configuration
- 7 x 95
- Resistance per Linear Metre
- 2.52mΩ
- Core Material
- Tin Plated Copper
- Number of Conductor Cores
- 1.0pc
- Colour
- Red
- DC current rating
- 56.0A
- Wire Category
- Power / Figure 8
- AWG
- 10.0
- Outer Diameter
- 5.5 x 11mm
- Conductor Overall Diameter
- 4.0mm
- Number of Conductor Strands
- 105.0
- Core Material
- Tinned Copper
- Resistance per Linear Metre
- 0.003Ω
- Retail Sales Unit
- Metre
- Roll Length
- 50m
- Insulation Material
- PVC
- Cable length
- 100.0m
- Packaged Dimensions
- 100.0cm(Length) x 0.405cm(Width) x 0.405cm(Height)
