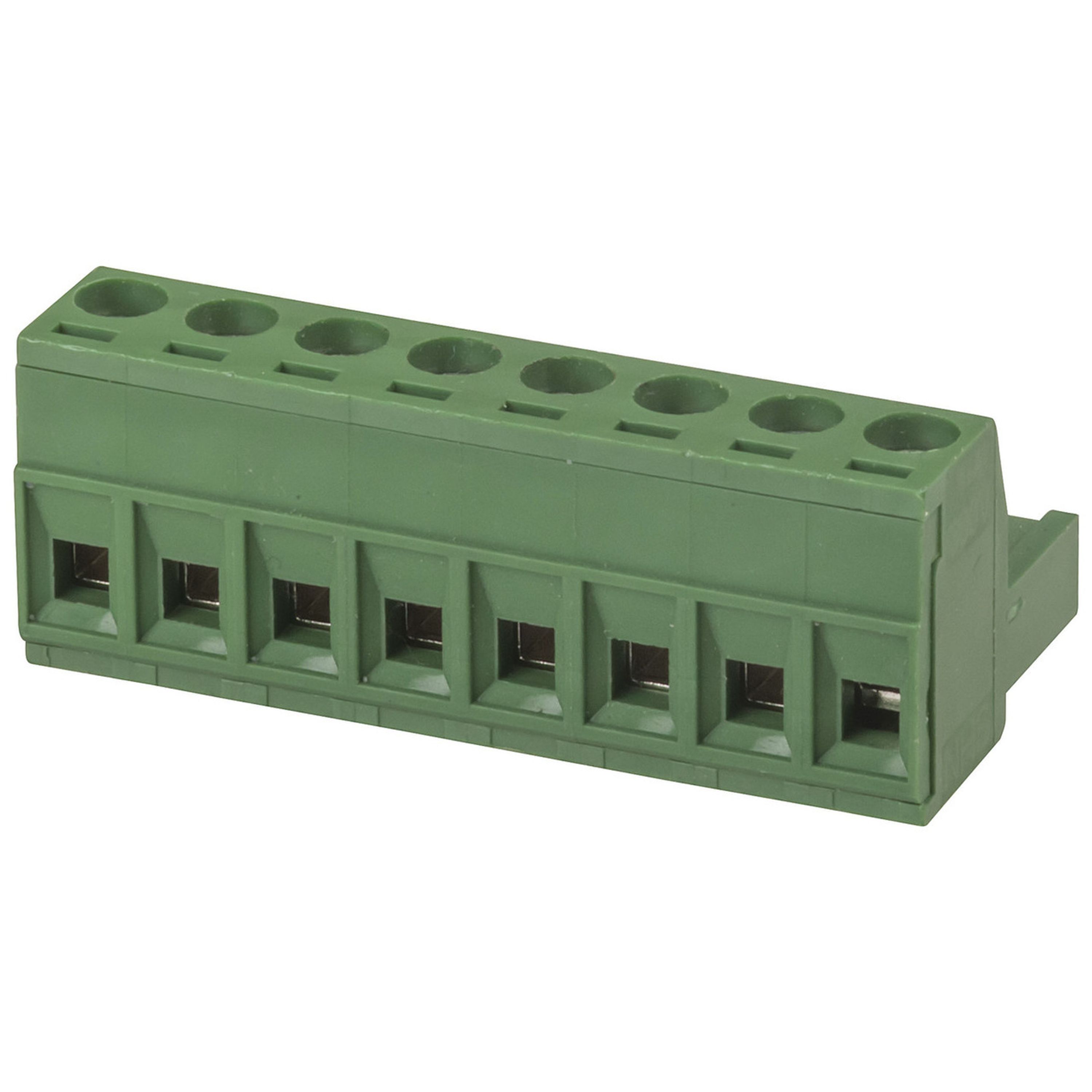

8 Pole PC Mount Pluggable Terminal Block Socket - 5.08mm
- Cat No:
- HM3128
In Stock
$8.95
Description
The plug version to suit the above headers - these terminal blocks are easily plugged in, and feature nickel- plated brass cage clamps, tin- plated phosphor- bronze contacts, M3 nickel- plated steel
screws...
- POLES 8
screws...
- POLES 8
Specifications
- Type
- Terminal Block
- Number of Contacts
- 8.0
- Body Material
- Polyamide 66
- Colour
- Green
- Terminal Spacing
- 5.08mm
- AC Voltage Rating
- 300V
- AC Current Rating
- 12A
- Device
- Pluggable
- Attachment Method
- Screw Term.
- Width
- 41.4mm
- Type
- Single Row Header
- Device
- Plug
- Attachment Method
- Crimp
- Number of Pins
- 1.0pc
- Pin Spacing
- 2.54mm (0.1")
- Packaged Dimensions
- 4.0cm(Length) x 15.0cm(Width) x 2.0cm(Height)
