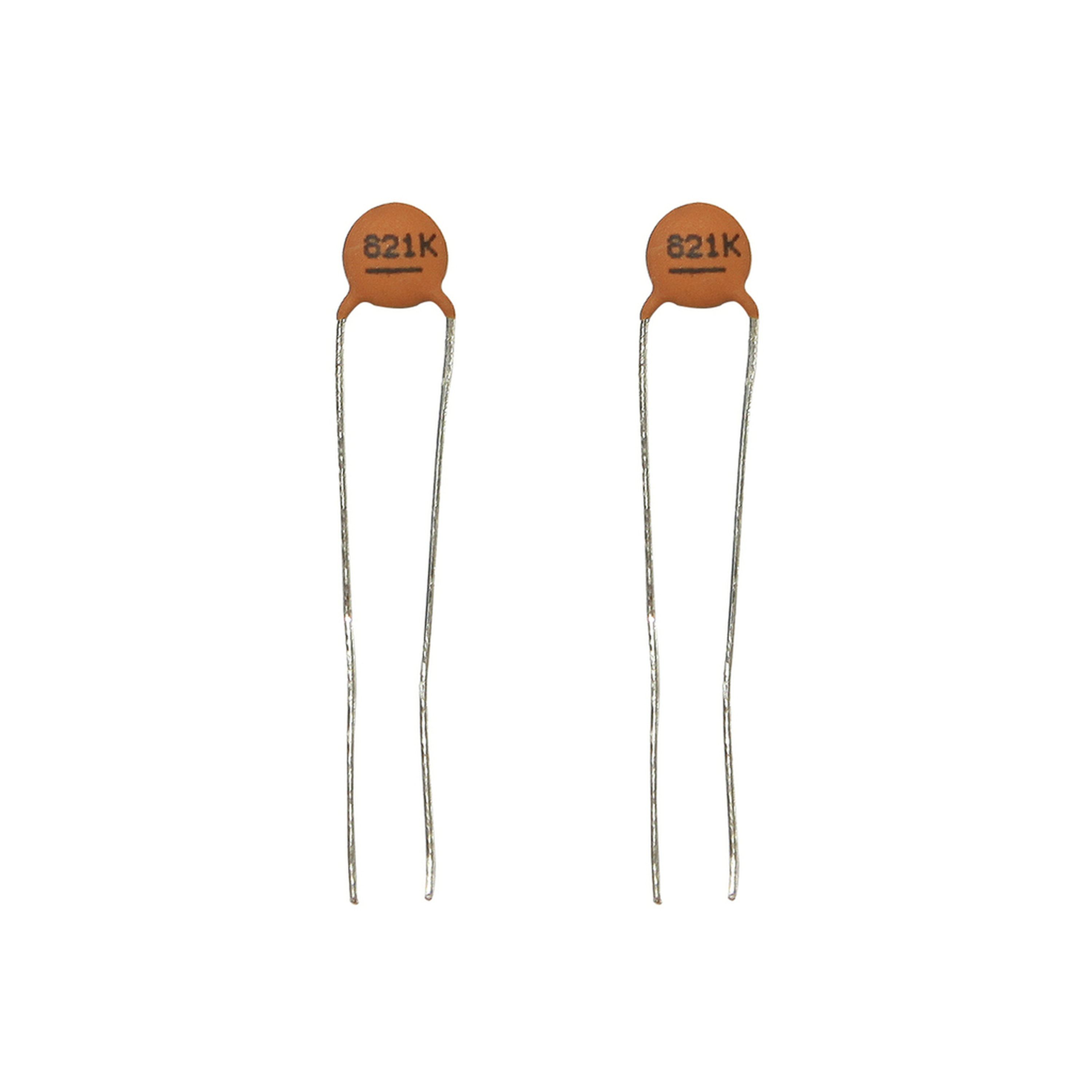

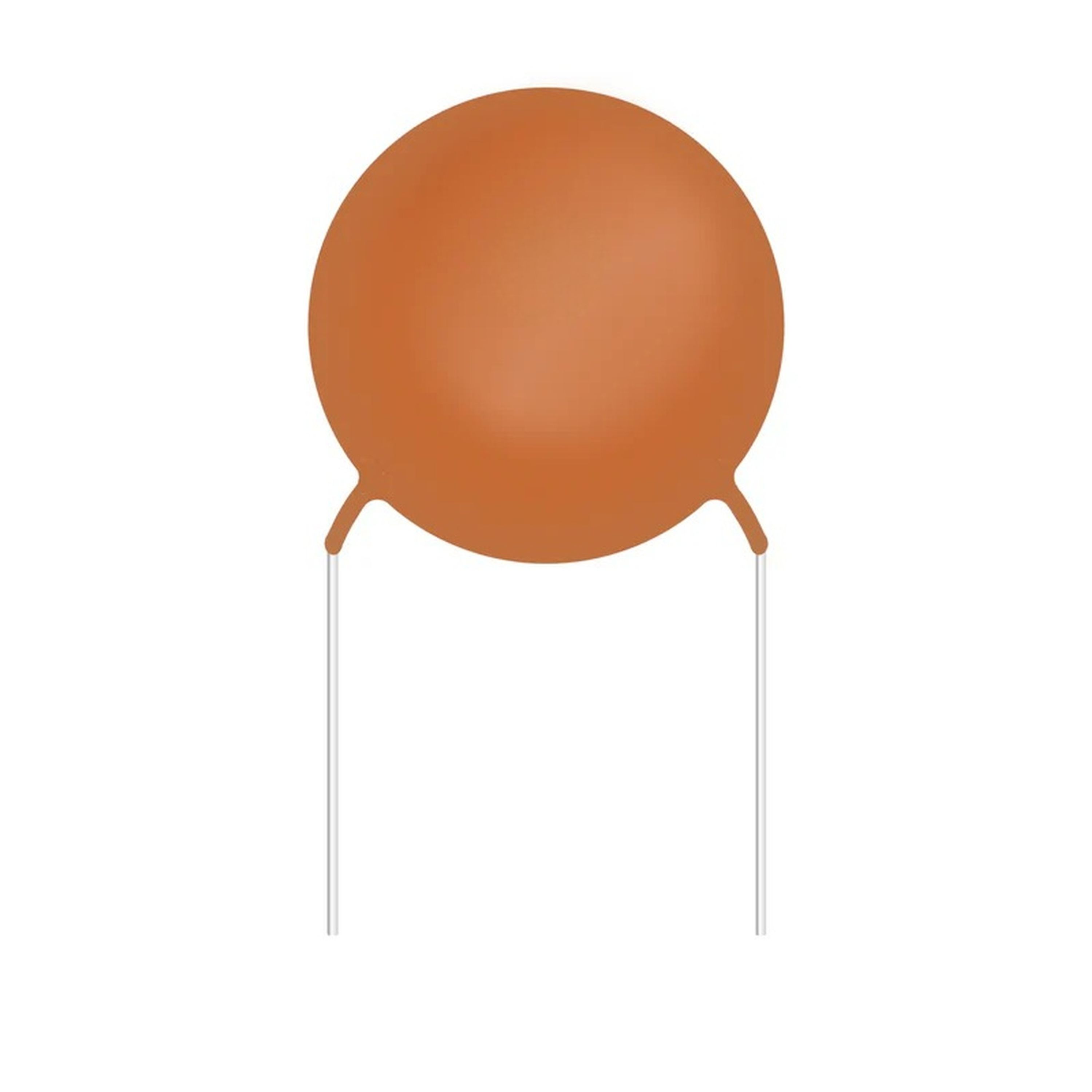

820pF 50VDC Ceramic Capacitors - Pack of 2
- Cat No:
- RC5335
In Stock
$0.45
Description
A ceramic capactior is a fixed-value capactior in which ceramic material acts as the dielectric. It is constructed of two or more alternating layers of ceramic and a metal layer acting as the electrodes. The composition of the ceramic material defines the electrical behavior and therefore applications. Ceramic capacitors can be used as a general purpose capacitor, since they are not polarized and are available in a lare variety of capacitances, voltage ratings and sizes.
Specifications
- Capacitor type
- Ceramic
- Pitch
- 5mm
- Component Type
- Ceramic Capacitor
- Passive mount type
- Through Hole
- Pack Quantity
- 2pc
- Passive connector type
- Solder Legs
- Component package
- Disc
- Passive number of legs
- 2 count
- Passive marking code
- Number code
- DC Voltage
- 50V
- Item capacitance
- 820pF
- Capacitance tolerance
- 10%
- Packaged Dimensions
- 5 x 5 x 0.2 cm
