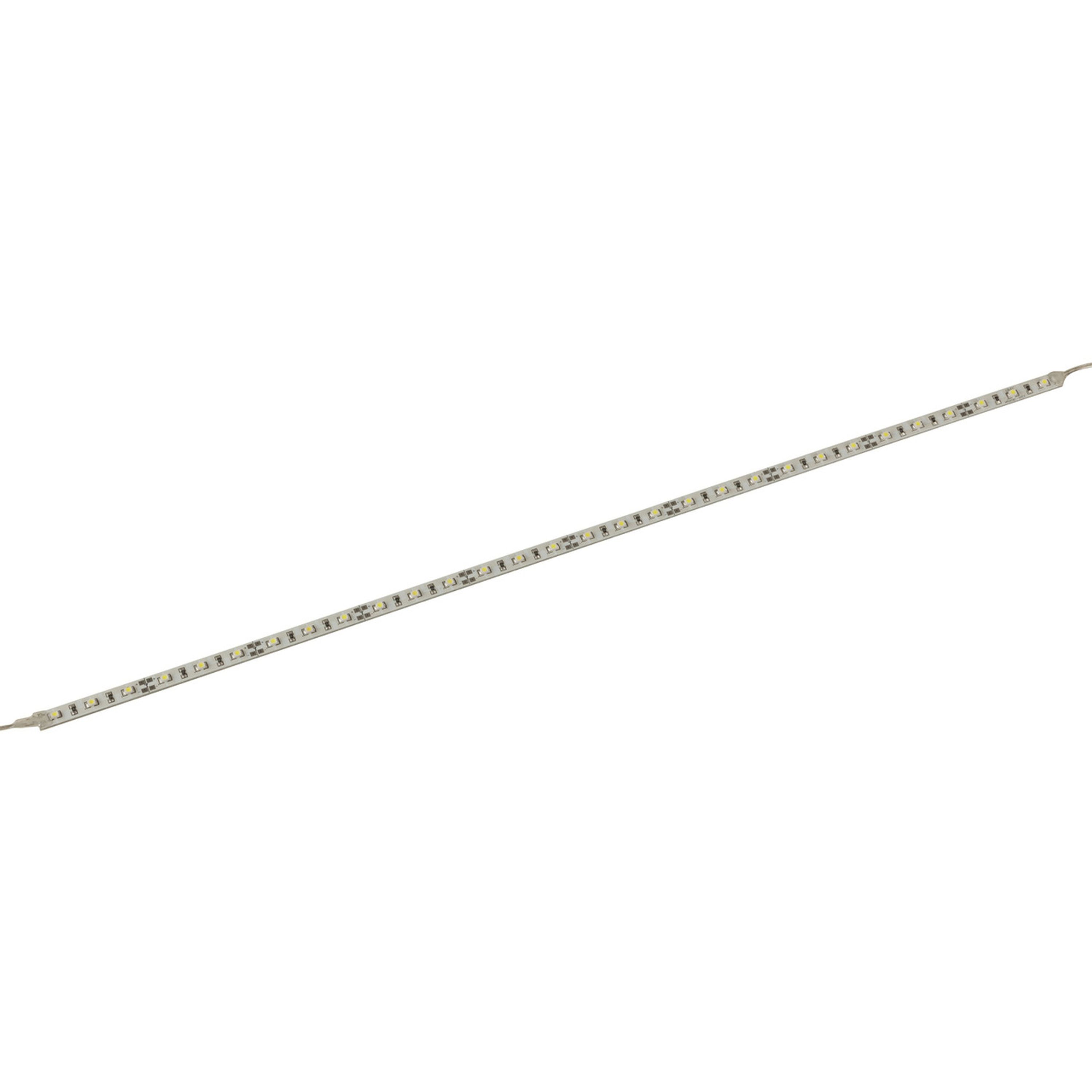

8mm White LED Solid Strip Light, 12V
- Cat No:
- ZD0461
Sold as:1 Each
In Stock$14.95
Description
An efficient, bright and affordable LED lighting solution, which is safe and easy to install. Each strip features wide angle, high brightness SMD LEDs which are powered by either 12VDC. They are fixed easily using the strong 3M brand self adhesive backing tape or mounted into a range of aluminium and plastic extrusions and diffusers available separately. Each 500mm length can be snapped into individual segments and each segment is powered by 12VDC. Applications include under cabinet kitchen bench lighting, hallway or mood lighting, marine/caravan/motorhome lighting, commercial strip lighting, retail shop fit outs, and many many more.
Features:
• 8mm strips fitted with 3528 single chip SMD LEDs
• Strips can be snapped into individual segments and powered individually
• Strips can be integrated with our aluminium and plastic extrusions and diffusers
Specifications
LED quantity per strip 30
No. of Segments 10
LED Quantity /Segment 3
Power Consumption per segment 0.24W
Max. no of strips to one power feed 10
Lumen output per strip 150
mCd per LED 2000mCd
IP Rating None
Features:
• 8mm strips fitted with 3528 single chip SMD LEDs
• Strips can be snapped into individual segments and powered individually
• Strips can be integrated with our aluminium and plastic extrusions and diffusers
Specifications
LED quantity per strip 30
No. of Segments 10
LED Quantity /Segment 3
Power Consumption per segment 0.24W
Max. no of strips to one power feed 10
Lumen output per strip 150
mCd per LED 2000mCd
IP Rating None
Specifications
- LED Type
- 3528 SMD
- LED Quantity
- 30.0pc
- Illuminated Colour
- White
- Beam spread
- 120.0°,120.0°
- Lumens
- 150.0lm
- DC Voltage
- 12.0V,12.0V
- DC Current Draw
- 200.0mA,200.0mA
- LED Type
- 3528 SMD
- Intensity
- 2.0mcd
- Length
- 500.0mm
- Width
- 8.0mm
- Packaged Dimensions
- 54.0cm(Length) x 1.8cm(Width) x 1.3cm(Height)
