90W Universal Auto-Switching Laptop Power Supply

Cat No:
MP3326
Sold as:1 Each
In Stock

$109.00

Description

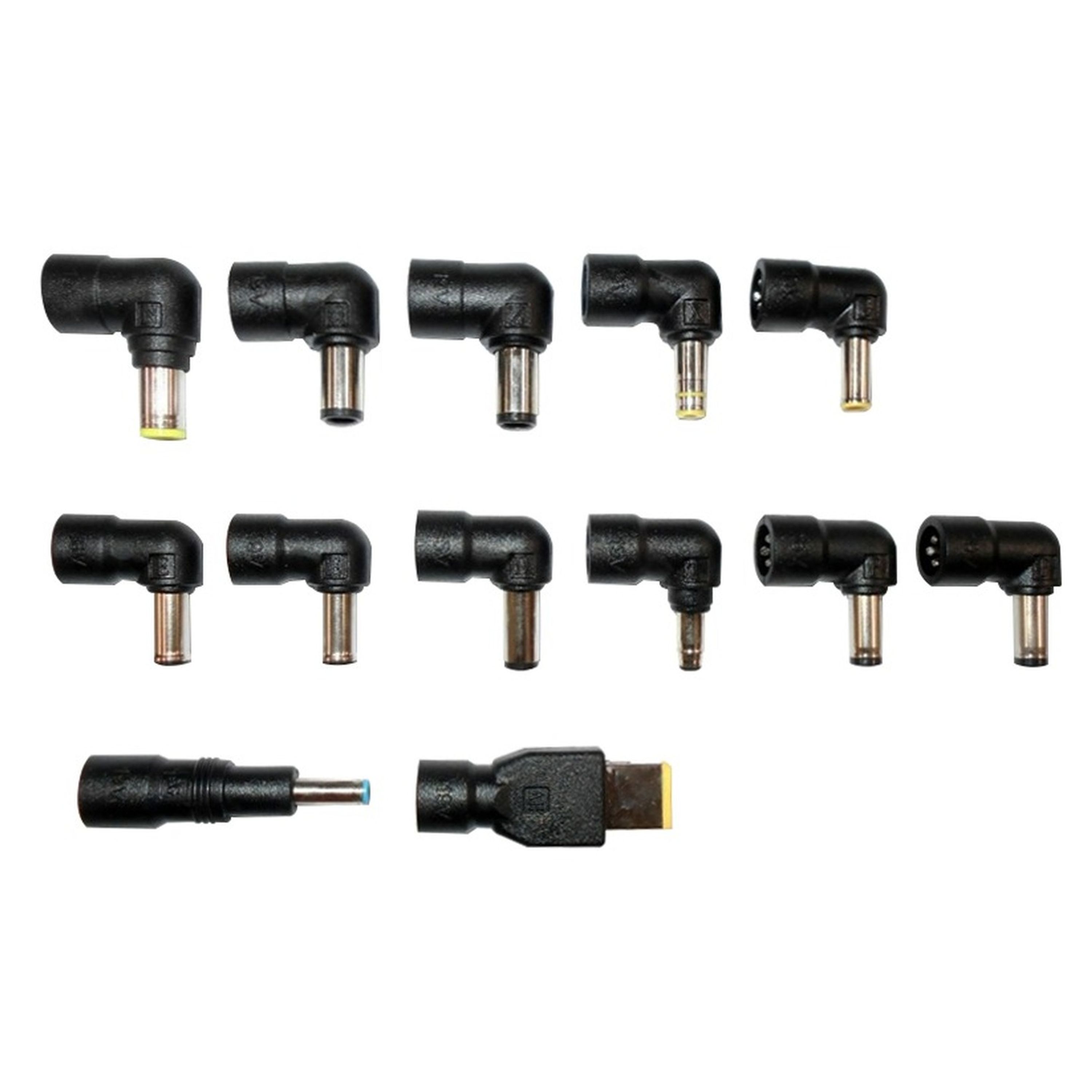

Auto-switching voltage with overload and shortcircuit protection this regulated laptop power supply is compatible with most laptops on the market. The unit features a discrete LCD to show the operating voltage and a USB port for charging your phone or mp3 player. It's supplied with 11 different connectors, including the latest special Dell and HP connectors. Black piano finish for complete awesomeness. Suits most laptops up to 15 screen size.


Outputs:
15/16VDC, 4.74A
19VDC, 4.2A
5VDC, 2.1A (USB Power)

Connector D:
15V, 3.0x6.3mm
Suits: Toshiba

Connector E:
16V, 1.4x6.5mm
Suits: Fujitsu, Sony

Connector E:
19V, 1.4x6.5mm
Suits: Sony

Connector G:
19V, 1.0(pin)x5.0mm
Suits: Samsung

Connector N:
19V, 0.9(pin)x7.9mm
Suits: IBM

Connector P:
16V, 2.5x5.5mm
Suits: IBM, Lenovo

Connector P:
19V, 2.5x5.5mm
Suits: Acer, Compaq, Dell, Fujitsu, Gateway, HP, Toshiba

Connector Q:
19V, 0.6(pin)x7.4mm
Suits: Compaq, HP

Connector T:
19V, 1.7x4.75mm
Suits: Compaq, HP

Connector X:
19V, 1.7x5.5mm
Suits: Acer

Connector Z:
19V, 0.6(pin)x7.4mm
Suits: Dell

Connector AG:
19V, 0.6(pin)x4.5mm
Suits: HP

Connector AH:
19V, Rectangular
Suits: Lenovo

Specifications

Mains Voltage Range
100.0V,240.0V
Rated for AU Mains
true
Rated for US Mains
true
Auto-select mains voltage
false
Mains lead included
true
Suitable For
Laptop
Voltage Display
true
Voltage Selection
Automatic via plug
Number of plugs or sockets
11.0pc
Plugs to Suit
Hewlett Packard,Toshiba,Dell,Sony,Samsung
Includes USB Charge Port
true
USB Port Current
2.1A
Connection Type
Multi Plug
DC Voltage
15.0V,16.0V,19.0V
DC current rating
4.74A
Continuous Power
90.0W
Length
126.0mm
Width
55.0mm
Height
31.0mm
Packaged Dimensions
20.5cm(Length) x 13.5cm(Width) x 5.1cm(Height)
