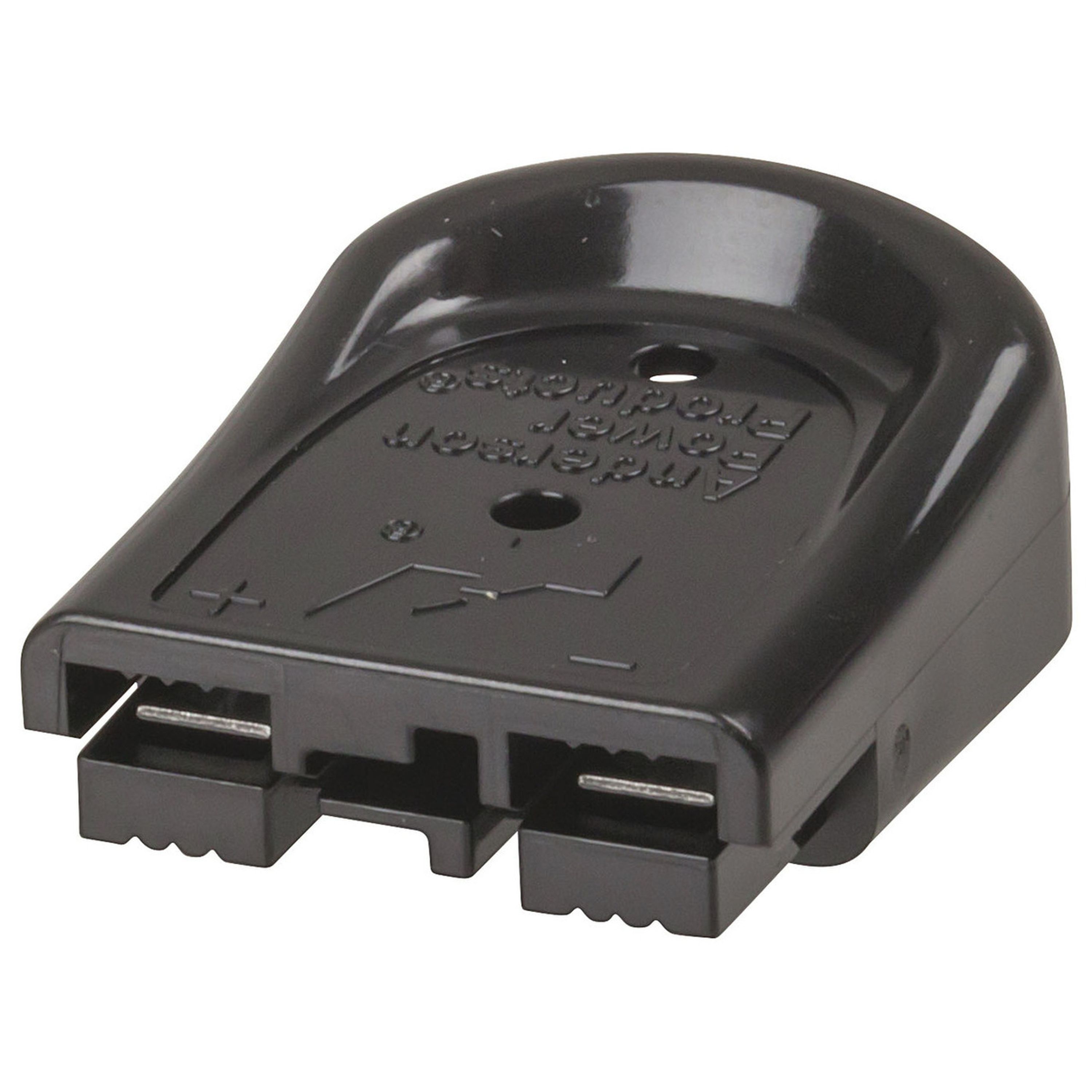

Anderson 35A SBS Mini Connector - Black
- Cat No:
- PT4480
Stock due soon
$7.95
Description
Compact and ergonomic, these high-current connectors protect against accidental contact with dangerous DC circuits. Inline and wire-to-wire configurations allow for one connector to meet multiple needs. The mini connector features touch-safe polycarbonate housing and two finger proof positions. Contact pins fitted in Australia to ensure the highest quality connection. Available in black, red and grey.
Features:
• Anderson’s smallest SBS connector
• Touch-safe housing
• Contact Rating: 10AWG 35A
• Contact Wire Size: 0.75 to 4.0mm²
• Max Wire Outer Diameter: 4.65mm
• Contact Retention Force: 9kg (20lbs) minimum
Specifications
- Operating Temperature
- -20°C - 105°C
- Plug or Socket Type
- Anderson 35A 2 Pole
- Device
- Plug
- Attachment Method
- Crimp
- Pack Quantity
- 1pc
- Contacts / Pins
- 2pc
- Case Material
- ABS Plastic (Acrylonitrile Butadiene Styrene)
- Contact Material
- Plated Metal
- Locking Function
- Locking Screw
- Cable Entry Diameter
- 4.65mm, 4.65mm
- Colour Coded
- Black
- AC Voltage rating
- 600V
- DC Voltage
- 600V
- DC current rating
- 35A
- Length
- 30mm
- Width
- 23mm
- Height
- 10mm
- Packaged Dimensions
- 3 x 1.2 x 2.2 cm
