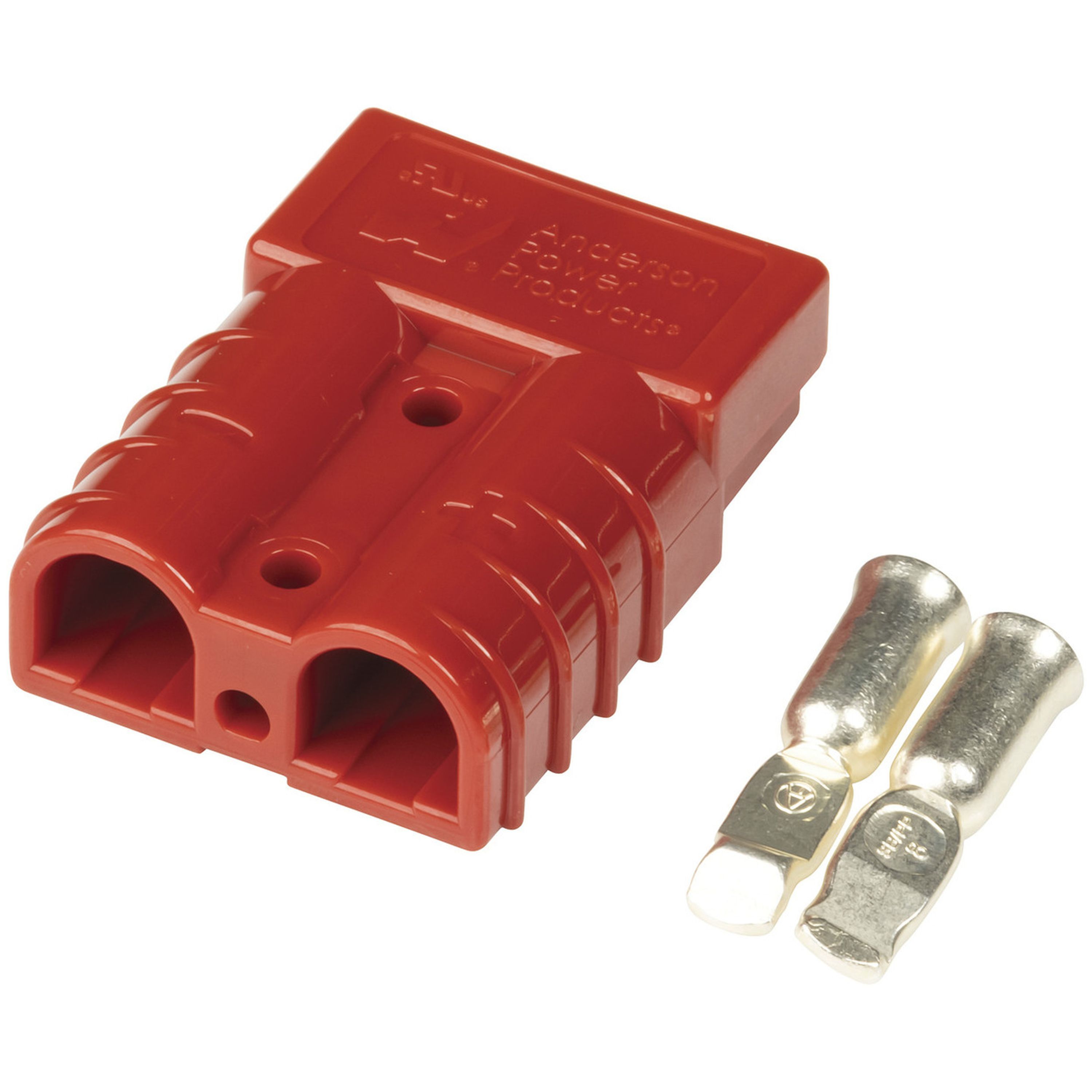

Anderson 50A Power Connector 8 Gauge Contacts - Red
- Cat No:
- PT4426
Sold as:1 Each
Out of Stock$9.95
Description
Used widely in both domestic and industry, you'll find this connector in many 4WD applications, boating, automotive and other industries. Supplied as a moulded 2 pole with contacts.
Features:
• Contact Wire Size: 8.4mm2 (8 AWG)
• Max Wire Insulation Diameter: 11mm
• Contact Retention Force: 22kg
Note: this connector is keyed to work with other Red connectors
Specifications
- Operating Temperature
- -20.0°C-105.0°C
- Plug or Socket Type
- Anderson 50A 2 Pole
- Attachment Method
- Crimp
- Pack Quantity
- 1.0pc
- Contacts / Pins
- 2.0pc
- Case Material
- Plastic
- Colour Coded
- Red
- Device Type
- Mains Socket
- Plug or Socket Type
- AU/NZ 3-Pin Socket (IP66)
- Contacts / Pins
- 3-Pin
- Attachment Method
- Screw
- Case Material
- Plastic
- Contact Material
- Brass
- Cable Entry Diameter
- 12mm
- Colour Coded
- Yes (Grey)
- Packaged Dimensions
- 5.0cm(Length) x 3.6cm(Width) x 1.8cm(Height)
