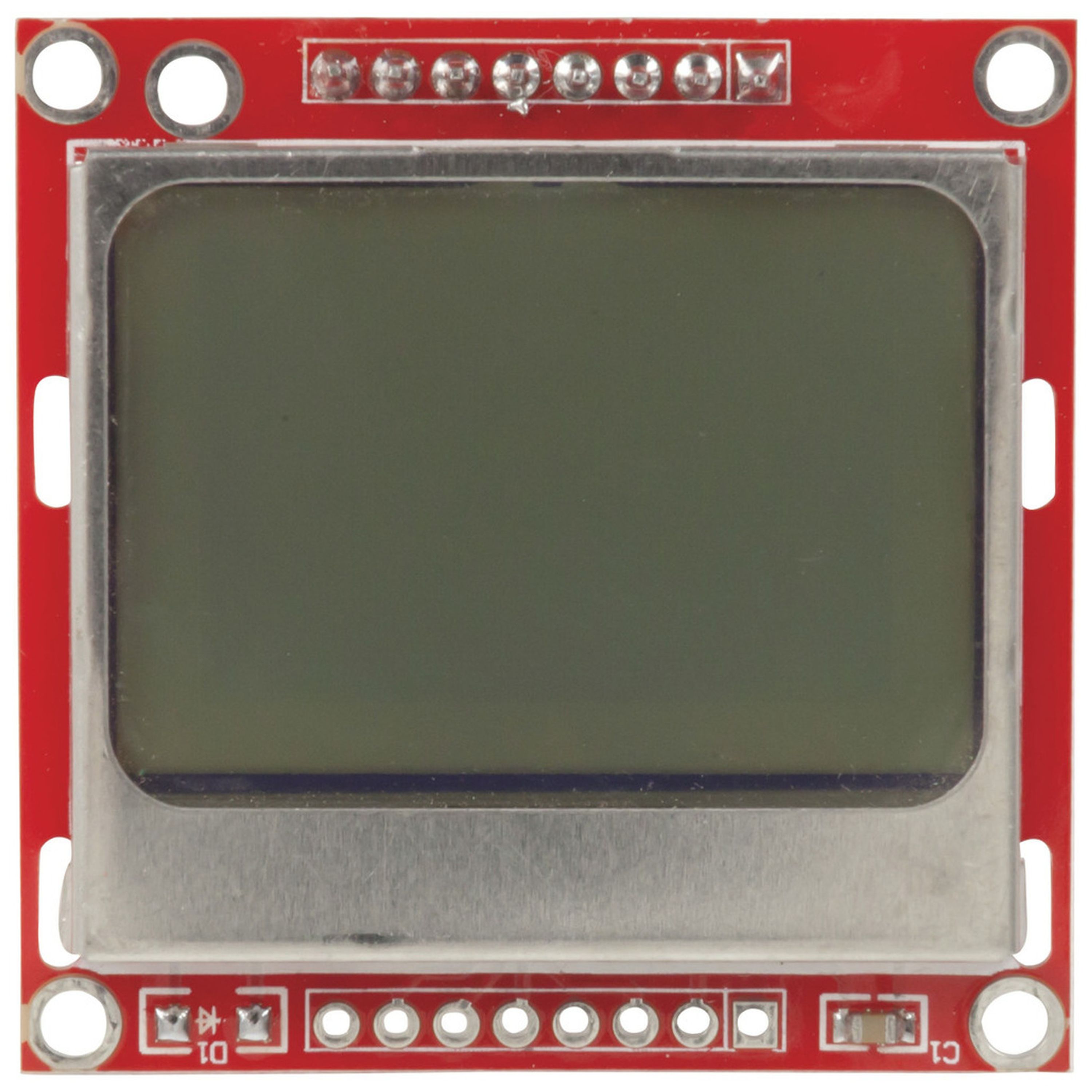

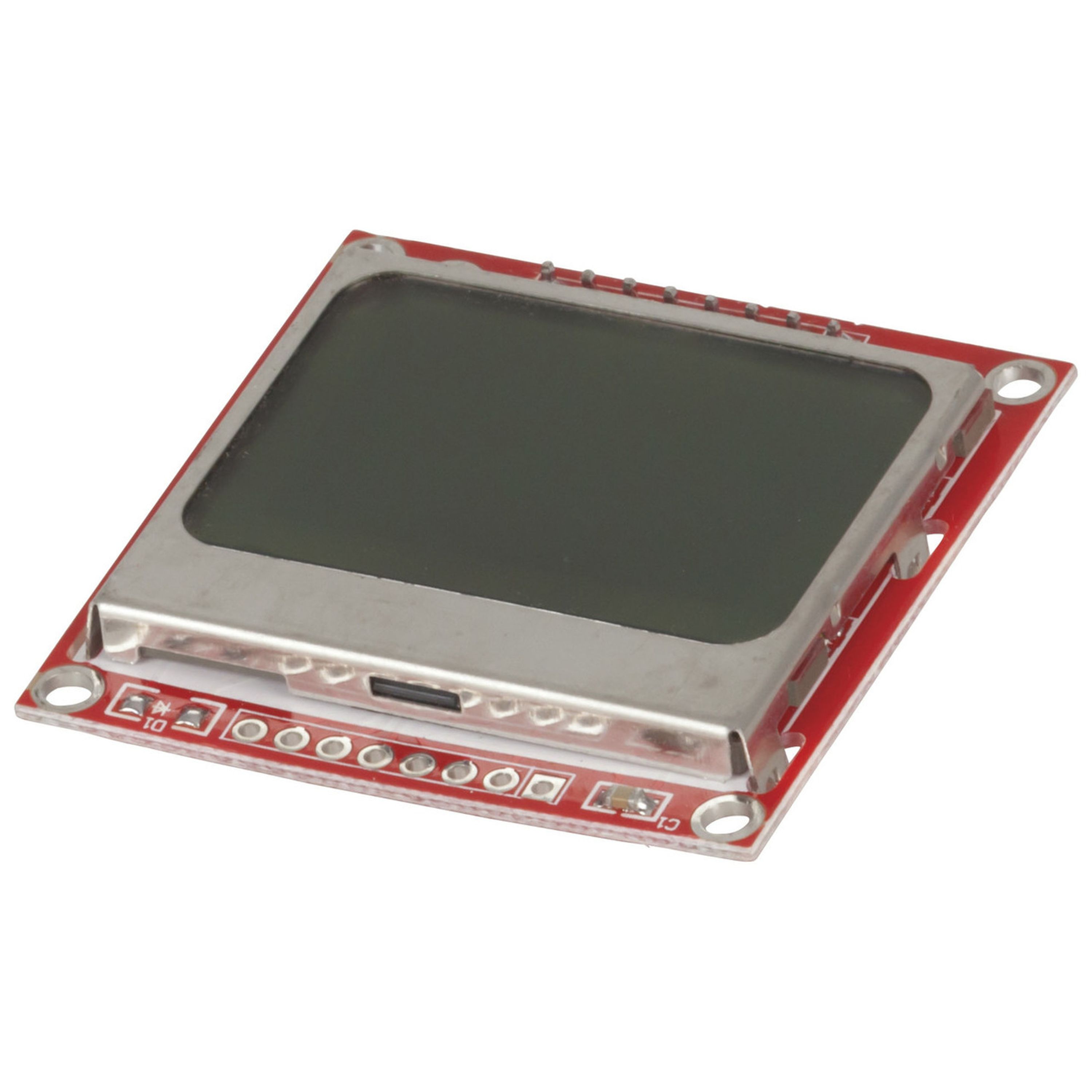

Arduino Compatible 84x48 Dot Matrix LCD Display Module
- Cat No:
- XC4616
Sold as:1 Each
Out of Stock$22.95
Description
These compact LCD displays are identical to those found in some old Nokia phones, and feature the PCD8544 chipset. An easy way to a small black and white graphics display to your project.
Features:
• 8 pin plug
• SPI interface
• Four mounting holes
• Needs 10k resistors for IO pins if running off 5V
Specifications
- Required Supply Voltage
- 3.3V,5.0V
- Length
- 44.0mm
- Width
- 44.0mm
- Height
- 13.0mm
- Packaged Dimensions
- 9.9cm(Length) x 9.9cm(Width) x 2.3cm(Height)
