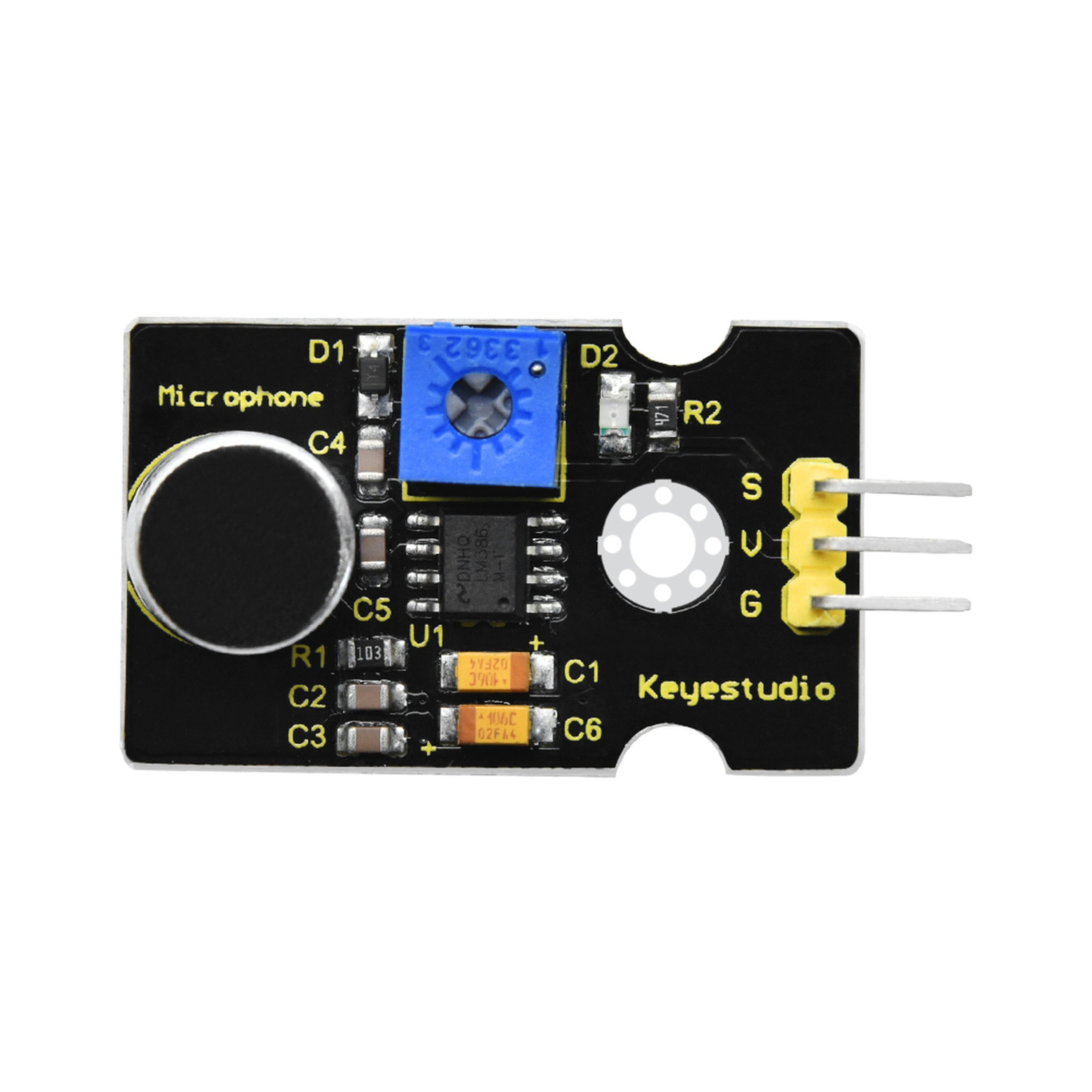

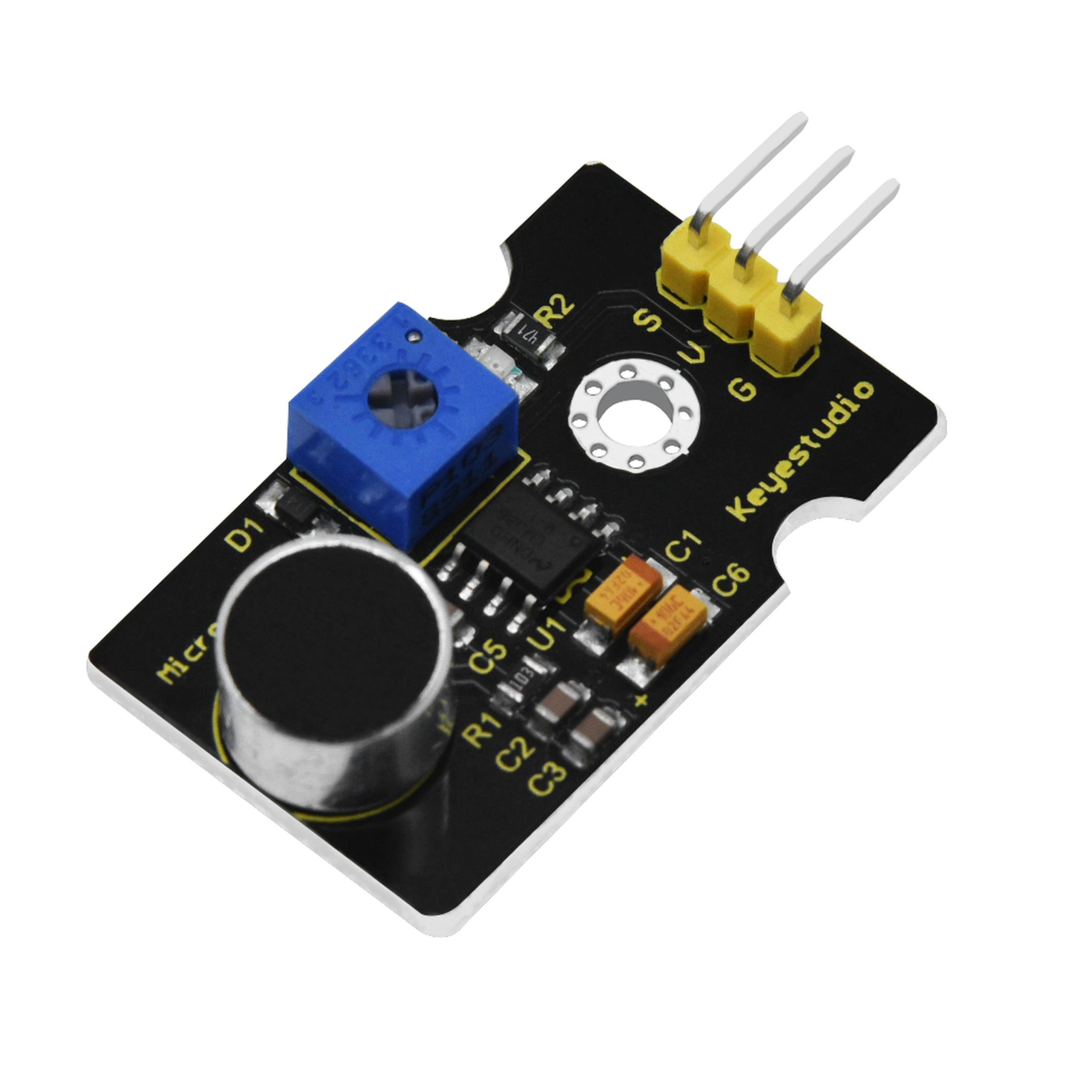

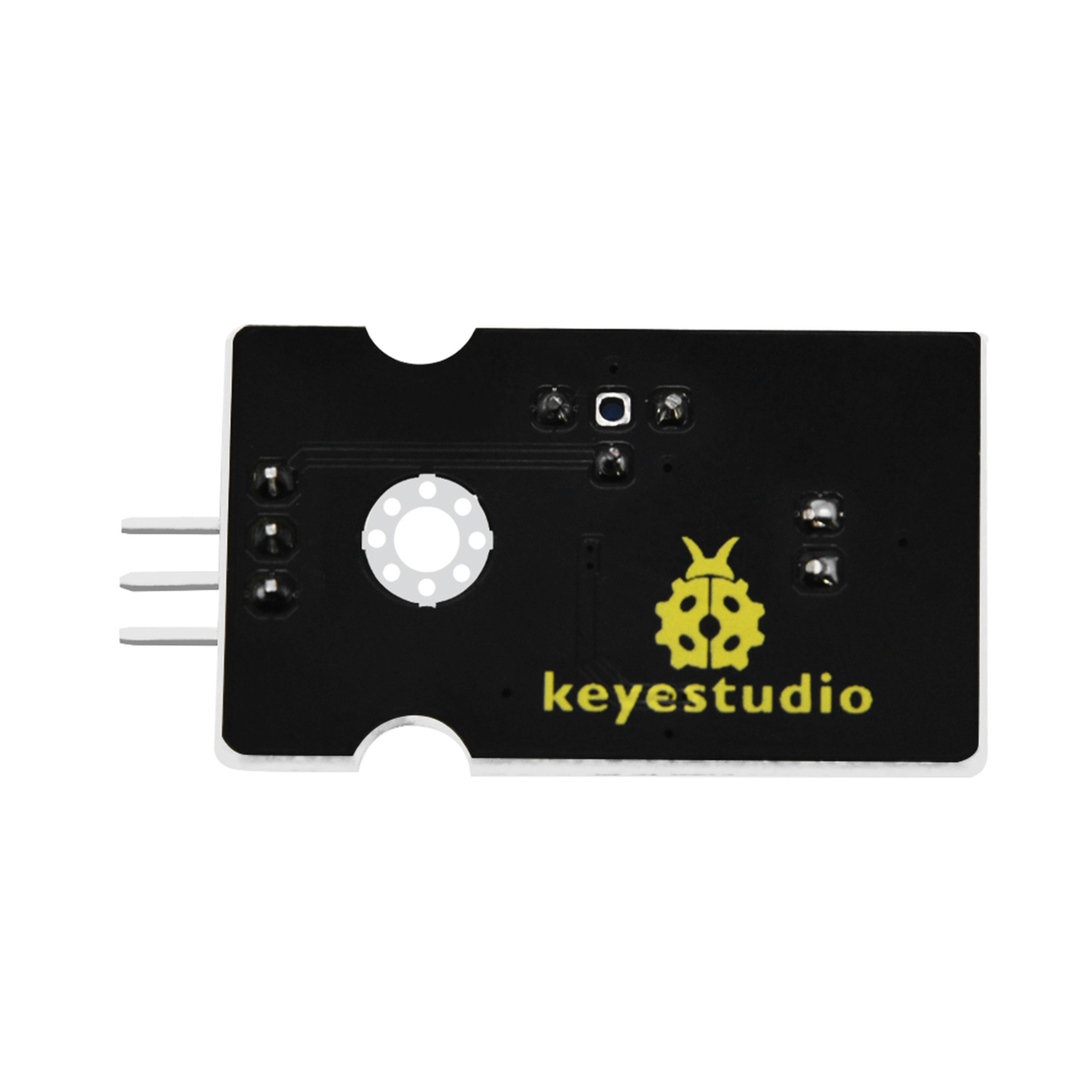

Arduino Compatible Microphone Sound Sensor Module
- Cat No:
- XC4438
- MPN:
- KS0035
In Stock
$4.95
Description
The keyestudio microphone sensor is typically used in detecting the loudness in ambient environment. The Arduino can collect its output signal by analog input interface.
The S pin is analog output, that is voltage signal real-time output of microphone. The sensor comes with a potentiometer, so that you can turn it to adjust the signal gain.
It also has a fixed hole so that you can mount the sensor on any other devices. You can use it to make some interactive works, such as a voice operated switch.
Specification
- Operating voltage: 3.3V-5V（DC）
- Operating current: <10mA
- Interface：3PIN
- Output signal: Analog
MOre information available at: KS0035 Microphone Sound Sensor with Potentiometer - Keyestudio Wiki
Specifications
- Required Supply Voltage
- 3.3V,5.0V
- Length
- 43.0mm
- Width
- 16.0mm
- Height
- 13.0mm
- Packaged Dimensions
- 7.9cm(Length) x 5.9cm(Width) x 1.1cm(Height)
